RZN147-TRMDE (1997)
Toyota Hilux

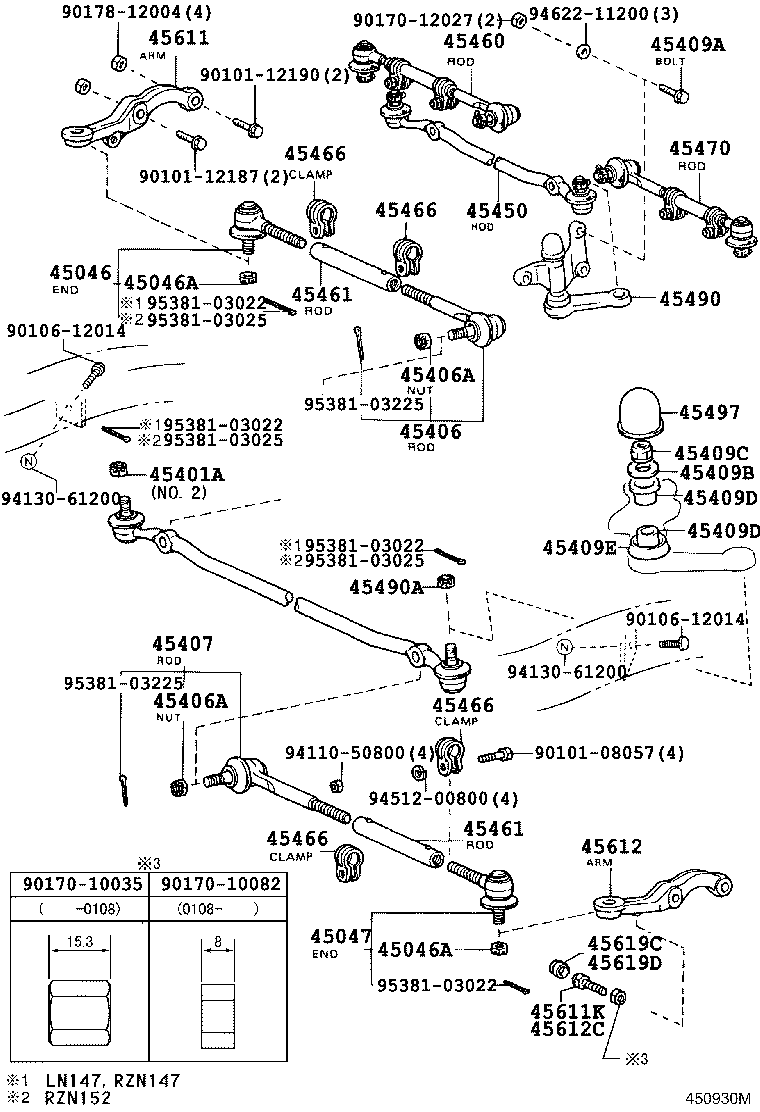

ILLUST NO. 1 OF 3(9708- )LN147,RZN147,152
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39375 |
LN147,RZN147,152 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
RZN147,152,169,174 |
2 | ||
| 90171-14042 |
LN147,167,172,RZN147,152,169,174 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
RZN147,152,169,174 |
2 | ||
| 90171-14042 |
LN147,167,172,RZN147,152,169,174 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39375 |
LN147,RZN147,152 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
RZN147,152,169,174 NO.2 |
1 | ||
| 90171-14042 |
LN147,167,172,RZN147,152,169,174 NO.2 |
1 | ||
| 90170-22058 |
RZN147,152,169,174 NO.1 |
1 | ||
| 90170-22058 |
LN147,167,172,RZN147,152,169,174 NO.1 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39115 |
LN147,RZN147,152 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LN147,RZN147,152 |
2 | ||
| 90171-14042 |
RZN147,152 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LN147,RZN147,152 |
2 | ||
| 90171-14042 |
RZN147,152 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39115 |
LN147,RZN147,152 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12153 |
LN147,RZN147,152 *12−1.25PX35−26 |
1 | ||
| 90101-12152 |
LN147,RZN147,152 *12−1.25PX95−25 |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 90201-14010 |
RZN147,152,169,174 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
LN147,RZN147,152 |
1 | ||
| 94184-61400 |
RZN147,152 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
LN147,RZN147,152 |
2 | ||
| 90386-18002 |
RZN147,152 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
LN147,RZN147,152 |
2 | ||
| 90386-18002 |
RZN147,152 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 90304-31012 |
RZN147,152,169,174 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39245 |
LN147,RZN147,152 |
1 | ||
| 45450-39295 |
LN147,RZN147,152 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39485 |
LN147,RZN147,152 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35060 |
RZN147,152 |
2 | ||
| 45465-35060 |
LN147,RZN147,152 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35060 |
RZN147,152 |
2 | ||
| 45465-35060 |
LN147,RZN147,152 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RZN147,152,169,174 |
4 | ||
| 45466-30020 |
LN147,167,172,RZN147,152,169,174 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RZN147,152,169,174 |
4 | ||
| 45466-30020 |
LN147,167,172,RZN147,152,169,174 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RZN147,152,169,174 |
4 | ||
| 45466-30020 |
LN147,167,172,RZN147,152,169,174 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RZN147,152,169,174 |
4 | ||
| 45466-30020 |
LN147,167,172,RZN147,152,169,174 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39485 |
LN147,RZN147,152 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39305 |
LN147,RZN147,152 |
1 | ||
| 45490-39465 |
LN147,RZN147,152 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 90171-12028 |
RZN147,152,169,174 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 45497-28010 |
RZN147,152,169,174 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35230 |
LN147,RZN147,152 |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-10032 |
LN147,RZN147 |
1 | ||
| 90106-10003 |
LN147,RZN147,152 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35250 |
LN147,RZN147,152 |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-10003 |
LN147,RZN147,152 |
1 | ||
| 90106-10032 |
LN147,RZN147 |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-35030 |
LN147,RZN147,152 |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-35030 |
LN147,RZN147,152 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90101-12187 | ||||
| 90101-12190 | ||||
| 90106-12014 | ||||
| 90170-10035 | ||||
| 90170-10082 | ||||
| 90170-12027 | ||||
| 90178-12004 | ||||
| 94110-50800 | ||||
| 94130-61200 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
| 95381-03025 | ||||
| 95381-03225 | ||||
ILLUST NO. 3 OF 3(9708- )LN147,RZN147,152
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35190 |
LN147,RZN147,152 |
1 | ||
| 44107-35190 |
RZN147,152 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
RZN147,152 |
2 | ||
| 90364-32003 |
LN147,RZN147,152 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
RZN147,152 |
2 | ||
| 90364-32003 |
LN147,RZN147,152 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN147,RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-65145 |
RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-33002 |
RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 90301-33002 |
LN147,RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 96711-19010 |
RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
LN147,167,172,RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN147,RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-65145 |
RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-33002 |
RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 90301-33002 |
LN147,RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 96711-19010 |
RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
LN147,167,172,RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN147,RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-65145 |
RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-33002 |
RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 90301-33002 |
LN147,RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 96711-19010 |
RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
LN147,167,172,RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN147,RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-65145 |
RZN147,152 内径=65.0,外径=70.0 |
1 | ||
| 90301-33002 |
RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 90301-33002 |
LN147,RZN147,152 内径=33.7,外径=40.7 |
1 | ||
| 96711-19010 |
RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 96711-19010 |
LN147,167,172,RZN147,152,169,174 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
LN147,RZN147,152 内径=32,外径=40 |
1 | ||
| 90562-32002 |
RZN147,152 内径=32,外径=40 |
1 | ||
| 90562-31002 |
LN147,RZN147,152 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
RZN147,152 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
LN147,RZN147,152 内径=32,外径=40 |
1 | ||
| 90562-32002 |
RZN147,152 内径=32,外径=40 |
1 | ||
| 90562-31002 |
LN147,RZN147,152 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-31002 |
RZN147,152 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
RZN147,152 |
1 | ||
| 90521-44002 |
LN147,RZN147,152 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-32016 |
RZN147,152 |
1 | ||
| 90311-32016 |
LN147,RZN147,152 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-35070 |
RZN147,152 |
1 | ||
| 44108-35070 |
LN147,RZN147,152 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
RZN147,152,169,174 |
1 | ||
| 90301-64002 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-35030 |
RZN147,152 |
1 | ||
| 44111-35030 |
LN147,RZN147,152 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35310 |
RZN147,152 |
1 | ||
| 44120-35310 |
LN147,RZN147,152 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-60020 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44142-60020 |
RZN147,152,169,174 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44152-30020 |
RZN147,152,169,174 |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
RZN147,152,169,174 |
1 | ||
| 90501-20095 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
RZN147,152,169,174 |
1 | ||
| 44153-30020 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
RZN147,152,169,174 |
1 | ||
| 44154-30020 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
RZN147,152,169,174 |
1 | ||
| 96711-19014 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 90210-10001 |
RZN147,152,169,174 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-60030 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 45357-60030 |
RZN147,152,169,174 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||
ILLUST NO. 2 OF 3(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-35120 |
LN147,RZN147,152 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-35040 |
LN147,RZN147,152 |
1 | ||
| 40110 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40110-35320 |
LN147,RZN147,152 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35320 |
LN147,RZN147,152 |
1 | ||
| 44110-35320 |
RZN147,152 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35460 |
RZN147,152 |
1 | ||
| 45411-35330 |
LN147,RZN147,152 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
RZN147,152,169,174 NO.2 |
1 | ||
| 90171-14042 |
LN147,167,172,RZN147,152,169,174 NO.2 |
1 | ||
| 90170-22058 |
RZN147,152,169,174 NO.1 |
1 | ||
| 90170-22058 |
LN147,167,172,RZN147,152,169,174 NO.1 |
1 | ||
| Common parts | ||||
| 90101-12152 | ||||
| 90101-12153 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12027 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
