RZN147-TRMDE (1997)
Toyota Hilux
Production
Aug 1997
-
Aug 2003
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )RZN147,152,167

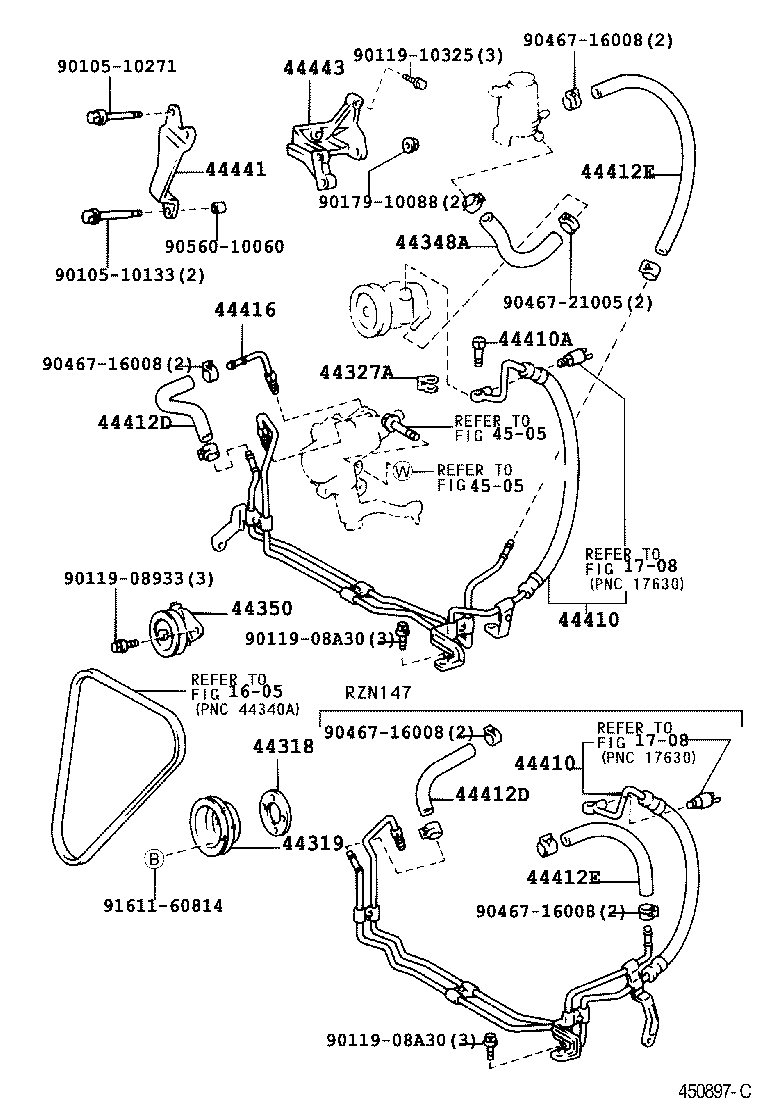

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26020 |
RZN147,152,169,174 |
1 | ||
| 44318-26020 |
RZN147 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26020 |
RZN147,152 |
1 | ||
| 44319-26020 |
RZN147,152 |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
RZN147,152,169,174 |
1 | ||
| 44327-26020 |
RZN147,152,169,174 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35190 |
RZN147,152 |
1 | ||
| 44348-35190 |
RZN147,152 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-26010 |
RZN147,152 |
1 | ||
| 44350-26010 |
RZN147,152 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35480 |
RZN147,152 |
1 | ||
| 44410-35480 |
RZN147,152 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35480 |
RZN147,152 |
1 | ||
| 44410-35480 |
RZN147,152 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
RZN147,152,169,174 |
1 | ||
| 90401-16034 |
RZN147,152,169,174 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 90445-18147 |
LN147,RZN147,152 |
1 | ||
| 90445-18147 |
RZN147,152 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 90445-18147 |
LN147,RZN147,152 |
1 | ||
| 90445-18147 |
RZN147,152 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18153 |
RZN147,152 |
1 | ||
| 90445-18153 |
RZN147,152 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18153 |
RZN147,152 |
1 | ||
| 90445-18153 |
RZN147,152 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35160 |
RZN147,152 |
1 | ||
| 44416-35160 |
LN147,RZN147,152 |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-26010 |
RZN147,152 |
1 | ||
| 44441-26010 |
RZN147,152,167 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26031 |
RZN147,152 |
1 | ||
| 44443-26031 |
RZN147,152 |
1 | ||
| Common parts | ||||
| 90105-10133 | ||||
| 90105-10271 | ||||
| 90119-08933 | ||||
| 90119-08A30 | ||||
| 90119-10325 | ||||
| 90179-10088 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90560-10060 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1708 | ||||
| 4505 | ||||
