RZN147-TRMDE (1997)
Toyota Hilux
(9708-0308)1RZE

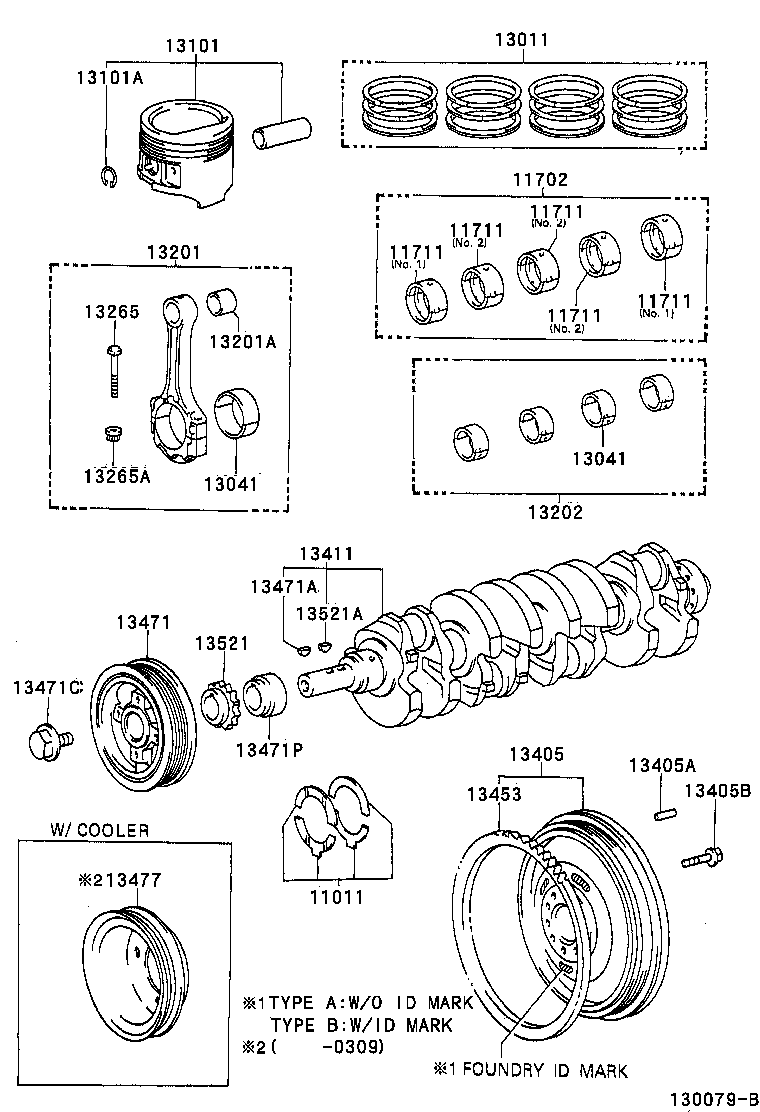

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75010 |
1RZE,3RZFE..RZN147,152,16#,174 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75021 |
1RZE,3RZFE..RZN147,152,169,174 U/S 0.25 |
1 | ||
| 11704-75020 |
1RZE..RZN147,167 U/S 0.25 |
1 | ||
| 11704-75021 |
1RZE,3RZFE..RZN147,152,16#,174 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2 |
3 | ||
| 11701-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2 |
3 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11071-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2 |
3 | ||
| 11701-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2 |
3 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11071-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2 |
3 | ||
| 11701-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2 |
3 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11071-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2 |
3 | ||
| 11701-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2 |
3 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11071-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1 |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502001 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2 |
3 | ||
| 11701-7502002 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.2 |
3 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.1 |
2 | ||
| 11071-7502102 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,NO.2 |
3 | ||
| 11071-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2 |
3 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11071-7502003 |
1RZE..RZN147,167 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,NO.1 |
2 | ||
| 11701-7502102 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,16#,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,NO.1 |
2 | ||
| 11071-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2 |
3 | ||
| 11701-7502103 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1 |
2 | ||
| 11701-7502101 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-75080 |
1RZE..RZN147,152 O/S 0.50 |
1 | ||
| 13011-75080 |
1RZE..RZN147,152 STD |
1 | ||
| 13011-75080 |
1RZE..RZN147,152 STD |
1 | ||
| 13013-75080 |
1RZE..RZN147,152 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502105 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
4 | ||
| 13041-7502104 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
4 | ||
| 13041-7502106 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6 |
4 | ||
| 13041-7502105 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
4 | ||
| 13041-7502106 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6 |
4 | ||
| 13041-7502104 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7502105 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
4 | ||
| 13041-7502104 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
4 | ||
| 13041-7502106 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6 |
4 | ||
| 13041-7502105 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
4 | ||
| 13041-7502106 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6 |
4 | ||
| 13041-7502104 |
1RZE,3RZFE..RZN147,152,169,174 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-75090 |
1RZE..RZN147,152 O/S 0.50 |
4 | ||
| 13103-75090 |
1RZE..RZN147,152 O/S 0.50 |
4 | ||
| 13101-75090 |
1RZE..RZN147,152 STD |
4 | ||
| 13101-75090 |
1RZE..RZN147,152 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-28003 |
1RZE,3RZFE..RZN147,152,169,174 |
8 | ||
| 90521-28003 |
1RZE,3RZFE..RZN147,152,169,174 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79167 |
1RZE..RZN147,152,167 |
4 | ||
| 13201-79167 |
1RZE..RZN147,152 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73129 |
1RZE,3RZFE..RZN147,152,169,174 |
4 | ||
| 90999-73129 |
1RZE,3RZFE..RZN147,152,169,174 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75021 |
1RZE,3RZFE..RZN147,152,169,174 U/S 0.25 |
1 | ||
| 13204-75021 |
1RZE,3RZFE..RZN147,152,16#,174 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-75030 |
1RZE,3RZFE..RZN147,152,16#,174 |
8 | ||
| 13265-75030 |
1RZE,3RZFE..RZN147,152,169,174 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-09009 |
1RZE,3RZFE..RZN147,152,169,174 |
8 | ||
| 90179-09009 |
1RZE,3RZFE..RZN147,152,16#,174 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-75030 |
1RZE..RZN147,167..MTM |
1 | ||
| 13405-75030 |
1RZE..RZN147..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1RZE..RZN147..MTM 長さ=23,外径=8 |
3 | ||
| 90250-08054 |
1RZE..RZN147,167..MTM 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10207 |
1RZE..RZN147,167..MTM |
10 | ||
| 90105-10207 |
1RZE..RZN147..MTM |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-75900 |
1RZE..RZN147,152 |
1 | ||
| 13411-75900 |
1RZE..RZN147,152,167 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0W010 |
1RZE..RZN147..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 13453-20010 |
1RZE..RZN147..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-75030 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 13408-75030 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 90280-05005 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 90105-16041 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 13471P - SPACER(FOR CRANKSHAFT PULLEY) | ||||
| 90561-33001 |
1RZE..RZN147,152,167 |
1 | ||
| 90561-33001 |
1RZE..RZN147,152 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-26050 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 88451-26050 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-75010 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 13521-75010 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 90280-05005 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
