RZN147-TBMDE (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

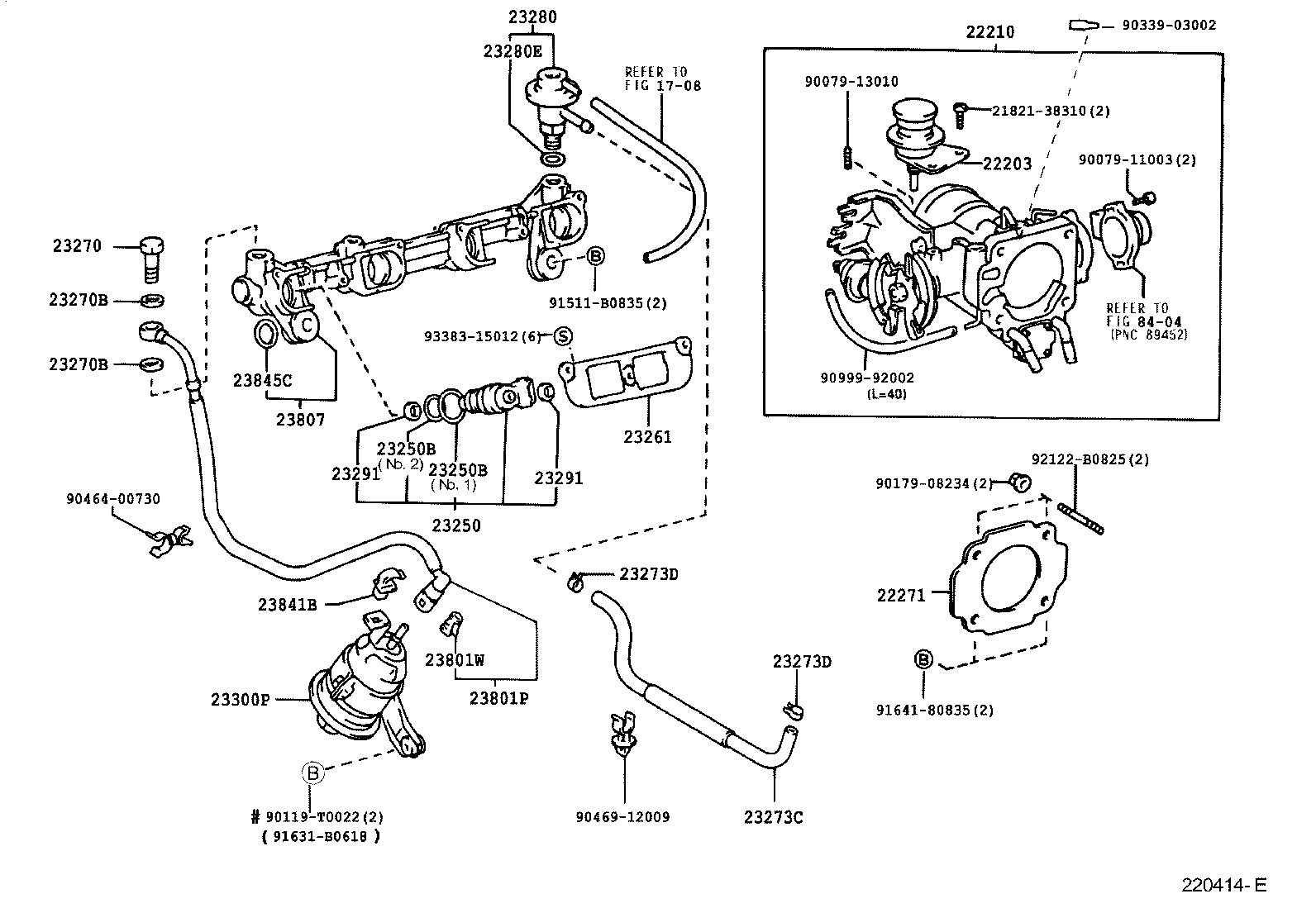

ILLUST NO. 1 OF 2(9708-0308)1RZE

Click highlighted areas on diagram

diagram 1708 2182138310 22203 22210 22271 23250 23250B 23250B 23261 23270 23270B 23270B 23273C 23273D 23273D 23280 23280E 23291 23291 23300P 23801P 23801W 23807 23841B 23845C 8404 9007911003 9007913010 90119T0022 9017908234 9033903002 9046400730 9046912009 9099992002 91511B0835 91631B0618 9164180835 92122B0825 9338315012
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-75121

1RZE..RZN147,152,167

 1
22210 - BODY ASSY, THROTTLE
22210-75121

1RZE..RZN147,152,167

 1
22271 - GASKET, THROTTLE BODY
22271-75010

1RZE..RZN147,152,167

 1
23250 - INJECTOR ASSY, FUEL
23209-79115

1RZE..RZN147,152

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

1RZE..RZN147,152,167

NO.2

 4
90301-17007

1RZE..RZN147,152,167

NO.1

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

1RZE..RZN147,152,167

NO.2

 4
90301-17007

1RZE..RZN147,152,167

NO.1

 4
23261 - COVER, INJECTOR
23261-75020

1RZE..RZN147,152,167

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46010

1RZE,3RZFE..RZN147,152,16#,174

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010

1RZE,3RZFE..RZN147,152,16#,174

 2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010

1RZE,3RZFE..RZN147,152,16#,174

 2
23273C - HOSE, FUEL, NO.2
23273-75080

1RZE..RZN147,152,167

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

1RZE,3RZFE..RZN147,152,16#,174

 2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

1RZE,3RZFE..RZN147,152,16#,174

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75010

1RZE..RZN147,152,167

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-09002

1RZE..RZN147,152,167

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

1RZE..RZN147,152,167

 8
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

1RZE..RZN147,152,167

 8
23300P - FILTER, FUEL(FOR EFI)
23300-75100

1RZE,3RZFE..RZN147,152,16#,174

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-75060

1RZE..RZN147,152,167

 1
23801W - CLIP, FUEL TUBE CONNECTOR
90923-07010

1RZE,3RZFE..RZN147,152,16#,174

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75030

1RZE..RZN147,152,167

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
90469-12012

1RZE,3RZFE..RZN147,152,16#,174

 1
23845C - INSULATOR, FUEL PIPE
23845-75010

1RZE..RZN147,152,167

 4
Common parts
21821-38310
90079-11003
90079-13010
90119-T0022
90179-08234
90339-03002
90464-00730
90469-12009
90999-92002
91511-B0835
91631-B0618
91641-80835
92122-B0825
93383-15012
Linked diagrams
1708
8404

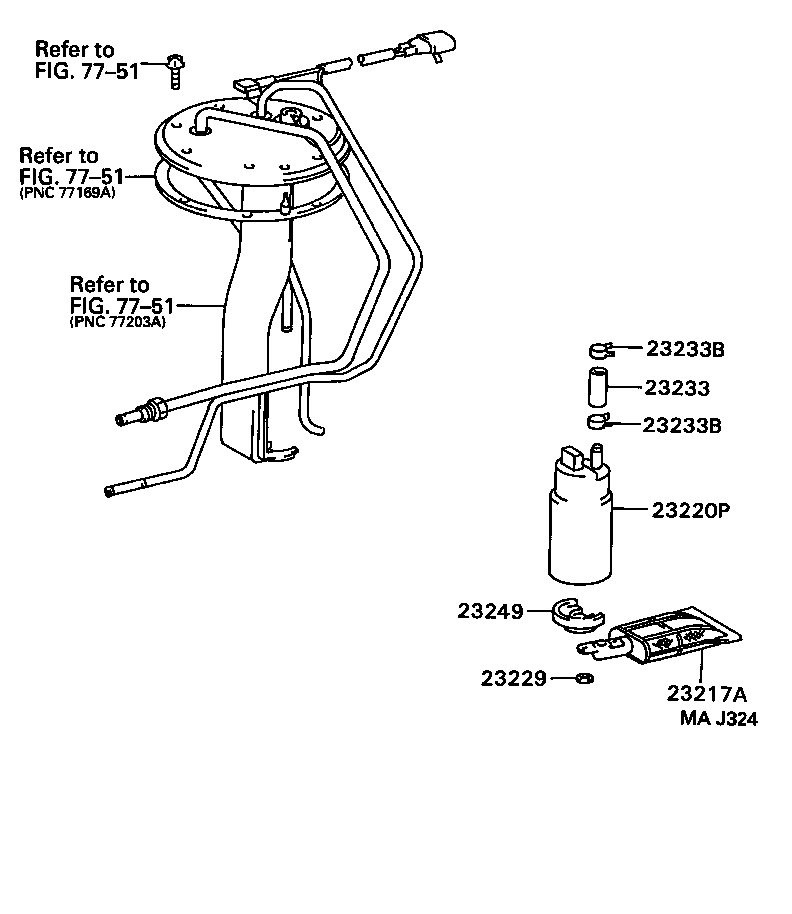

ILLUST NO. 2 OF 2(9708-0308)1RZE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 7751 7751 7751
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-46090

1RZE,3RZFE..RZN147,152,16#,174

 1
23220P - PUMP ASSY, FUEL
23221-46010

1RZE,3RZFE..RZN147,152,16#,174

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1RZE,3RZFE..RZN147,152,16#,174

 1
23233 - HOSE, FUEL PUMP
23239-11010

1RZE,3RZFE..RZN147,152,16#,174

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

1RZE,3RZFE..RZN147,152,16#,174

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

1RZE,3RZFE..RZN147,152,16#,174

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1RZE,3RZFE..RZN147,152,16#,174

 1
Linked diagrams
7751
