RZN147-TBMDE (1997)
Toyota Hilux
Production
Aug 1997
-
Aug 2001
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0308)1RZE

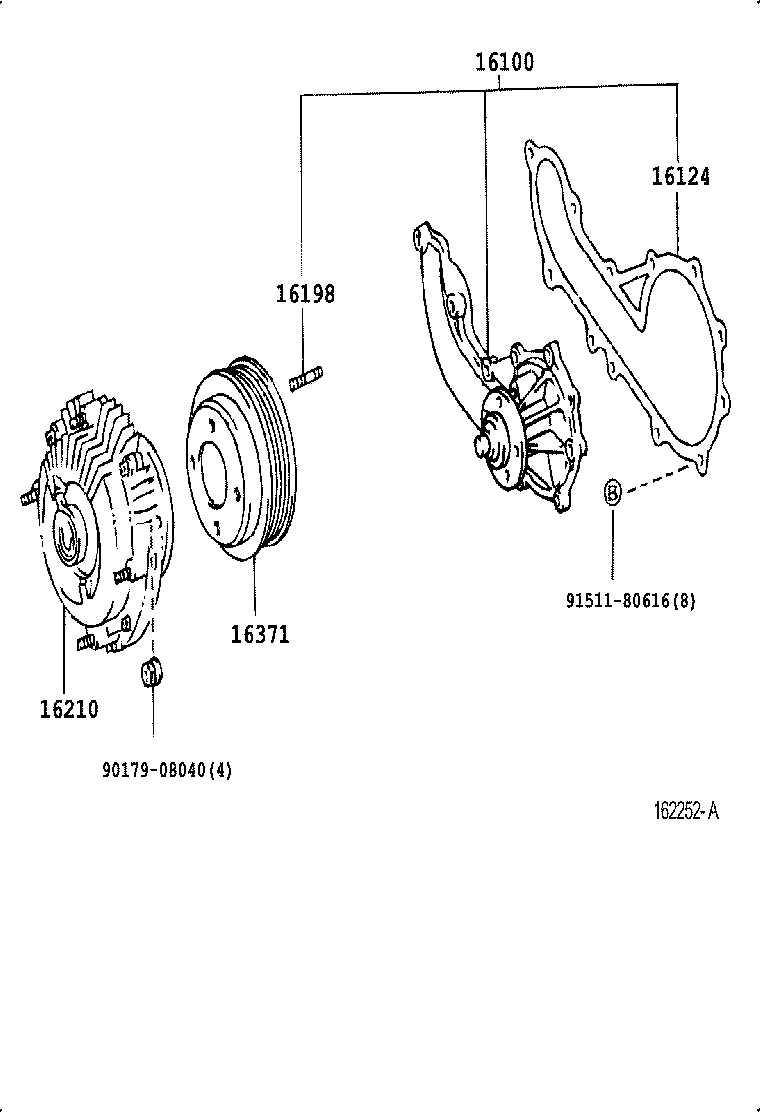

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-79265 |
1RZE..RZN147,152,167 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-75030 |
1RZE..RZN147,152,167 |
1 | ||
| 16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT) | ||||
| 92122-60818 |
1RZE..RZN147,152,167 |
4 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-75010 |
1RZE..RZN147,152,167 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-75010 |
1RZE..RZN147,152,167 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 91511-80616 | ||||
