RZN147-TBMDE (1997)
Toyota Hilux
Production
Aug 1997
-
Aug 2001
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )1RZE,3RZFE

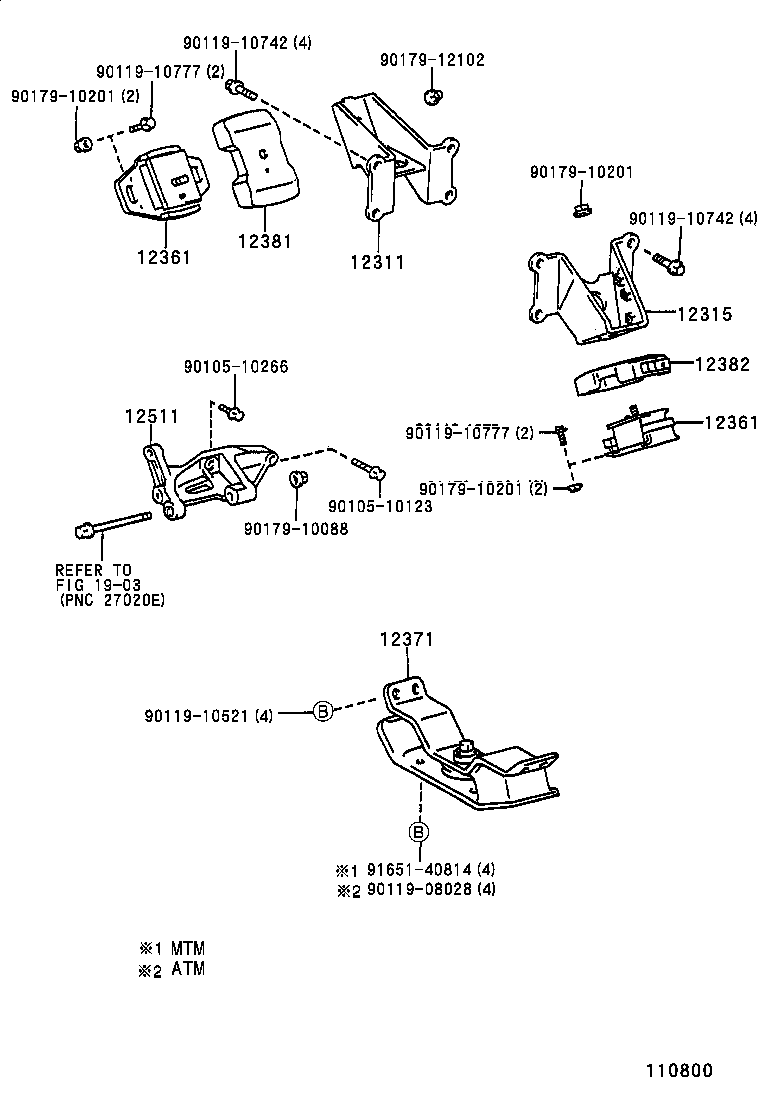

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-75080 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-75070 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-35090 |
1RZE,3RZFE..RZN147,152,16#,174 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-35090 |
1RZE,3RZFE..RZN147,152,16#,174 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-75050 |
1RZE..RZN147..MTM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-75020 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12382-75020 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-75041 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90105-10266 | ||||
| 90119-08028 | ||||
| 90119-10521 | ||||
| 90119-10742 | ||||
| 90119-10777 | ||||
| 90179-10088 | ||||
| 90179-10201 | ||||
| 90179-12102 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1903 | ||||
