RZN147-PRPQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0308)1RZE

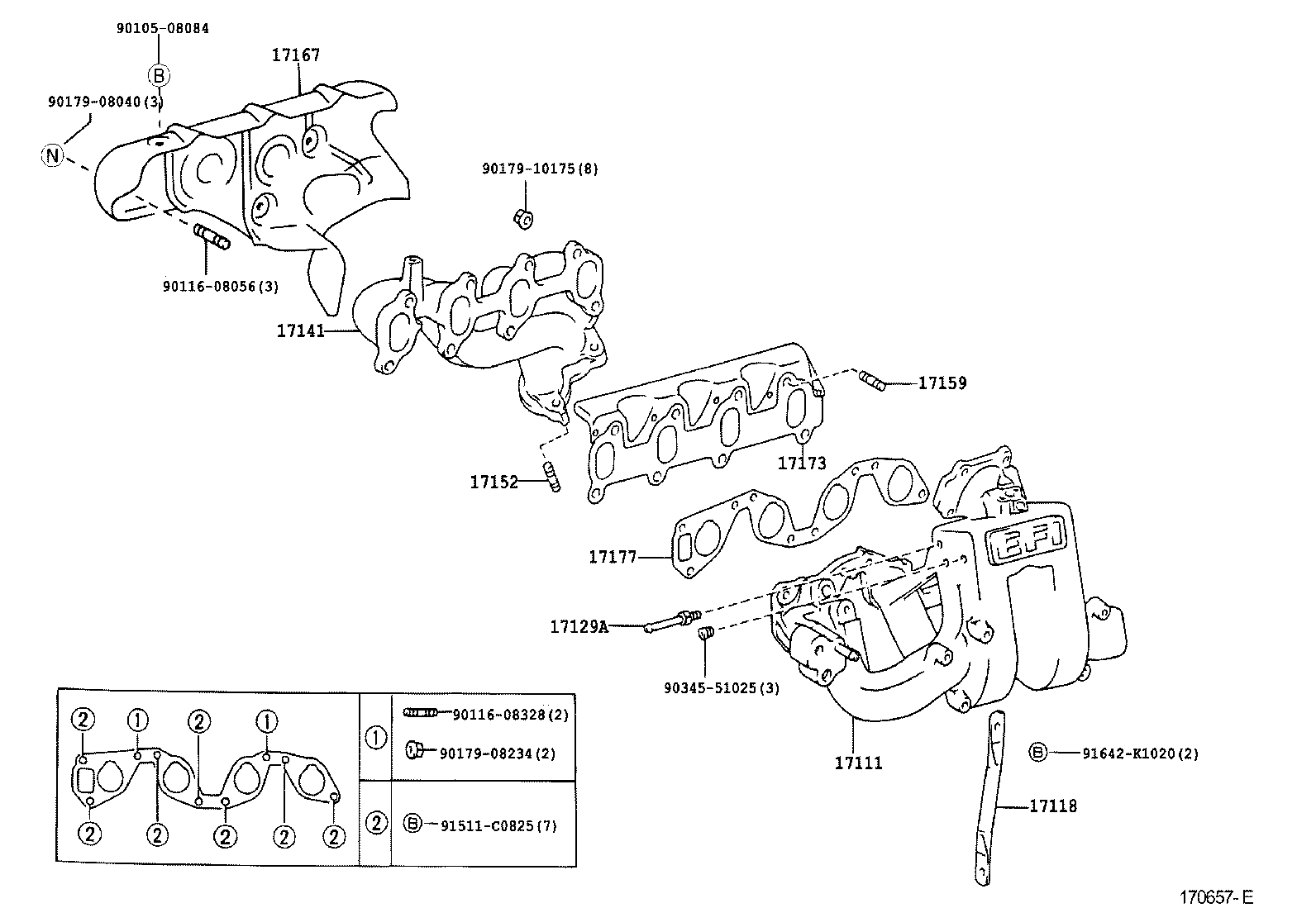

Click highlighted areas on diagram

diagram 17111 17118 17129A 17141 17152 17159 17167 17173 17177 9010508084 9011608056 9011608328 9017908040 9017908234 9017910175 9034551025 91511C0825 91642K1020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-75021

1RZE..RZN147,152

 1
17101-75020

1RZE..RZN147,152,167

 1
17118 - STAY, MANIFOLD
17118-75020

1RZE..RZN147,152,167

 1
17129A - UNION, NO.1
90404-51319

1RZE..RZN147,152,167

 1
17141 - MANIFOLD, EXHAUST
17141-75020

1RZE..RZN147,152,167

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1RZE,3RZFE..RZN147,152,16#,174

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

1RZE..RZN147,152,167

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75060

1RZE..RZN147,152,167

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75010

1RZE..RZN147,152,167

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75011

1RZE..RZN147,152,167

 1
Common parts
90105-08084
90116-08056
90116-08328
90179-08040
90179-08234
90179-10175
90345-51025
91511-C0825
91642-K1020
