RN45-KDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )

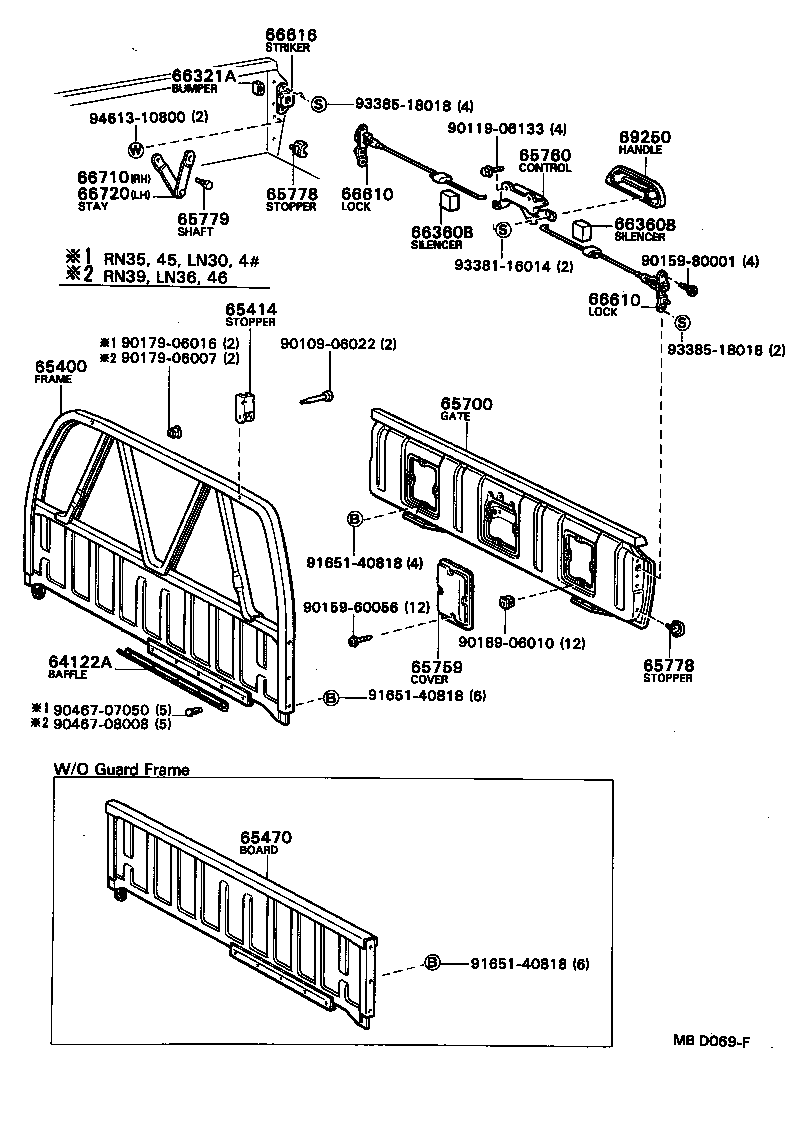

Click highlighted areas on diagram

diagram 64122A 65400 65414 65470 65700 65759 65760 65778 65778 65779 66321A 66360B 66360B 66610 66610 66616 66710 66720 69250 9010906022 9011906133 9015960056 9015980001 9017906007 9017906016 9018906010 9046707050 9046708008 9165140818 9165140818 9165140818 9338116014 9338518018 9338518018 9461310800
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65470-89104

LN30,40,RN3#,4#

W/GUARD FRAME

 1
65414 - STOPPER, GUARD FRAME
65414-89102

LN3#,4#,RN3#,4#..CBU

W/GUARD FRAME

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-89115

LN30,40,RN3#,4#

 1
65700-89116

LN30,40,RN3#,4#

TOYOTA

 1
65760 - CONTROL ASSY,TAIL GATE LOCK
65760-89101

LN3#,4#,RN3#,45..CBU

 1
65778 - STOPPER, TAIL GATE STAY
65778-89102

LN3#,4#,RN3#,45..CBU

 4
65778 - STOPPER, TAIL GATE STAY
65778-89102

LN3#,4#,RN3#,45..CBU

 4
66616 - STRIKER, TAIL GATE LOCK
65768-89101

LN3#,4#,RN3#,45..CBU

 2
Common parts
90109-06022
90119-06133
90159-60056
90159-80001
90179-06007
90179-06016
90189-06010
90467-07050
90467-08008
91651-40818
93381-16014
93385-18018
94613-10800
