RN45-JDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

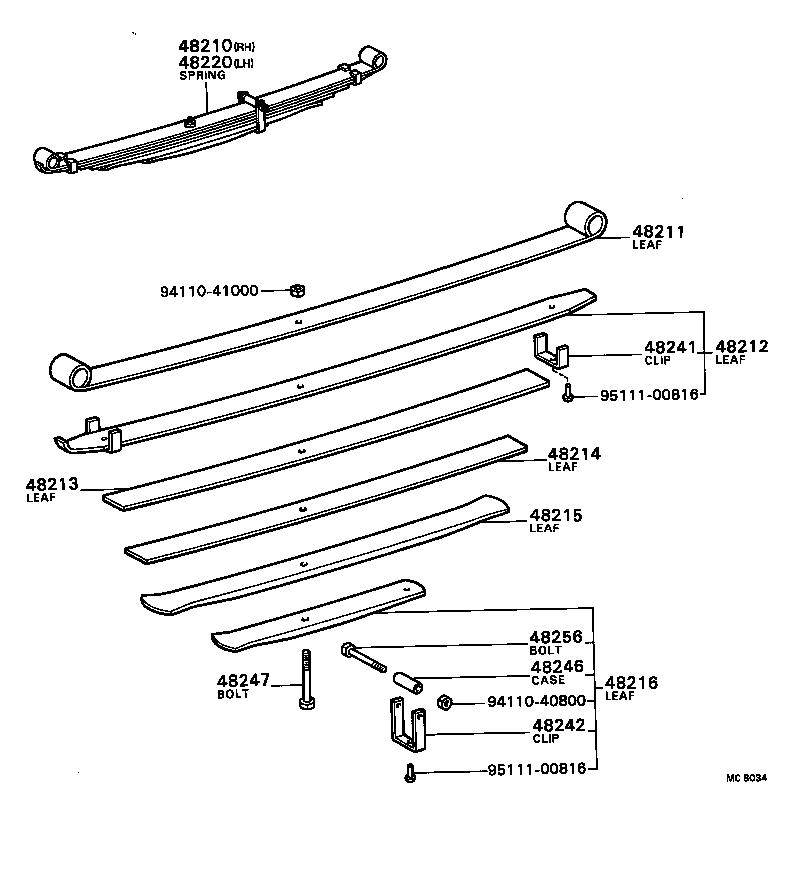

ILLUST NO. 2 OF 2(8110- )LN30,40,41,RN35,45

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48215 48216 48220 48241 48242 48246 48247 48256 9411040800 9411041000 9511100816 9511100816
Part # Description Qty Price
48241 - CLIP, REAR SPRING, NO.1
48241-35120

LN30,40,RN30,33,35,4#

 4
48241-35141

LN30,40,RN35,45

W/6-LEAF SPRING

 4
48242 - CLIP, REAR SPRING, NO.2
48241-35250

LN30,40,RN35,45

W/6-LEAF SPRING

 2
48242-35120

LN30,40,RN30,33,35,4#

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN30,40,41,RN30,33,35,4#

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35070

LN30,40,41,RN30,33,35,4#

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN30,40,41,RN30,33,35,4#

 2
Common parts
94110-40800
94110-41000
95111-00816
