RN45-JDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )12RJ

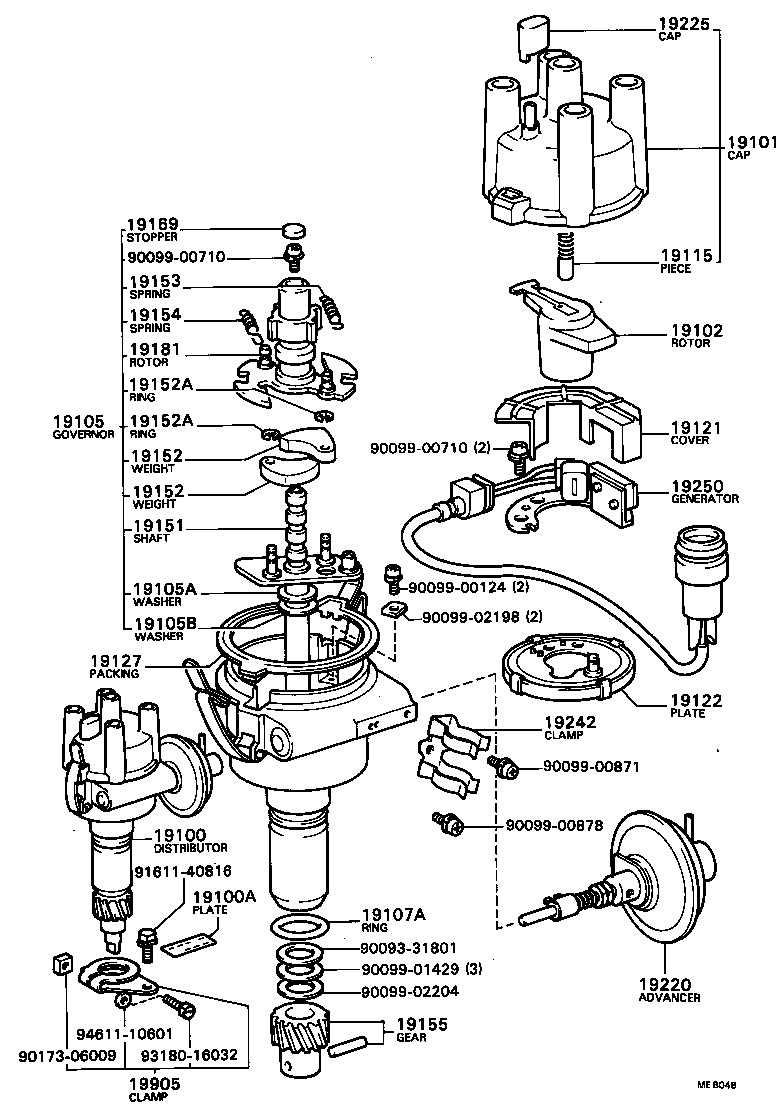

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19105 19105A 19105B 19107A 19115 19121 19122 19127 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19181 19220 19225 19242 19250 19905 9009331801 9009900124 9009900710 9009900710 9009900871 9009900878 9009901429 9009902198 9009902204 9017306009 9161140816 9318016032 9461110601
Part # Description Qty Price
19100A - TAPE, SEALING
90919-24004

12RJ,18RJ..RN3#,4#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

12RJ,18RJ..RN3#,4#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

12RJ,18RJ..RN3#,4#

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010

12RJ..RN30,33,35,4#

 1
Common parts
90093-31801
90099-00124
90099-00710
90099-00871
90099-00878
90099-01429
90099-02198
90099-02204
90173-06009
91611-40816
93180-16032
94611-10601
