RN45-JDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )12RJ

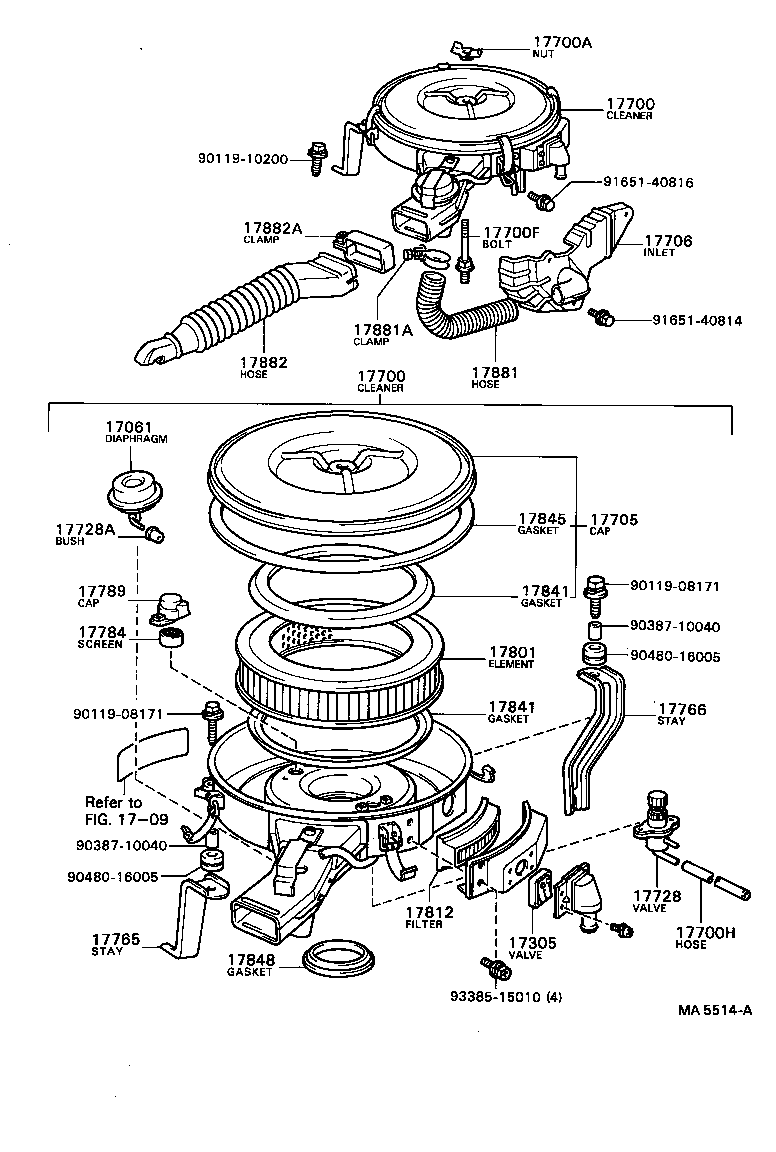

Click highlighted areas on diagram

diagram 17061 1709 17305 17700 17700 17700A 17700F 17700H 17705 17706 17728 17728A 17765 17766 17784 17789 17801 17812 17841 17841 17845 17848 17881 17881A 17882 17882A 9011908171 9011908171 9011910200 9038710040 9038710040 9048016005 9048016005 9165140814 9165140816 9338515010
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-31510

12RJ..RN35,45

 1
17700 - CLEANER ASSY, AIR
17700-31510

12RJ..RN35,45

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

12RJ,18RJ..RN3#,4#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06106

12RJ..RN30,33,35,4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31032

12RJ..RN30,33,4#

WHITE

 1
17784 - SCREEN, AIR CLEANER
17784-31010

12RJ,18RJ..RN3#,4#

 1
17789 - CAP, AIR CLEANER SCREEN
17789-31020

12RJ,18RJ..RN3#,4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

12RJ..RN30,33,4#

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

12RJ..RN30,33,35,4#

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

12RJ..RN30,33,35,4#

 2
Common parts
90119-08171
90119-10200
90387-10040
90480-16005
91651-40814
91651-40816
93385-15010
Linked diagrams
1709
