RN45-JDS (1981)

Toyota Hilux

Production Oct 1981 - Aug 1985
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

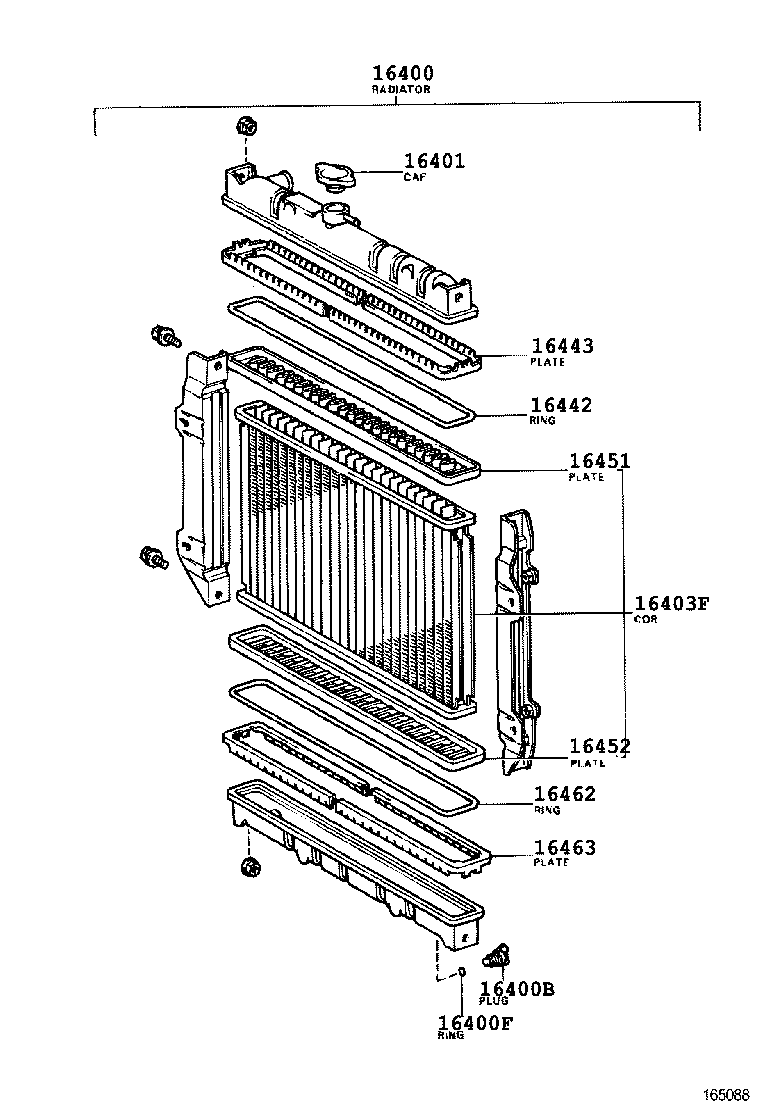

ILLUST NO. 2 OF 2(8110- )12RJ

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-31230

12RJ..RN30,33,4#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

12RJ,18RJ..RN3#,4#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

12RJ,18RJ..RN3#,4#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

12RJ,18RJ..RN3#,4#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-31330

12RJ..RN35,45

 2
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16443-31330

12RJ..RN35,45

 2
