RN45-JDP (1981)
Toyota Hilux
Production
Oct 1981
-
Oct 1983
Engine
12RJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8110-8310)TW

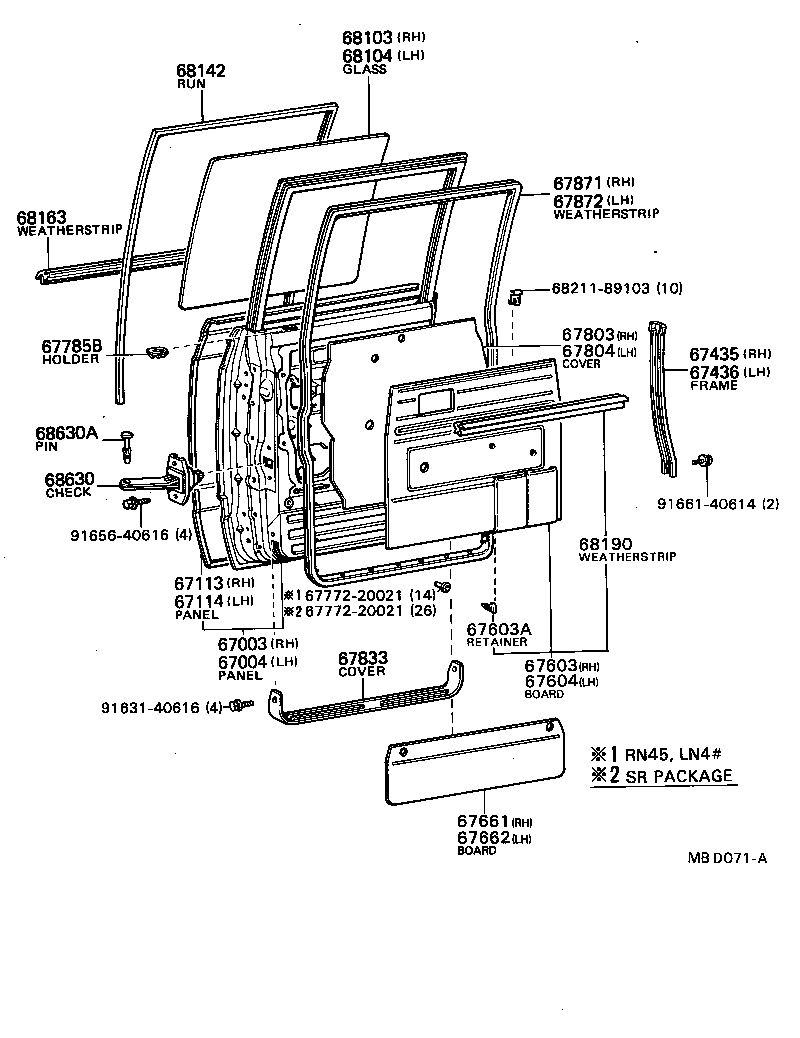

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-89101 |
LN4#,RN45..TW |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-89101 |
LN4#,RN45..TW |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-89101 |
LN4#,RN45..TW |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-89101 |
LN4#,RN45..TW |
1 | ||
| 67435 - FRAME, REAR DOOR WINDOW LOWER, RH | ||||
| 67447-89101 |
LN4#,RN45..TW |
1 | ||
| 67436 - FRAME, REAR DOOR WINDOW, LOWER LH | ||||
| 67448-89102 |
LN4#,RN45..TW |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8910404 |
LN40,RN45..TW BLUE,BLUE,TRIM8# |
1 | ||
| 67630-8910401 |
LN4#,RN45..TW BLACK,BLACK,TRIM2# |
1 | ||
| 67630-8910406 |
LN4#,RN45..TW BROWN,BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-89101 |
LN4#,RN45..TW |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8910404 |
LN40,RN45..TW BLUE,BLUE,TRIM8# |
1 | ||
| 67640-8910401 |
LN4#,RN45..TW BLACK,BLACK,TRIM2# |
1 | ||
| 67640-8910406 |
LN4#,RN45..TW BROWN,BROWN,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
LN4#,RN45..TW |
2 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67831-89105 |
LN4#,RN45..TW |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67831-89105 |
LN4#,RN45..TW |
1 | ||
| 67833 - COVER, REAR DOOR SERVICE HOLE | ||||
| 67842-89101 |
LN4#,RN45..TW |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-89101 |
LN4#,RN45..TW |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-89101 |
LN4#,RN45..TW |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-89102 |
LN4#,RN45..TW *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-89102 |
LN4#,RN45..TW *TT,厚さ=4.0,*TT,T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-89101 |
LN4#,RN45..TW |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68160-89106 |
LN4#,RN45..TW |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-89101 |
LN4#,RN45..TW |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
LN4#,RN45..TW |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 68211-89103 | ||||
| 91631-40616 | ||||
| 91656-40616 | ||||
| 91661-40614 | ||||
