RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

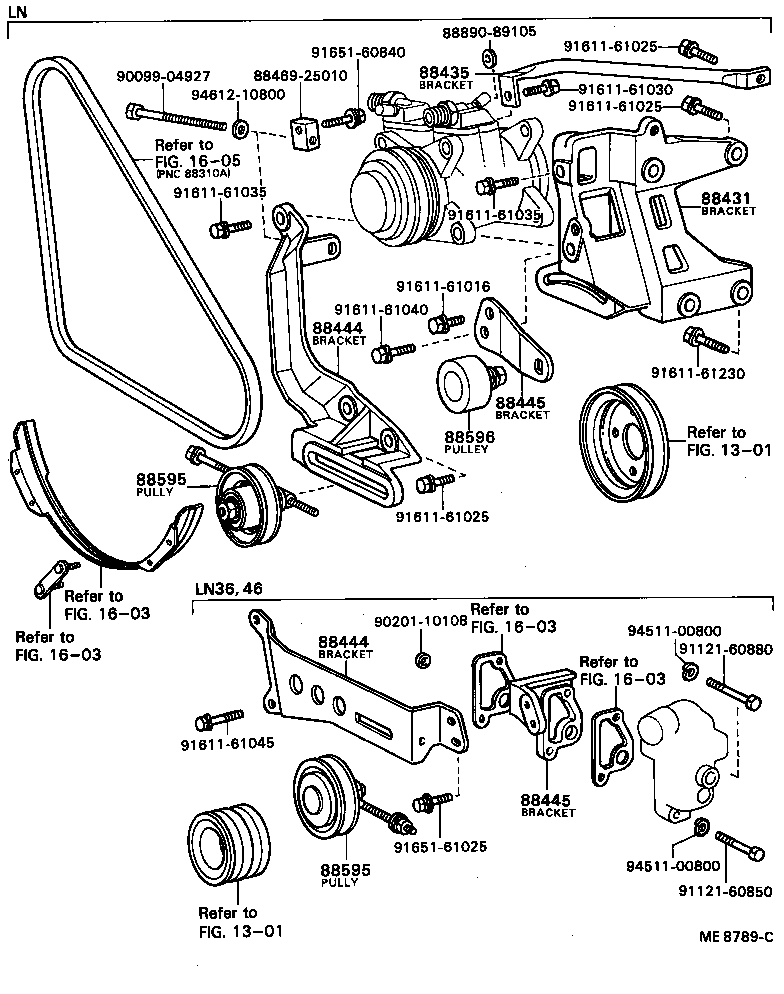

ILLUST NO. 2 OF 2(7912- )LN3#,4#

Click highlighted areas on diagram

diagram 1301 1301 1603 1603 1603 1603 1605 88431 88435 88444 88444 88445 88445 8846925010 88595 88595 88596 8889089105 9009904927 9020110108 9112160850 9112160880 9161161016 9161161025 9161161025 9161161025 9161161030 9161161035 9161161035 9161161040 9161161045 9161161230 9165160840 9165161025 9451100800 9451100800 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35010

RN30,33,35,4#

 1
88444 - BRACKET, IDLE PULLEY
88444-35010

RN30,33,35,4#

 1
88444 - BRACKET, IDLE PULLEY
88444-35010

RN30,33,35,4#

 1
88445 - BRACKET, IDLE PULLEY
88444-35020

RN30,33,35,4#

 1
88445 - BRACKET, IDLE PULLEY
88444-35020

RN30,33,35,4#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

RN3#,4#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

RN3#,4#

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-20060

RN30,33,35,4#

 1
Common parts
88469-25010
88890-89105
90099-04927
90201-10108
91121-60850
91121-60880
91611-61016
91611-61025
91611-61030
91611-61035
91611-61040
91611-61045
91611-61230
91651-60840
91651-61025
94511-00800
94612-10800
Linked diagrams
1301
1603
1605
