RN43-JDSW3 (1979)
Toyota Hilux
ILLUST NO. 2 OF 3(7808-8110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LN30,40,RN3#,4# 5A |
2 | ||
| 99118-62915 |
LN30,40,RN3#,4# 15A,15A |
6 | ||
| 99118-62910 |
LN30,40,RN3#,4# 10A |
7 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN30,40,RN3#,4# REAR |
1 | ||
| 82611-89106 |
LN30,40,RN3#,4# FRONT |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN30,40,RN3#,4# REAR |
1 | ||
| 82611-89106 |
LN30,40,RN3#,4# FRONT |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LN3#,4#,RN3#,4# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90044-65032 |
LN3#,4#,RN3#,4# W/COOLER |
2 | ||
| 90468-23001 |
LN3#,4#,RN3#,4# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90044-65032 |
LN3#,4#,RN3#,4# W/COOLER |
2 | ||
| 90468-23001 |
LN3#,4#,RN3#,4# |
2 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19076 |
LN30,40,RN3#,43 12V |
1 | ||
| 84112-19075 |
LN30,40,RN3#,4# 12V |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19015 |
LN30,40,RN3#,4# 12V |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20060 |
RN43..DLX |
1 | ||
| 84230-20040 |
LN30,40,RN3#,4# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10220 |
LN30,40,RN3#,4#..DLX,SDX 12V |
1 | ||
| 84310-10221 |
LN30,40,RN3#,43..DLX,SDX 12V |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LN3#,4#,RN3#,4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19015 |
LN30,40,RN3#,4# 12V |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84332-89108 |
LN3#,4#,RN3#,4# |
1 | ||
| 84335A - BOLT OR NUT, PARKING LAMP SWITCH SET | ||||
| 90170-11003 |
LN3#,4#,RN3#,4# |
1 | ||
| 84335C - KNOB, PARKING LAMP SWITCH | ||||
| 84331-89106 |
LN30,40,RN3#,4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
LN3#,4#,RN3#,4# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19145 |
LN30,40,RN3#,4#..DLX,SDX 12V |
1 | ||
| 84652-19146 |
LN30,40,RN3#,43..DLX,SDX 12V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20042 |
LN30,40,RN3#,4#..DLX,SDX |
1 | ||
| Common parts | ||||
| 88649-89115 | ||||
| 90119-06081 | ||||
| 90461-08361 | ||||
| 90463-15402 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93385-16020 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
ILLUST NO. 3 OF 3(7808-8110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81908 - BRACKET SUB-ASSY, FLASHER | ||||
| 85999-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LN30,40,RN3#,4# 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LN30,40,RN3#,4# 12V |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39185 |
LN40,RN4# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LN3#,4#,RN3#,4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
LN3#,4#,RN3#,4# TOKAIRIKA |
1 | ||
| 84340-22060 |
LN30,40,RN3#,4# MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LN3#,4#,RN3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89104 |
LN30,40,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
LN30,40,RN3#,4# 12V |
1 | ||
| 90987-02004 |
LN30,40,RN3#,43 12V |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
LN30,40,RN3#,4# 12V |
1 | ||
| 90987-02004 |
LN30,40,RN3#,43 12V |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
LN30,40,RN3#,4# 12V |
2 | ||
| 90987-01001 |
LN30,40,RN33,43 12V |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
LN30,40,RN3#,4# 12V |
2 | ||
| 90987-01001 |
LN30,40,RN33,43 12V |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
LN30,40,RN3#,4# 12V |
2 | ||
| 90987-01001 |
LN30,40,RN33,43 12V |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36010 |
RN3#,4#..DLX,SDX NO.1 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36010 |
RN3#,4#..DLX,SDX NO.1 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36010 |
RN3#,4#..DLX,SDX NO.1 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
LN30,40,RN3#,43 12V,HEATER RELAY |
1 | ||
| 85999-26010 |
LN30,40,RN3#,4# 12V,HEATER RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
LN30,40,RN3#,43 12V,HEATER RELAY |
1 | ||
| 85999-26010 |
LN30,40,RN3#,4# 12V,HEATER RELAY |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-10012 |
RN3#,4# |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93319-14010 | ||||
| 93540-54014 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 8715 | ||||

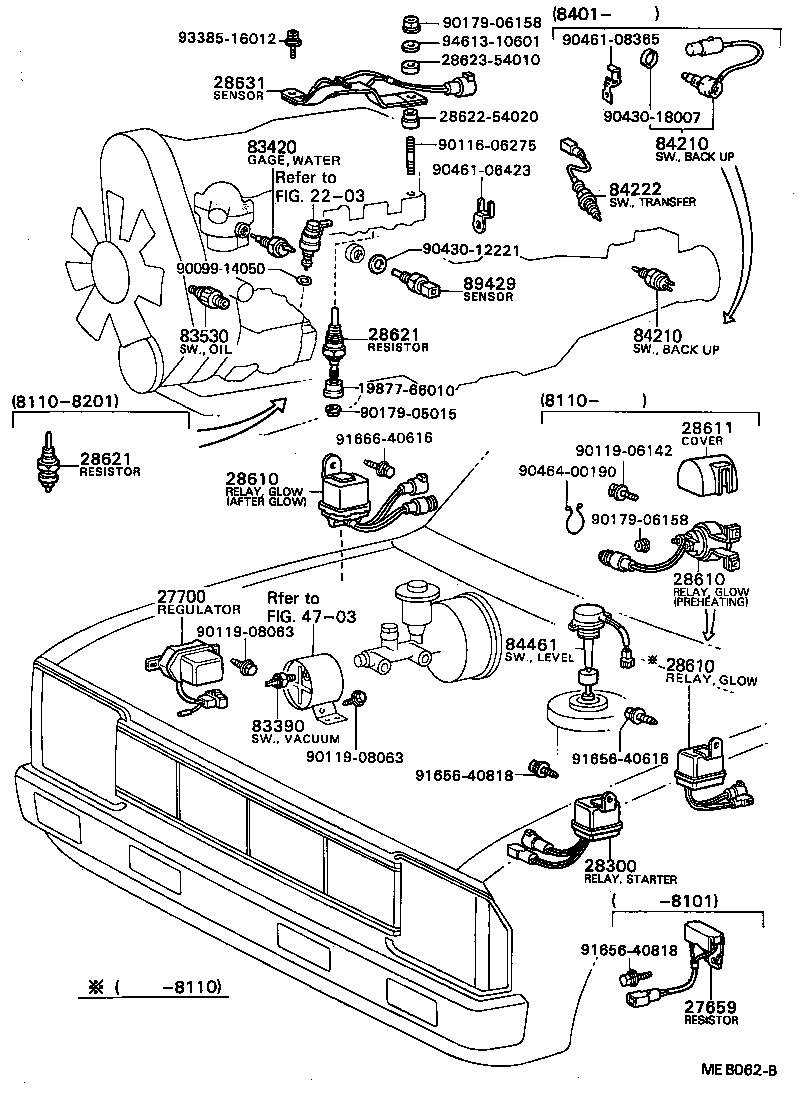

ILLUST NO. 1 OF 3(7912- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13010 |
L,12RJ,18RJ..LN30,40,RN3#,4# 12V |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LN3#,4#,RN3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN3#,4# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90099-14050 | ||||
| 90116-06275 | ||||
| 90119-06142 | ||||
| 90119-08063 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-06423 | ||||
| 90461-08365 | ||||
| 90464-00190 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 4703 | ||||
