RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )LN3#,4#

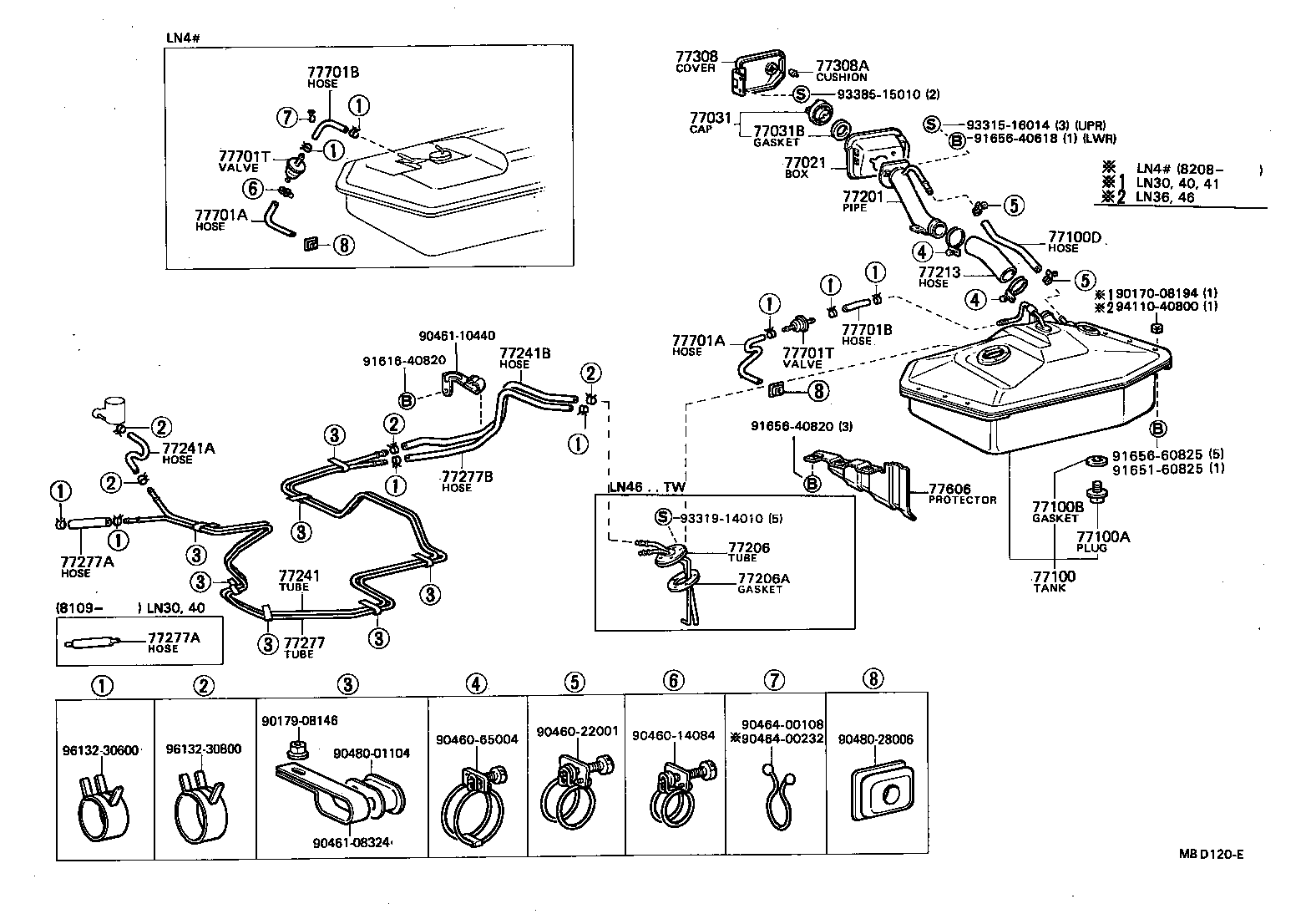

Click highlighted areas on diagram

diagram 77021 77031 77031B 77100 77100A 77100B 77100D 77201 77206 77206A 77213 77241 77241A 77241B 77277 77277A 77277A 77277B 77308 77308A 77606 77701A 77701A 77701B 77701B 77701T 77701T 9017008194 9017908146 9046014084 9046022001 9046065004 9046108324 9046110440 9046400108 9046400232 9048001104 9048028006 9161640820 9165160825 9165640618 9165640820 9165660825 9331516014 9331914010 9338515010 9411040800 9613230600 9613230800
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-12090

LN30,40,RN3#,43

 1
77310-14070

LN30,40,RN3#,4#

 1
77310-12090

RN3#,43

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LN30,40,RN3#,4#

 1
77100 - TANK ASSY, FUEL
77100-35090

RN4#..T1

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN3#,4#,RN3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN3#,4#,RN3#,4#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-21883

LN3#,4#,RN3#,4#

長さ=320

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35100

LN30,40,RN3#,4#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35030

LN3#,4#,RN3#,4#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35070

RN4#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RN30,33,35,4#

*H,L=300

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN3#,4#,RN3#,4#..T1

 1
Common parts
90170-08194
90179-08146
90460-14084
90460-22001
90460-65004
90461-08324
90461-10440
90464-00108
90464-00232
90480-01104
90480-28006
91616-40820
91651-60825
91656-40618
91656-40820
91656-60825
93315-16014
93319-14010
93385-15010
94110-40800
96132-30600
96132-30800
