RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8110)

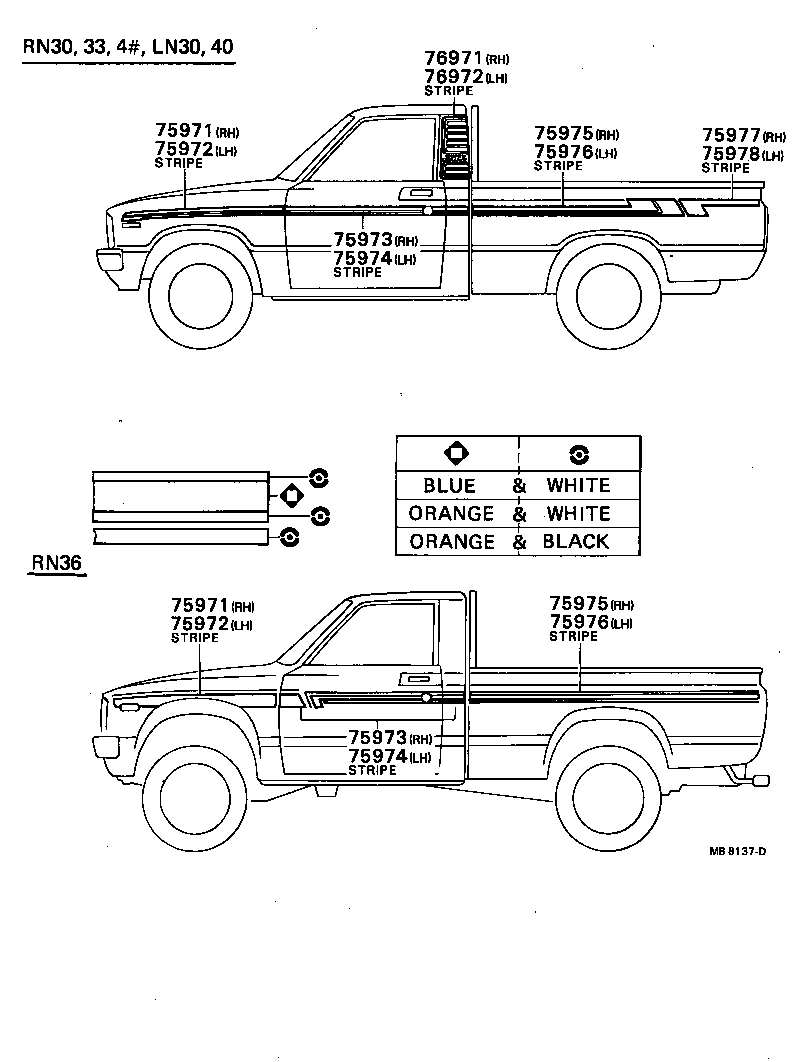

Click highlighted areas on diagram

diagram 75971 75971 75972 75972 75973 75973 75974 75974 75975 75975 75976 75976 75977 75978 76971 76972
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75981-8910704

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75981-8910716

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
75981-8910706

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75971 - STRIPE, SIDE, RH NO.1
75981-8910704

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75981-8910716

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
75981-8910706

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75972 - STRIPE, SIDE, LH NO.1
75982-8910616

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
75982-8910606

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75982-8910604

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75972 - STRIPE, SIDE, LH NO.1
75982-8910616

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
75982-8910606

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75982-8910604

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75973 - STRIPE, SIDE, RH NO.2
75985-8910816

LN30,40,RN30,33,4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75985-8910806

LN30,40,RN30,33,4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75985-8910804

LN30,40,RN30,33,4#..DLX,STD

BLUE & WHITE,BLUE

 1
75973 - STRIPE, SIDE, RH NO.2
75985-8910816

LN30,40,RN30,33,4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75985-8910806

LN30,40,RN30,33,4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75985-8910804

LN30,40,RN30,33,4#..DLX,STD

BLUE & WHITE,BLUE

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75986-8910806

LN30,40,RN30,33,4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75986-8910804

LN30,40,RN30,33,4#..DLX,STD

BLUE & WHITE,BLUE

 1
75986-8910816

LN30,40,RN30,33,4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75986-8910806

LN30,40,RN30,33,4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75986-8910804

LN30,40,RN30,33,4#..DLX,STD

BLUE & WHITE,BLUE

 1
75986-8910816

LN30,40,RN30,33,4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75996-8910704

LN40,RN4#..DLX,STD

BLUE & WHITE,BLUE

 1
75996-8910716

LN40,RN4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75996-8910706

LN40,RN4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75996-8910704

LN40,RN4#..DLX,STD

BLUE & WHITE,BLUE

 1
75996-8910716

LN40,RN4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75996-8910706

LN40,RN4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75976 - STRIPE, SIDE, LH UPR
75997-8910706

LN40,RN4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75997-8910716

LN40,RN4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75997-8910704

LN40,RN4#..DLX,STD

BLUE & WHITE,BLUE

 1
75976 - STRIPE, SIDE, LH UPR
75997-8910706

LN40,RN4#..DLX,STD

ORANGE & BLACK,BROWN

 1
75997-8910716

LN40,RN4#..DLX,STD

ORANGE & WHITE,BROWN

 1
75997-8910704

LN40,RN4#..DLX,STD

BLUE & WHITE,BLUE

 1
75977 - STRIPE, SIDE, RH NO.4
75996-8911006

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75996-8911016

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
75996-8911004

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75978 - STRIPE, SIDE, LH NO.4
75997-8911004

LN30,40,RN30,33,4#

BLUE & WHITE,BLUE

 1
75997-8911006

LN30,40,RN30,33,4#

ORANGE & BLACK,BROWN

 1
75997-8911016

LN30,40,RN30,33,4#

ORANGE & WHITE,BROWN

 1
