RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912-8110)12RJ

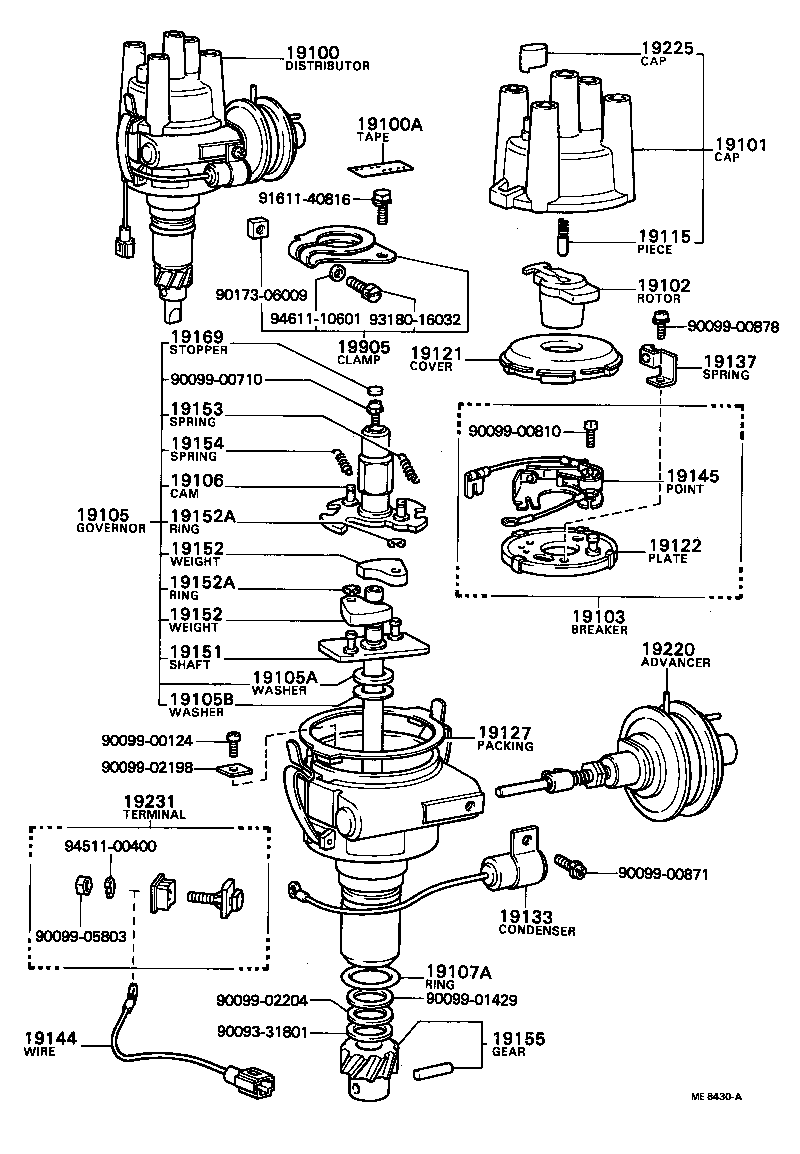

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19103 19105 19105A 19105B 19106 19107A 19115 19121 19122 19127 19133 19137 19144 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19225 19231 19905 9009331801 9009900124 9009900710 9009900810 9009900871 9009900878 9009901429 9009902198 9009902204 9009905803 9017306009 9161140816 9318016032 9451100400 9461110601
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-31120

12RJ..RN33,43

 1
19100A - TAPE, SEALING
90919-24004

12RJ,18RJ..RN3#,4#

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-33013

12RJ..RN33,43

 1
19105 - GOVERNOR SUB-ASSY
19105-31120

12RJ..RN33,43

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-31030

12RJ..RN33,43

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

12RJ,18RJ..RN3#,4#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

12RJ,18RJ..RN3#,4#

 1
19121 - COVER, DUST PROOF
19121-38030

12RJ..RN33,43

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-33013

12RJ..RN33,43

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52059

12RJ..RN33,43

 1
19137 - SPRING SUB-ASSY, DAMPER
19137-33012

12RJ..RN33,43

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-34180

12RJ..RN33,43

 1
19145 - POINT, DISTRIBUTOR
19145-26060

12RJ,18RJ..RN3#,4#

 1
19151 - SHAFT, GOVERNOR
19151-24081

12RJ..RN33,43

 1
19153 - SPRING, GOVERNOR, A
19153-31120

12RJ..RN33,43

 1
19154 - SPRING, GOVERNOR, B
19154-31120

12RJ..RN33,43

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-31120

12RJ..RN33,43

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

12RJ..RN33,43

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010

12RJ..RN30,33,35,4#

 1
Common parts
90093-31801
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-01429
90099-02198
90099-02204
90099-05803
90173-06009
91611-40816
93180-16032
94511-00400
94611-10601
