RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912-8110)12RJ

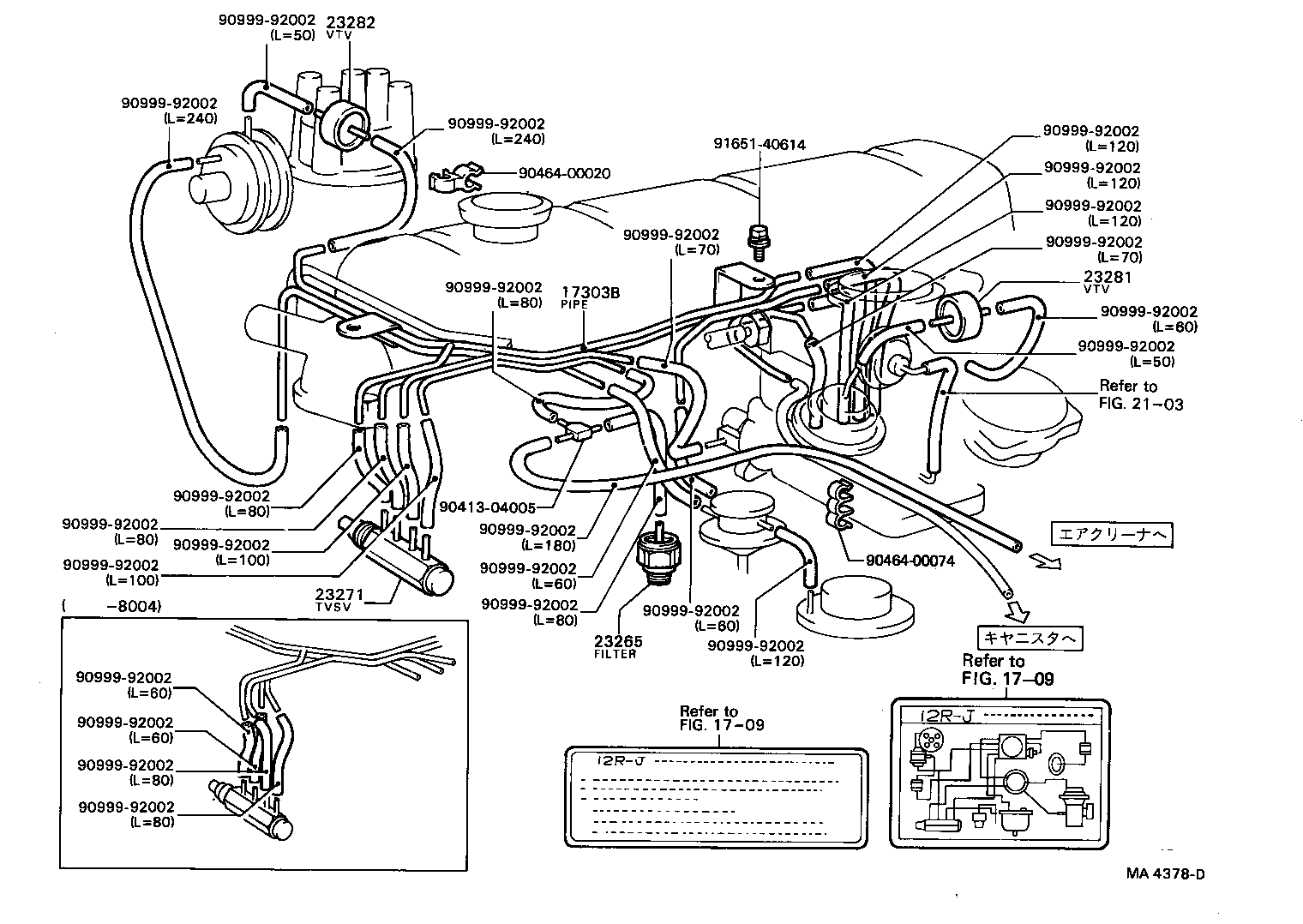

Click highlighted areas on diagram

diagram 1709 1709 17303B 2103 23265 23271 23281 23282 9041304005 9046400020 9046400074 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165140614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-31011

12RJ..RN33,43

 1
17303-31010

12RJ..RN33,43

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02064

12RJ..RN33,43

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01042

12RJ..RN30,33,4#

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01053

12RJ..RN33,43

 1
Common parts
90413-04005
90464-00020
90464-00074
90999-92002
91651-40614
Linked diagrams
1709
2103
