RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912-8110)12RJ

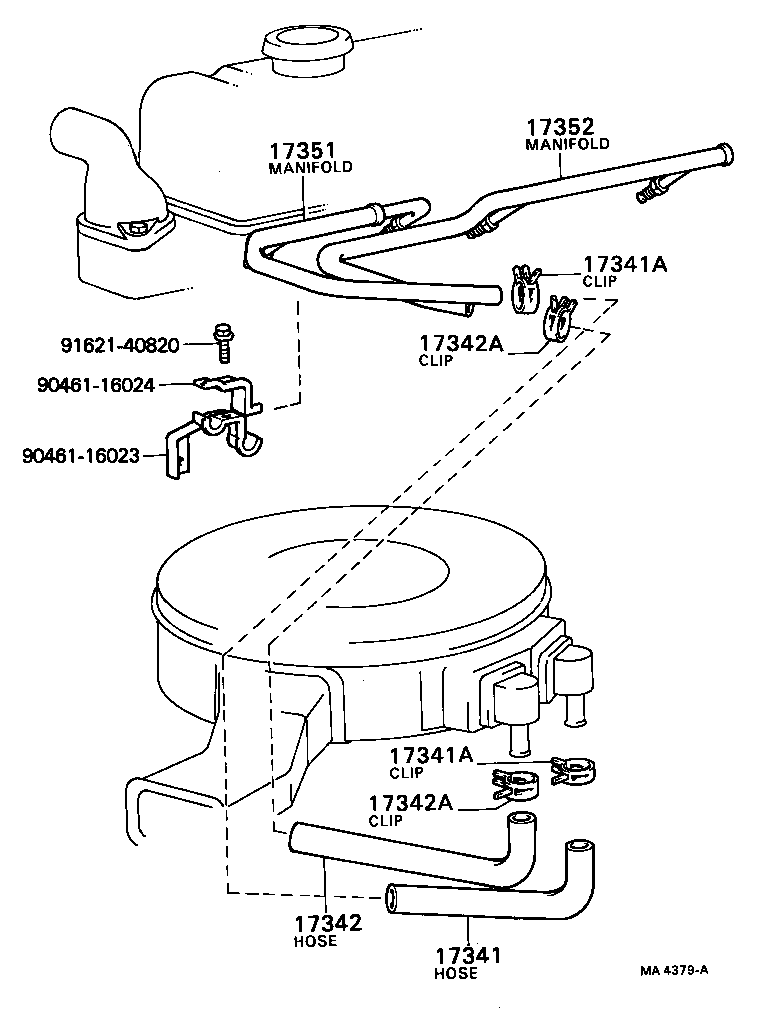

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17342A 17342A 17351 17352 9046116023 9046116024 9162140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90910-05151

12RJ..RN33,43

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-23001

12RJ..RN33,43

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-23001

12RJ..RN33,43

 2
17351 - MANIFOLD, AIR INJECTION
17351-31050

12RJ..RN33,43

 1
Common parts
90461-16023
90461-16024
91621-40820
