RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8110)12RJ,18RJ

Click highlighted areas on diagram

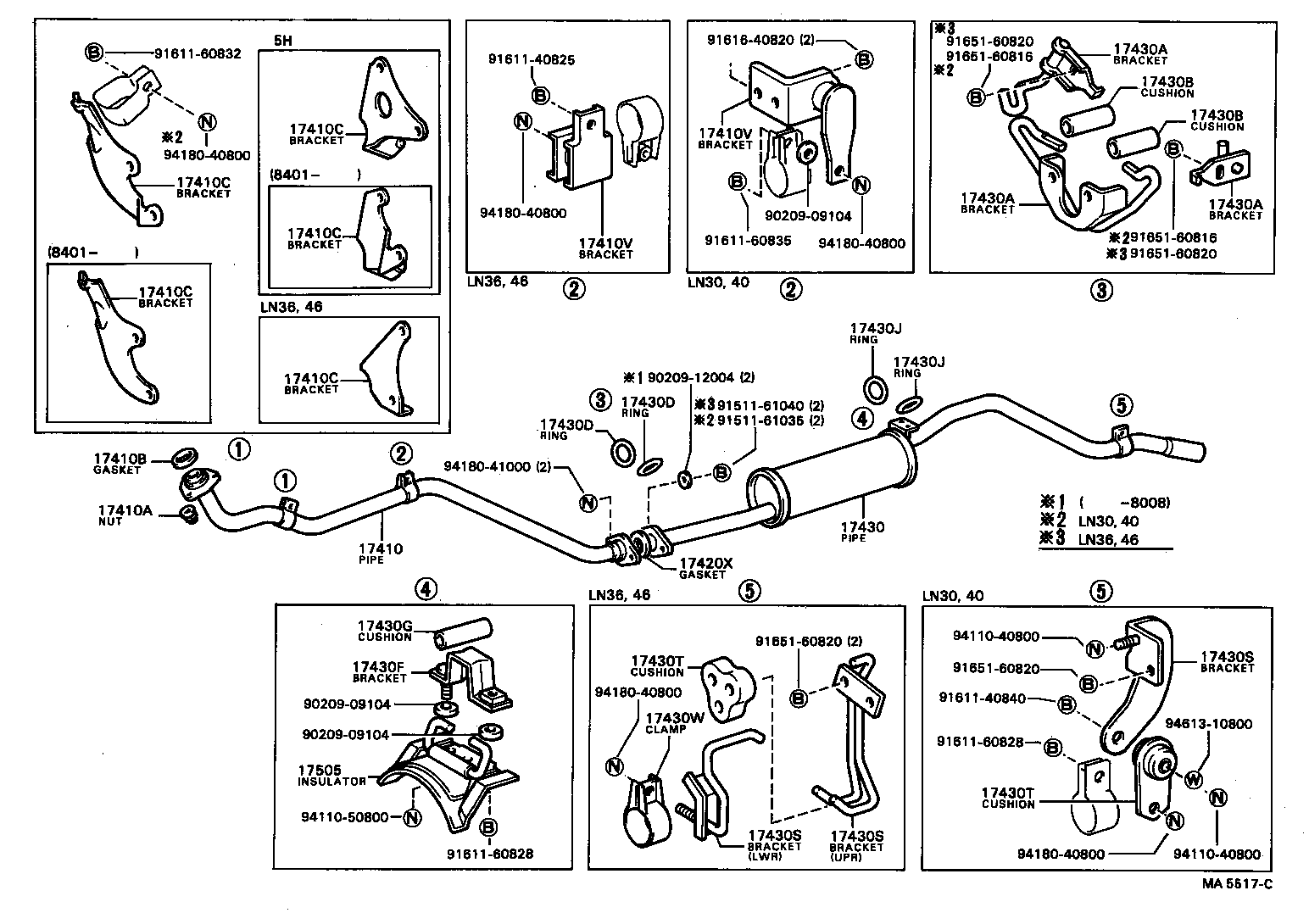

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17420X 17420X 17430 17430 17430A 17430A 17430A 17430B 17430B 17430D 17430D 17430F 17430G 17430J 17430J 17430S 17430S 17430S 17430S 17430T 17430T 17430W 17505 9020909104 9020912004 9020912004 9151161035 9151161040 9161140840 9161160820 9161160820 9161160828 9161160828 9161160832 9161160832 9165160816 9165160816 9165160820 9411050800 9411050800 9411050800 9418040800 9418040800 9418041000 9418041000 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31290

12RJ..RN30,33,4#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31290

12RJ..RN30,33,4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10199

12RJ..RN30,33,35,4#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10199

12RJ..RN30,33,35,4#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

L,12RJ,2L..LN3#,4#,RN30,33,35,4#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

L,12RJ,2L..LN3#,4#,RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

L,12RJ,18RJ..LN30,40,RN3#,4#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

L,12RJ,18RJ..LN30,40,RN3#,4#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31330

L,12RJ..LN40,RN43

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31330

L,12RJ..LN40,RN43

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17576-31050

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
Common parts
90209-09104
90209-12004
91511-61035
91511-61040
91611-40840
91611-60820
91611-60828
91611-60832
91651-60816
91651-60820
94110-50800
94180-40800
94180-41000
94613-10800

(7912- )L,2L

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410C 17410C 17410C 17410C 17410V 17410V 17420X 17430 17430A 17430A 17430A 17430B 17430B 17430D 17430D 17430F 17430G 17430J 17430J 17430S 17430S 17430S 17430T 17430T 17430W 17505 9020909104 9020909104 9020909104 9020912004 9151161035 9151161040 9161140825 9161140840 9161160828 9161160828 9161160832 9161160835 9161640820 9165160816 9165160816 9165160820 9165160820 9165160820 9165160820 9411040800 9411040800 9411050800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31290

12RJ..RN30,33,4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10199

12RJ..RN30,33,35,4#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

L,12RJ,2L..LN3#,4#,RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31140

12RJ..RN30,33,35,4#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

L,12RJ,18RJ..LN30,40,RN3#,4#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31330

L,12RJ..LN40,RN43

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-31060

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

LH

 1
17504-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

RH

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17576-31050

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
90540-09003

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-33001

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 2
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-31010

L,12RJ,18RJ,2L..LN3#,4#,RN3#,4#

 1
Common parts
90209-09104
90209-12004
91511-61035
91511-61040
91611-40825
91611-40840
91611-60828
91611-60832
91611-60835
91616-40820
91651-60816
91651-60820
94110-40800
94110-50800
94180-40800
94180-41000
94613-10800
