RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )L,2L

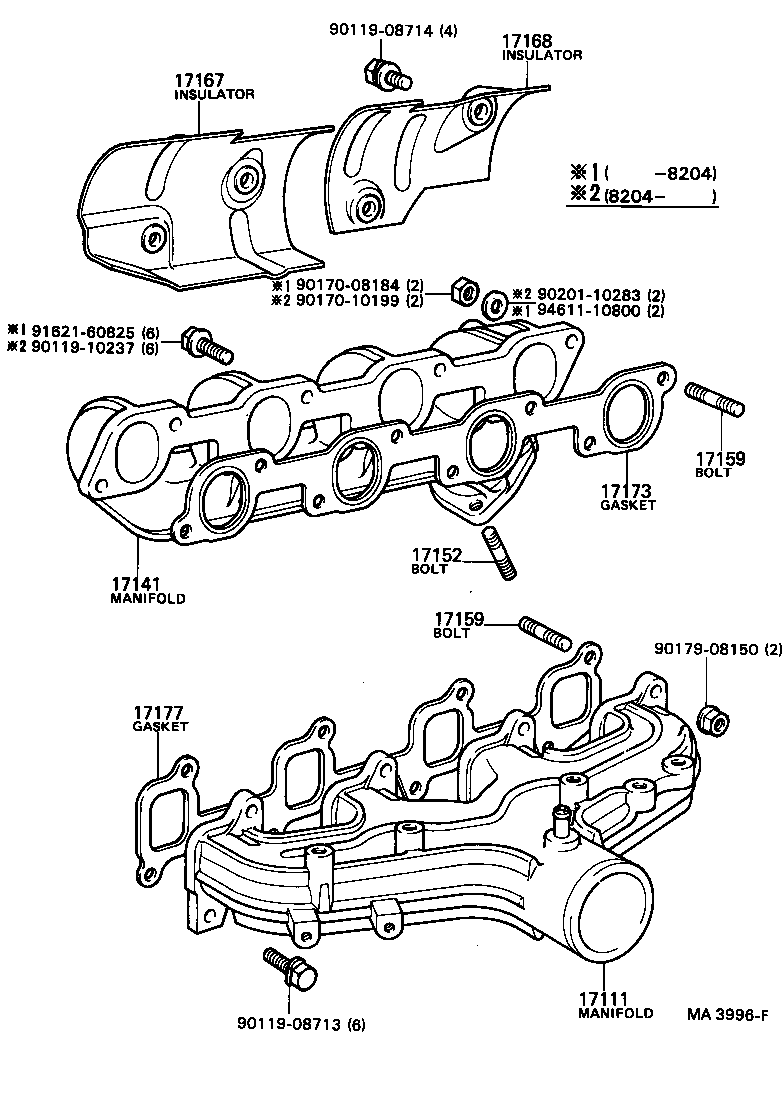

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011908713 9011908714 9011910237 9017008184 9017010199 9017908150 9020110283 9162160825 9461110800
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12RJ..RN30,33,35,4#

L=37,S=13&20

 2
Common parts
90119-08713
90119-08714
90119-10237
90170-08184
90170-10199
90179-08150
90201-10283
91621-60825
94611-10800
