RN43-JDSW3 (1979)
Toyota Hilux

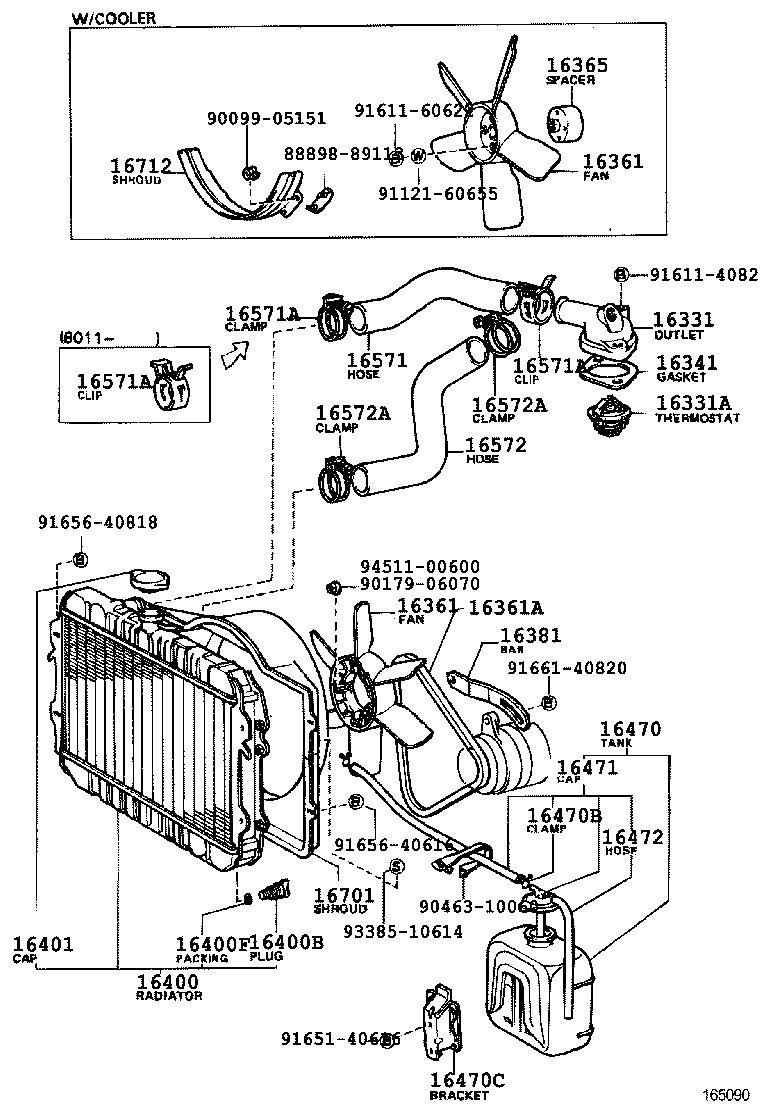

ILLUST NO. 1 OF 2(7912- )12RJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31082 |
12RJ..RN30,33,35,4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12RJ,18RJ..RN3#,4# *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
12RJ,18RJ..RN3#,4# *WAX 82-95,KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00890 |
12RJ..RN30,33,35,4# L=890 |
1 | ||
| 99332-00900 |
12RJ..RN30,33,35,4# COLD SPEC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-30021 |
12RJ..RN30,33,35,4# COLD SPEC |
1 | ||
| 16381-31012 |
12RJ..RN30,33,35,4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31230 |
12RJ..RN30,33,4# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12RJ..RN30,33,35,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-31091 |
12RJ..RN30,33,35,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31024 |
12RJ..RN30,33,35,4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12RJ..RN30,33,35,4# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12RJ..RN30,33,35,4# ID=46 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16831-89104 |
12RJ..RN30,33,35,4# W/COOLER |
1 | ||
| Common parts | ||||
| 88898-89113 | ||||
| 90099-05151 | ||||
| 90179-06070 | ||||
| 90463-10060 | ||||
| 91121-60655 | ||||
| 91611-40825 | ||||
| 91611-60622 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91661-40820 | ||||
| 93385-10614 | ||||
| 94511-00600 | ||||

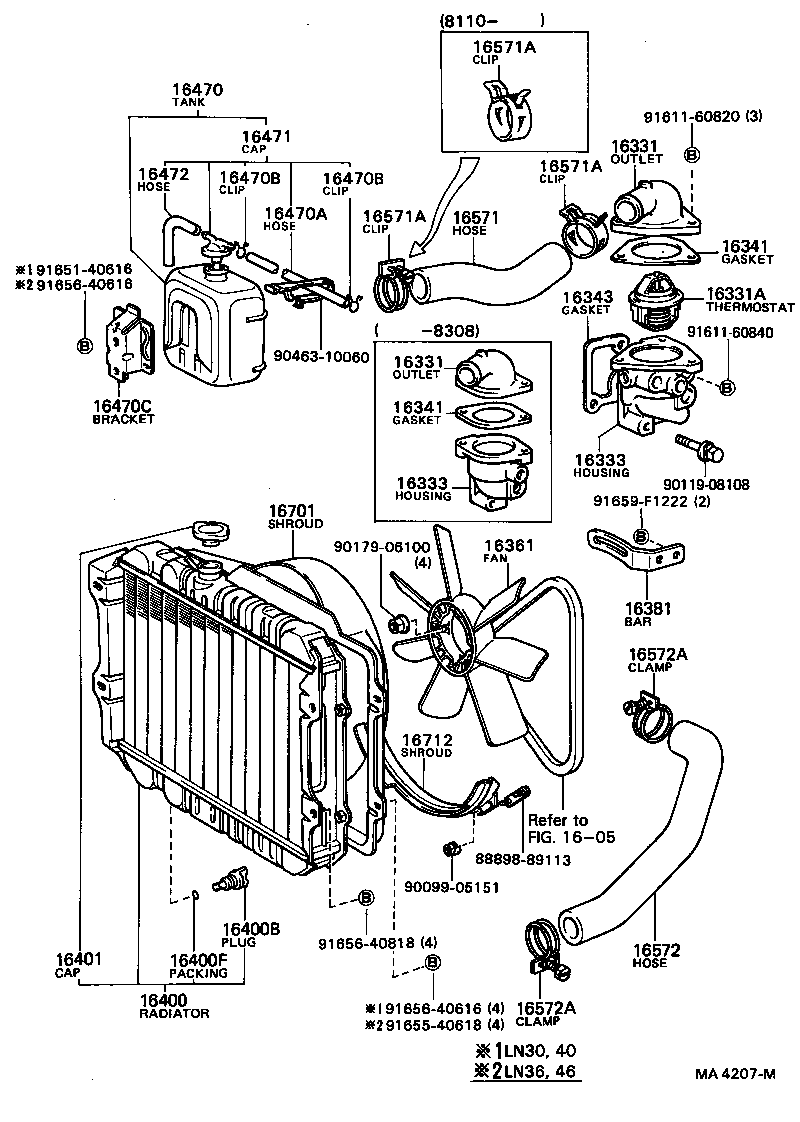

(7912- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31082 |
12RJ..RN30,33,35,4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31082 |
12RJ..RN30,33,35,4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12RJ,18RJ..RN3#,4# *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
12RJ,18RJ..RN3#,4# *WAX 82-95,KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-30021 |
12RJ..RN30,33,35,4# COLD SPEC |
1 | ||
| 16381-31012 |
12RJ..RN30,33,35,4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31230 |
12RJ..RN30,33,4# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
12RJ,18RJ..RN3#,4# |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12RJ..RN30,33,35,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-31091 |
12RJ..RN30,33,35,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10440 |
12RJ,18RJ..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
12RJ,18RJ..RN3#,4# ENGINE SIDE,ID=37 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31024 |
12RJ..RN30,33,35,4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12RJ..RN30,33,35,4# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12RJ..RN30,33,35,4# ID=46 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16831-89104 |
12RJ..RN30,33,35,4# W/COOLER |
1 | ||
| Common parts | ||||
| 88898-89113 | ||||
| 90099-05151 | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
| 90463-10060 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40616 | ||||
| 91655-40618 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91659-F1222 | ||||
| Linked diagrams | ||||
| 1605 | ||||
