RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

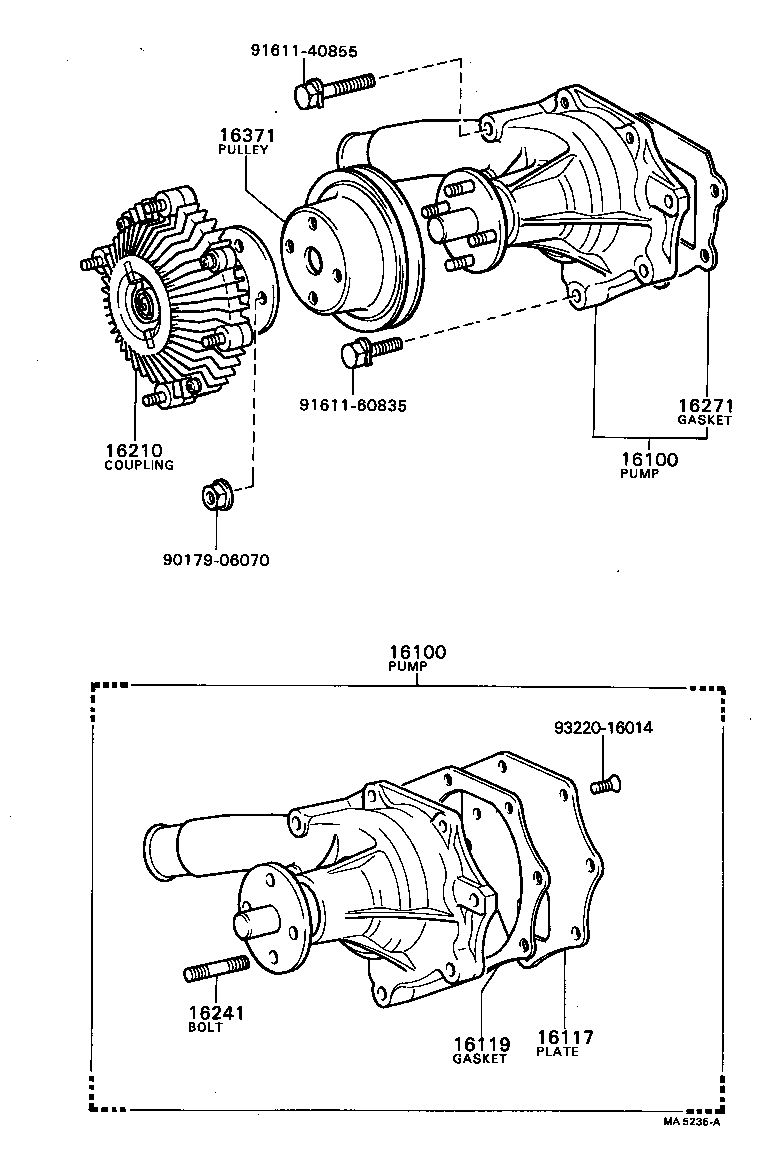

(7912- )12RJ

Click highlighted areas on diagram

diagram 16100 16100 16117 16119 16210 16241 16271 16371 9017906070 9161140855 9161160835 9322016014
Part # Description Qty Price
16117 - PLATE, WATER PUMP
16117-31031

12RJ..RN30,33,35,4#

 1
16119 - GASKET, WATER PUMP BODY
16124-31031

12RJ..RN30,33,35,4#

 1
16271 - GASKET, WATER PUMP
16271-31010

12RJ..RN30,33,35,4#

 1
Common parts
90179-06070
91611-40855
91611-60835
93220-16014

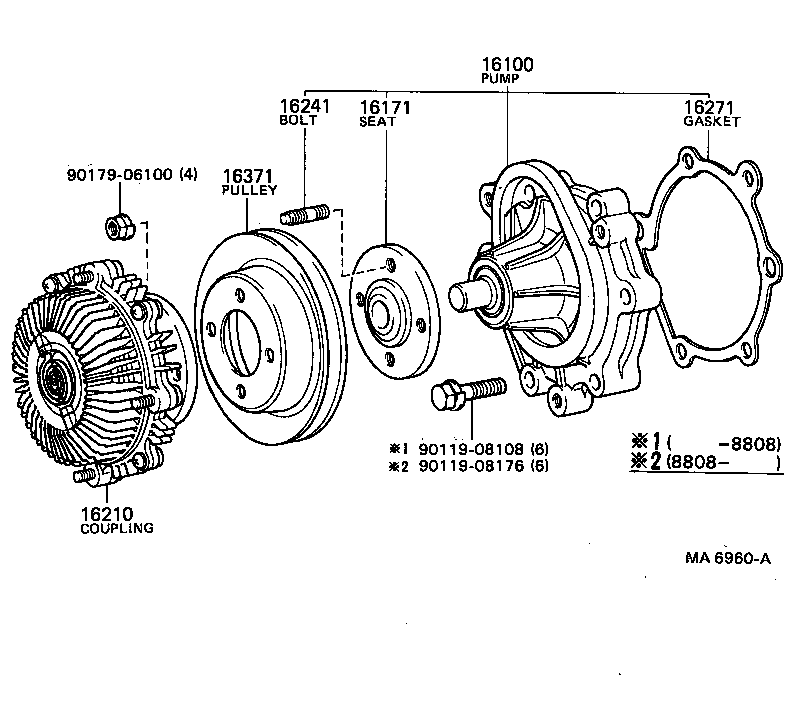

(7912- )L,2L

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 9011908108 9011908176 9017906100
Part # Description Qty Price
16271 - GASKET, WATER PUMP
16271-31010

12RJ..RN30,33,35,4#

 1
Common parts
90119-08108
90119-08176
90179-06100
