RN43-JDSW3 (1979)

Toyota Hilux

Production Dec 1979 - Oct 1981
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )L,2L

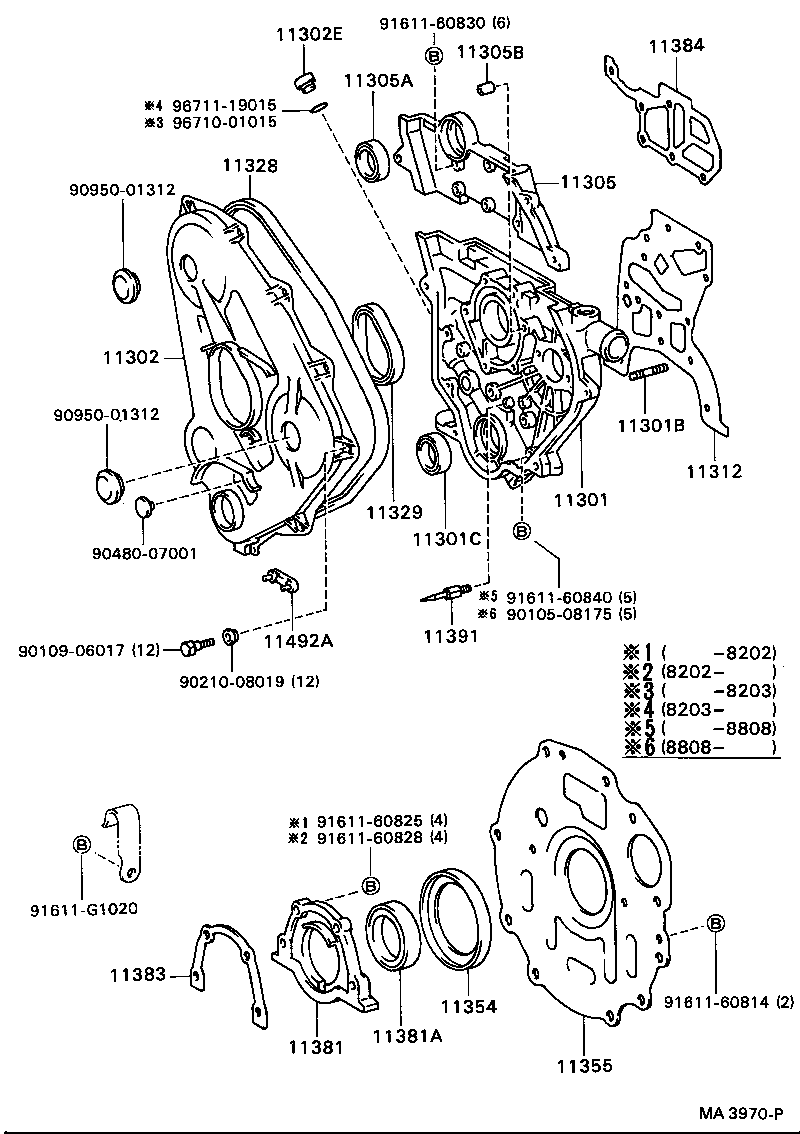

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11381 11381A 11383 11384 11391 11492A 9010508175 9010906017 9021008019 9048007001 9095001312 9095001312 9161160814 9161160825 9161160828 9161160830 9161160840 91611G1020 9671001015 9671119015
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12RJ..RN30,33,35,4#

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12RJ..RN30,33,35,4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12RJ..RN30,33,35,4#

 1
11391 - POINTER, TIMING
11391-31021

12RJ..RN30,33,35,4#

 1
Common parts
90105-08175
90109-06017
90210-08019
90480-07001
90950-01312
91611-60814
91611-60825
91611-60828
91611-60830
91611-60840
91611-G1020
96710-01015
96711-19015
