RN40-KDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

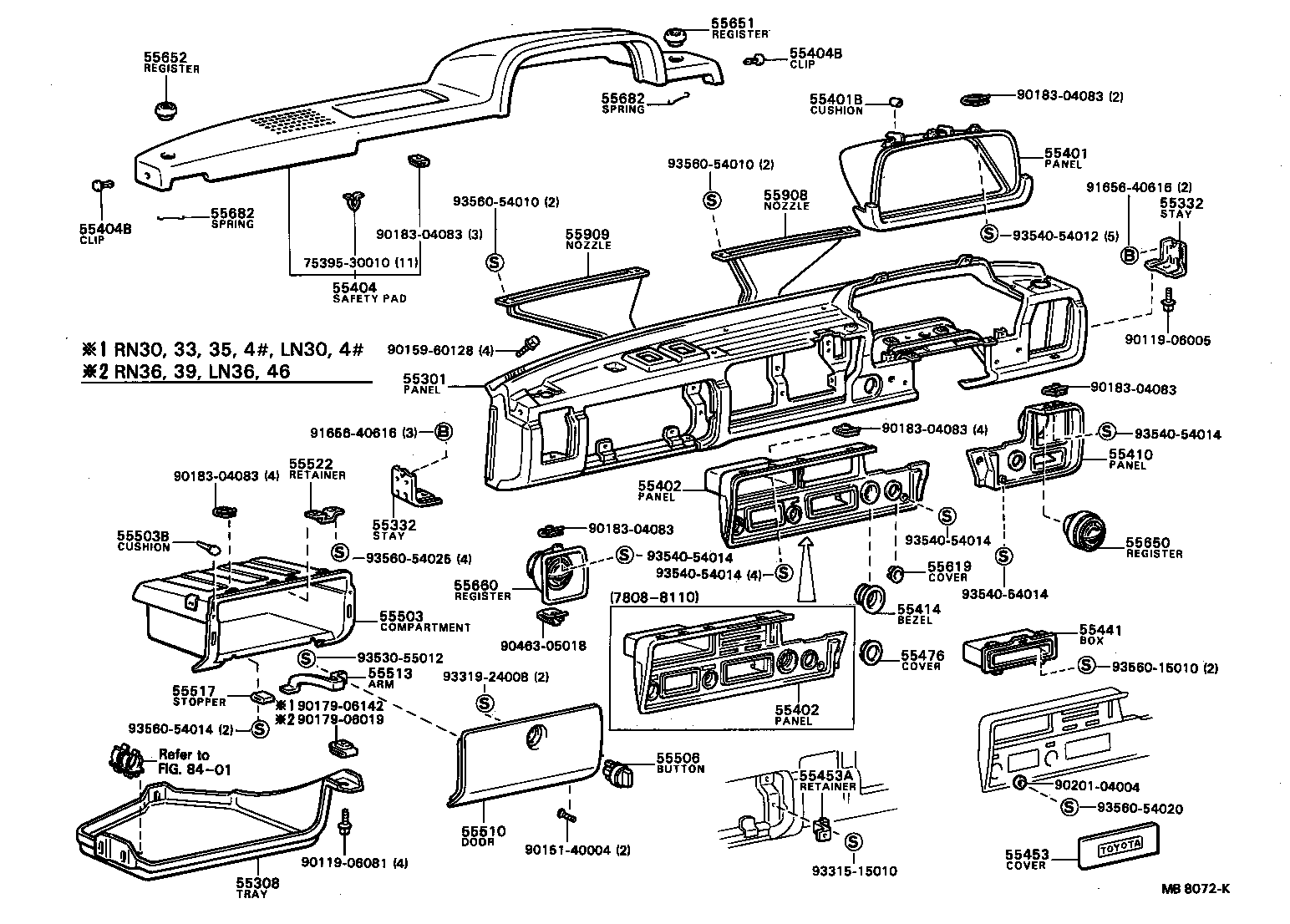

Click highlighted areas on diagram

diagram 55301 55308 55332 55332 55401 55401B 55402 55402 55404 55404B 55404B 55410 55414 55441 55453 55453A 55476 55503 55503B 55506 55510 55513 55517 55522 55619 55650 55651 55652 55660 55682 55682 55908 55909 7539530010 8401 9011906005 9011906081 9015140004 9015960128 9017906019 9017906142 9018304083 9018304083 9018304083 9018304083 9018304083 9018304083 9020104004 9046305018 9165640616 9165640616 9331515010 9331924008 9353055012 9354054012 9354054014 9354054014 9354054014 9354054014 9354054014 9356015010 9356054010 9356054010 9356054014 9356054020 9356054025
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-89113

LN30,40,RN3#,4#

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55611-89101

LN3#,4#,RN3#,4#

 1
55332 - STAY, INSTRUMENT PANEL
55326-89101

LN3#,4#,RN3#,4#

RH

 1
55327-89102

LN3#,4#,RN3#,4#

LH

 1
55332 - STAY, INSTRUMENT PANEL
55326-89101

LN3#,4#,RN3#,4#

RH

 1
55327-89102

LN3#,4#,RN3#,4#

LH

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55411-8910304

LN30,40,41,RN30,33,35,4#

BLUE,BLUE,TRIM8#

 1
55411-8910305

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
55411-8910301

LN3#,4#,RN3#,4#

BLACK,BLACK,TRIM2#

 1
55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-89101

LN3#,4#,RN3#,4#

 2
55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER
55434-89104

LN30,40,RN3#,4#..DLX

 1
55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER
55434-89104

LN30,40,RN3#,4#..DLX

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-8910204

LN30,40,RN30,33,4#..DLX,SDX

BLUE,BLUE,TRIM8#

 1
55401-8910201

LN30,40,RN3#,4#..DLX,SDX

BLACK,BLACK,TRIM2#

 1
55401-8910205

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
55404B - CLIP, SAFETY PAD SET
55466-8910101

LN3#,4#,RN3#,4#

BLACK,BLACK,TRIM2#

 2
55466-8910105

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 2
55466-8910104

LN30,40,41,RN30,33,35,4#

BLUE,BLUE,TRIM8#

 2
55404B - CLIP, SAFETY PAD SET
55466-8910101

LN3#,4#,RN3#,4#

BLACK,BLACK,TRIM2#

 2
55466-8910105

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 2
55466-8910104

LN30,40,41,RN30,33,35,4#

BLUE,BLUE,TRIM8#

 2
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-89108

LN30,40,RN3#,4#..DLX,STD

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-89101

LN3#,4#,RN3#,4#

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55506-89101

LN3#,4#,RN3#,4#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-04006

RN30,40

 2
55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55560-12020

LN3#,4#,RN3#,4#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-8910401

LN3#,4#,RN3#,4#

BLACK,BLACK,TRIM2#

 1
55501-8910404

LN30,40,41,RN30,33,35,4#

BLUE,BLUE,TRIM8#

 1
55501-8910405

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
55513 - ARM, GLOVE COMPARTMENT DOOR CHECK
55556-89101

LN3#,4#,RN3#,4#

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-89104

LN3#,4#,RN3#,4#

 1
55522 - RETAINER, GLOVE COMPARTMENT MALE
55561-89102

LN3#,4#,RN3#,4#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-89103

LN3#,4#,RN3#,4#

 1
55651 - REGISTER, INSTRUMENT PANEL, NO.1
55671-8911204

LN30,40,RN30,33,4#..DLX,SDX

BLUE,BLUE,TRIM8#

 1
55671-8911201

LN30,40,RN3#,4#..DLX,SDX

BLACK,BLACK,TRIM2#

 1
55671-8911205

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
55652 - REGISTER, INSTRUMENT PANEL, NO.2
55671-8911301

LN30,40,RN3#,4#..DLX,SDX

BLACK,BLACK,TRIM2#

 1
55671-8911304

LN30,40,RN30,33,4#..DLX,SDX

BLUE,BLUE,TRIM8#

 1
55671-8911305

LN30,40,RN3#,4#..DLX,SDX

BEIGE,BEIGE,TRIM4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-8910103

LN30,40,RN3#,4#..DLX,STD

DARK GRAY-M,GRAY,TRIM2#,4#,8#

 1
55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55686-89101

LN30,40,RN3#,4#..DLX,SDX

 2
55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55686-89101

LN30,40,RN3#,4#..DLX,SDX

 2
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-89101

LN3#,4#,RN3#,4#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-89101

LN3#,4#,RN3#,4#

 1
Common parts
75395-30010
90119-06005
90119-06081
90151-40004
90159-60128
90179-06019
90179-06142
90183-04083
90201-04004
90463-05018
91656-40616
93315-15010
93319-24008
93530-55012
93540-54012
93540-54014
93560-15010
93560-54010
93560-54014
93560-54020
93560-54025
Linked diagrams
8401
