RN40-KDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12RJ,18RJ

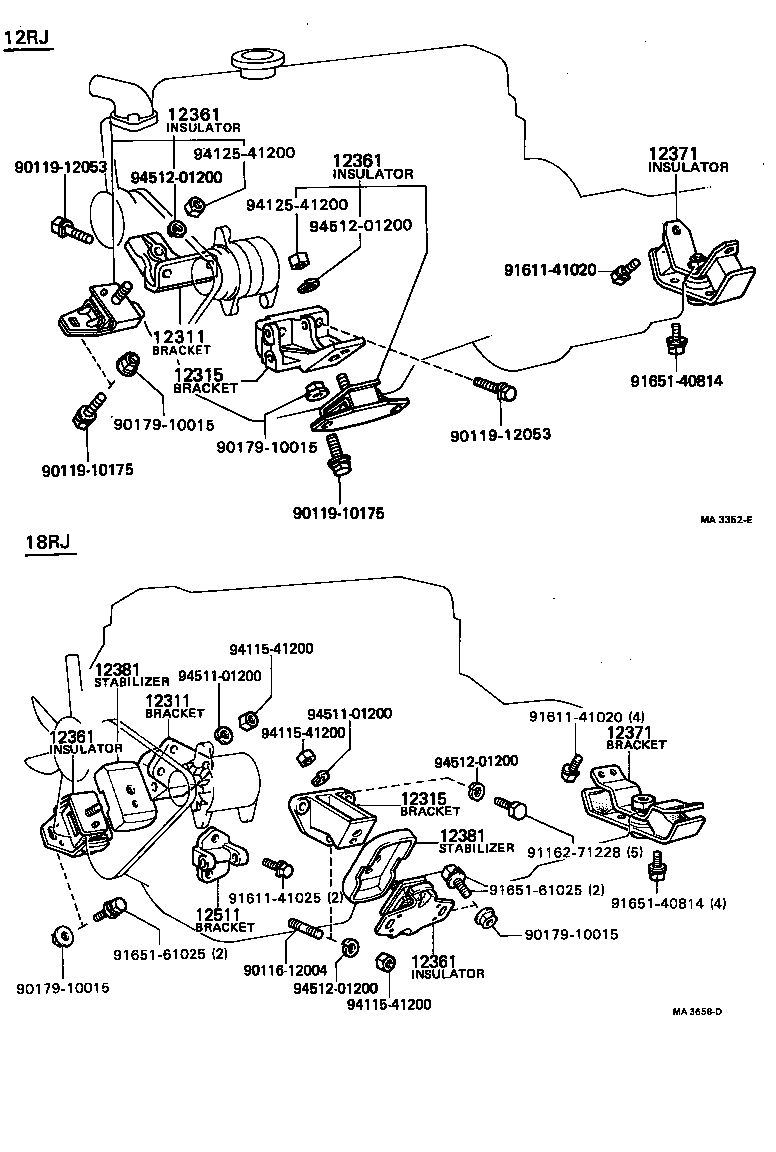

Click highlighted areas on diagram

MA3352E,MA3658D

diagram 12311 12311 12315 12315 12361 12361 12361 12361 12371 12371 12381 12381 12511 9011612004 9011910175 9011910175 9011912053 9011912053 9017910015 9017910015 9017910015 9017910015 9116271228 9161141020 9161141020 9161141025 9165140814 9165140814 9165161025 9165161025 9411541200 9411541200 9411541200 9412541200 9412541200 9451101200 9451101200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12RJ..RN30,33,35,4#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12RJ..RN30,33,35,4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-30021

12RJ..RN30,33,35,4#

COLD SPEC

 1
12315-31011

12RJ..RN30,33,35,4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-30021

12RJ..RN30,33,35,4#

COLD SPEC

 1
12315-31011

12RJ..RN30,33,35,4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12RJ..RN30,33,35,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12RJ..RN30,33,35,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12RJ..RN30,33,35,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12RJ..RN30,33,35,4#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31040

12RJ..RN30,33,35,4#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31040

12RJ..RN30,33,35,4#

 1
Common parts
90116-12004
90119-10175
90119-12053
90179-10015
91162-71228
91611-41020
91611-41025
91651-40814
91651-61025
94115-41200
94125-41200
94511-01200
94512-01200
