RN40-JRSJ3 (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

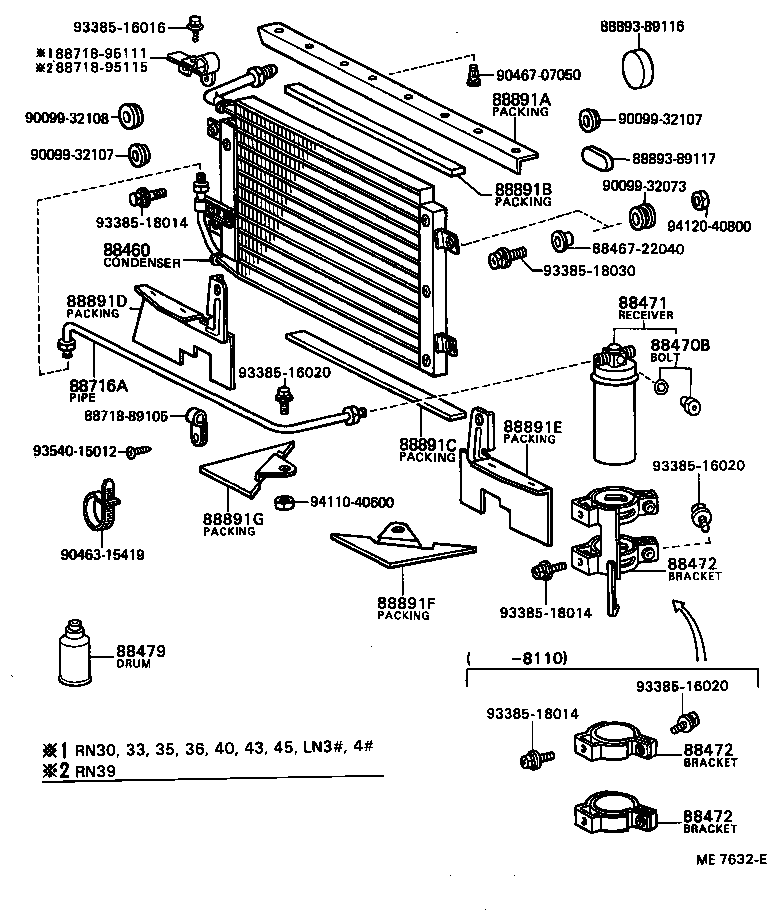

ILLUST NO. 1 OF 2(7808- )

Click highlighted areas on diagram

diagram 88460 8846722040 88470B 88471 88472 88472 88472 88479 88716A 8871889105 8871895111 8871895115 88891A 88891B 88891C 88891D 88891E 88891F 88891G 8889389116 8889389117 9009932073 9009932107 9009932107 9009932108 9046315419 9046707050 9338516016 9338516020 9338516020 9338516020 9338518014 9338518014 9338518014 9338518030 9354015012 9411040600 9412040800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89107

LN3#,4#,RN3#,4#

 1
88470B - BOLT, FUSE
90099-04579

LN3#,40,46,RN3#,4#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88470-20070

RN3#,4#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89104

RN30,40

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89104

RN30,40

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89104

RN30,40

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LN3#,4#,RN3#,4#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89119

LN3#,40,46,RN3#,4#

 1
88891A - PACKING A (FOR COOLER)
88893-89113

LN3#,40,46,RN30,33,35,36,4#

 1
88891B - PACKING B (FOR COOLER)
88893-89114

RN3#,4#

 1
88891C - PACKING C (FOR COOLER)
88893-89115

RN30,33,36,39,40,43

 1
88891D - PACKING D (FOR COOLER)
88898-89109

LN3#,40,46,RN3#,4#

 1
88891E - PACKING E (FOR COOLER)
88898-89110

LN3#,40,46,RN3#,4#

 1
88891F - PACKING F (FOR COOLER)
88898-89111

RN30,40

 1
88891G - PACKING G (FOR COOLER)
88898-89112

RN30,40

 1
Common parts
88467-22040
88718-89105
88718-95111
88718-95115
88893-89116
88893-89117
90099-32073
90099-32107
90099-32108
90463-15419
90467-07050
93385-16016
93385-16020
93385-18014
93385-18030
93540-15012
94110-40600
94120-40800

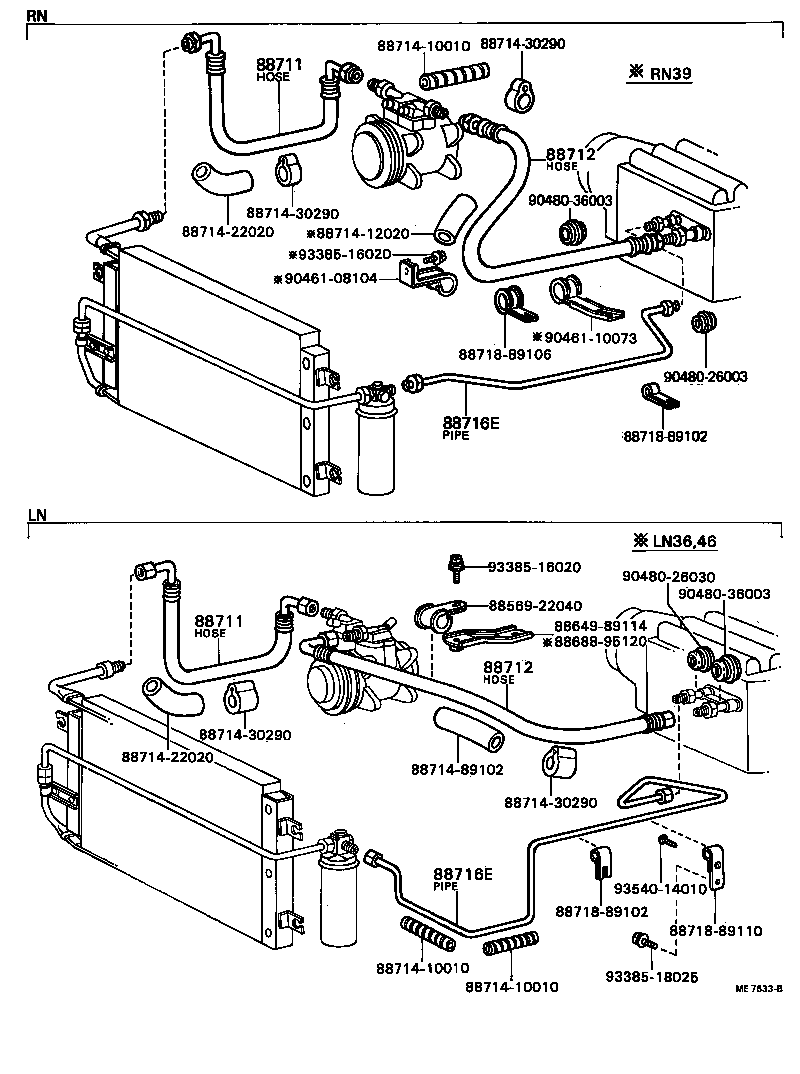

ILLUST NO. 2 OF 2(7808- )

Click highlighted areas on diagram

diagram 8856922040 8864989114 8868895120 88711 88711 88712 88712 8871410010 8871410010 8871410010 8871412020 8871422020 8871422020 8871430290 8871430290 8871430290 8871430290 8871489102 88716E 88716E 8871889102 8871889102 8871889106 8871889110 9046108104 9046110073 9048026003 9048026030 9048036003 9048036003 9338516020 9338516020 9338518025 9354014010
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89109

RN30,33,4#

 1
88711-89109

LN30,40

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89109

RN30,33,4#

 1
88711-89109

LN30,40

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89106

RN30,33,35,4#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89106

RN30,33,35,4#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89121

RN30,33,35,4#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89121

RN30,33,35,4#

 1
Common parts
88569-22040
88649-89114
88688-95120
88714-10010
88714-12020
88714-22020
88714-30290
88714-89102
88718-89102
88718-89106
88718-89110
90461-08104
90461-10073
90480-26003
90480-26030
90480-36003
93385-16020
93385-18025
93540-14010
