RN40-JRSJ3 (1978)
Toyota Hilux
Production
Aug 1978
-
Dec 1979
Engine
12RJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )LN30,4#,RN30,33,35,4#

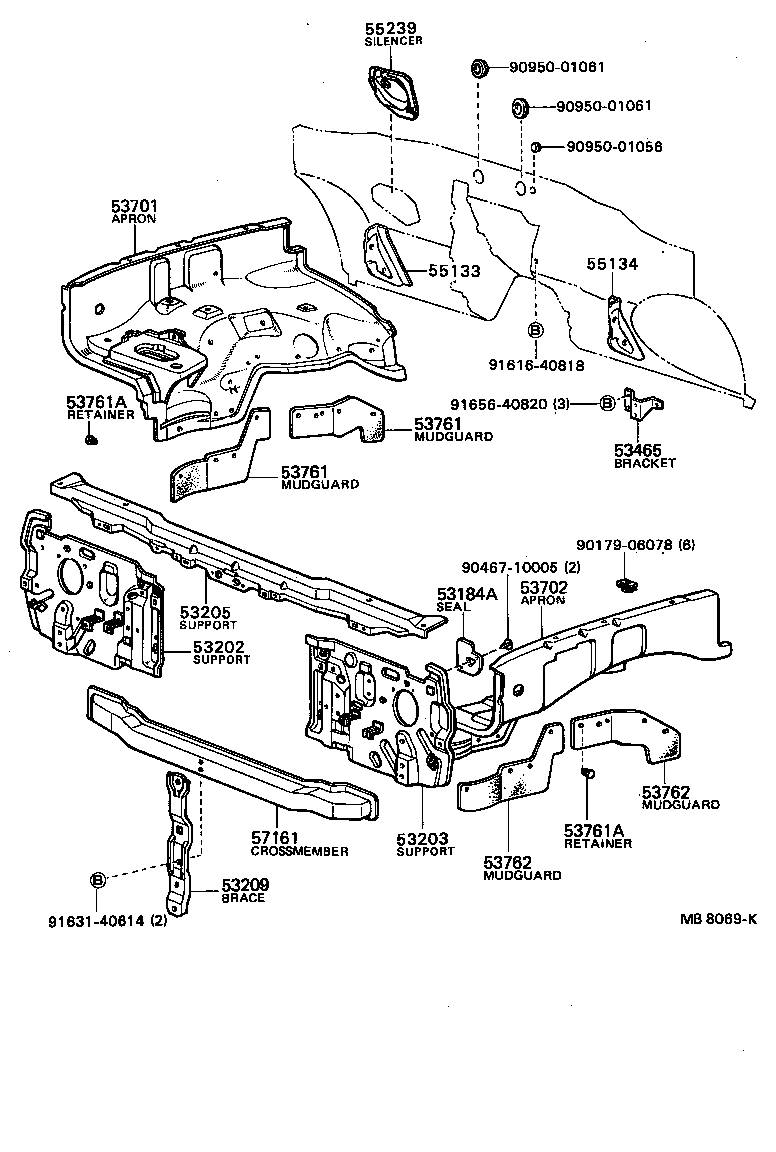

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-89109 |
LN30,40,RN30,33,4# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-89109 |
LN30,40,RN30,33,4# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-89108 |
RN30,40 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53217-89105 |
LN30,40,RN30,33,4# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89115 |
RN30,33,35,4# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89132 |
RN30,33,4# |
1 | ||
| 53761 - MUDGUARD, RH | ||||
| 53737-89102 |
LN30,40,41,RN30,33,35,4# RR |
1 | ||
| 53736-89105 |
LN30,40,RN30,33,4# FR |
1 | ||
| 53761 - MUDGUARD, RH | ||||
| 53737-89102 |
LN30,40,41,RN30,33,35,4# RR |
1 | ||
| 53736-89105 |
LN30,40,RN30,33,4# FR |
1 | ||
| 53761A - RETAINER(FOR MUDGUARD) | ||||
| 90467-10005 |
LN30,40,41,RN30,33,35,4# |
16 | ||
| 53761A - RETAINER(FOR MUDGUARD) | ||||
| 90467-10005 |
LN30,40,41,RN30,33,35,4# |
16 | ||
| 53762 - MUDGUARD, LH | ||||
| 53736-89105 |
LN30,40,RN30,33,4# FR |
1 | ||
| 53737-89102 |
RN30,33,35,4# RR |
1 | ||
| 53762 - MUDGUARD, LH | ||||
| 53736-89105 |
LN30,40,RN30,33,4# FR |
1 | ||
| 53737-89102 |
RN30,33,35,4# RR |
1 | ||
| 55239 - SILENCER, STEERING COLUMN HOLE COVER | ||||
| 55210-89127 |
LN30,40,41,RN30,33,35,4#..4H,5H |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-89101 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 90467-10005 | ||||
| 90950-01056 | ||||
| 90950-01061 | ||||
| 91616-40818 | ||||
| 91631-40614 | ||||
| 91656-40820 | ||||
