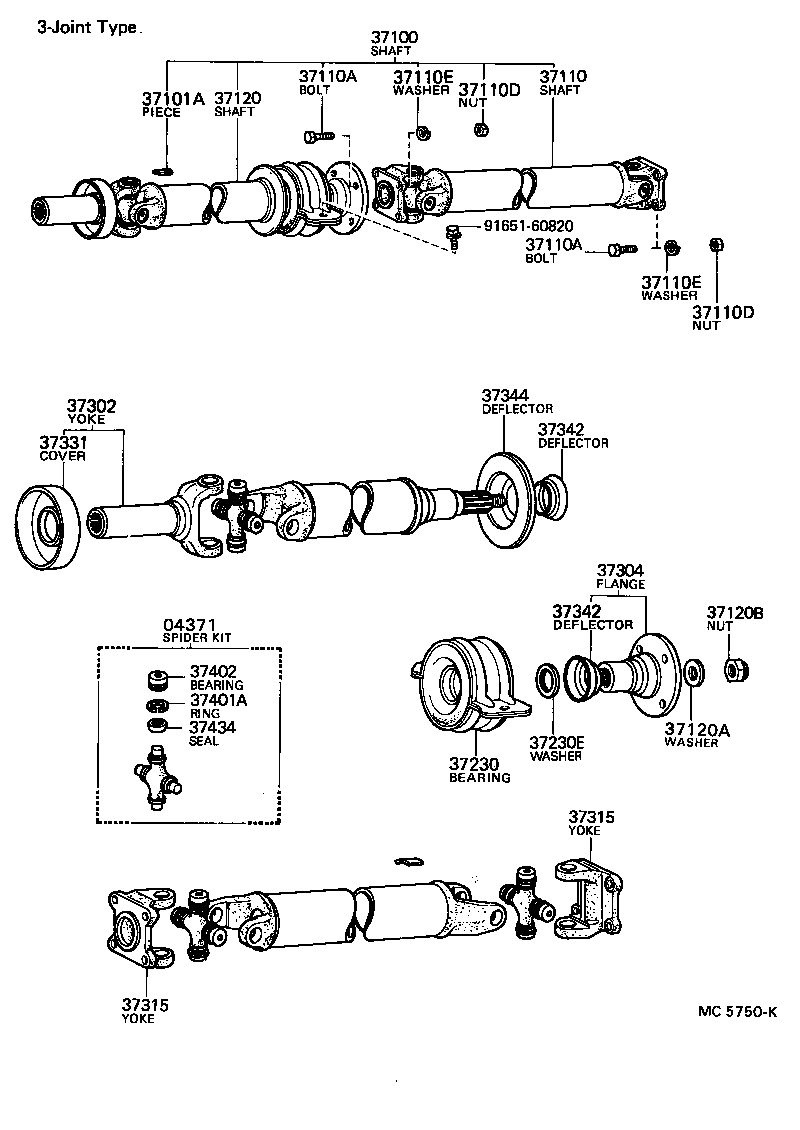

Toyota Hilux RN40 PROPELLER SHAFT & UNIVERSAL JOINT

Part #	Description	Period	Qty
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-25010	LN30,40,41,RN30,33,35,4#	08/1978 - 09/1988	3
04371-30011	RN30,40	08/1978 - 08/1978	2
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-35110	LN40,RN4#	08/1978 - 10/1983	1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132	LN30,40,41,RN30,33,35,4# 10G,長さ=20.7,10G,PROJECTION	08/1978 - 09/1988	1
90937-01029	LN30,40,41,RN30,33,35,4# 5G,SPOT	08/1978 - 09/1988	1
90937-01004	LN30,40,41,RN30,33,35,4# 20G,厚さ=1.2,20G,SPOT	08/1978 - 09/1988	1
90937-01030	LN30,40,41,RN30,33,35,4# 15G,SPOT	08/1978 - 09/1988	1
90937-01003	LN30,40,41,RN30,33,35,4# 8G,厚さ=1.2,10G,SPOT	08/1978 - 09/1988	1
90937-01140	LN30,40,41,RN30,33,35,4# 30G,長さ=62.2,30G,PROJECTION	08/1978 - 09/1988	1
90937-01148	LN30,40,41,RN30,33,35,4# 4G,厚さ=2.0,4G,PROJECTION	08/1978 - 09/1988	1
90937-01150	LN30,40,41,RN30,33,35,4# 8G,長さ=16.6,8G,PROJECTION	08/1978 - 09/1988	1
90937-01005	LN30,40,41,RN30,33,35,4# 30G,厚さ=1.2,30G,SPOT	08/1978 - 09/1988	1
90937-01152	LN30,40,41,RN30,33,35,4# 14G,長さ=29.0,14G,PROJECTION	08/1978 - 09/1988	1
90937-01136	LN30,40,41,RN30,33,35,4# 20G,長さ=41.4,20G,PROJECTION	08/1978 - 09/1988	1
90937-01155	LN30,40,41,RN30,33,35,4# 22G,長さ=45.6,22G,PROJECTION	08/1978 - 09/1988	1
90937-01031	LN30,40,41,RN30,33,35,4# 25G,SPOT	08/1978 - 09/1988	1
90937-01147	LN30,40,41,RN30,33,35,4# 2G,厚さ=2.0,2G,PROJECTION	08/1978 - 09/1988	1
90937-01154	LN30,40,41,RN30,33,35,4# 18G,長さ=37.3,18G,PROJECTION	08/1978 - 09/1988	1
90937-01158	LN30,40,41,RN30,33,35,4# 28G,長さ=58.1,28G,PROJECTION	08/1978 - 09/1988	1
90937-01153	LN30,40,41,RN30,33,35,4# 16G,長さ=33.2,16G,PROJECTION	08/1978 - 09/1988	1
90937-01149	LN30,40,41,RN30,33,35,4# 6G,長さ=12.4,6G,PROJECTION	08/1978 - 09/1988	1
90937-01157	LN30,40,41,RN30,33,35,4# 26G,長さ=53.9,26G,PROJECTION	08/1978 - 09/1988	1
90937-01156	LN30,40,41,RN30,33,35,4# 24G,長さ=49.7,24G,PROJECTION	08/1978 - 09/1988	1
90937-01151	LN30,40,41,RN30,33,35,4# 12G,長さ=24.9,12G,PROJECTION	08/1978 - 09/1988	1
37110 - SHAFT ASSY, PROPELLER
37110-35110	LN40,RN4#	08/1978 - 10/1983	1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214	RN30,40 *8−1.25PX25−12	08/1978 - 08/1979	8
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214	RN30,40 *8−1.25PX25−12	08/1978 - 08/1979	8
37110D - NUT (FOR PROPELLER SHAFT)
90170-08007	RN30,40	08/1978 - 08/1979	8
37110D - NUT (FOR PROPELLER SHAFT)
90170-08007	RN30,40	08/1978 - 08/1979	8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-00800	LN36,46,RN3#,4#	08/1978 - 10/1983	12
37110E - WASHER (FOR PROPELLER SHAFT)
94512-00800	LN36,46,RN3#,4#	08/1978 - 10/1983	12
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-35080	LN40,RN4#	08/1978 - 10/1983	1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005	LN40,41,RN4# 外径=33.5,厚さ=4.0	08/1978 - 09/1988	1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20001	LN40,RN4#	08/1978 - 10/1983	1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35030	LN40,41,RN4#	08/1978 - 09/1988	1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-28001	LN40,RN4#	08/1978 - 10/1983	1
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35010	LN30,40,41,RN30,33,35,4#	08/1978 - 09/1988	1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35021	LN40,RN4#	08/1978 - 10/1983	1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021	LN30,40,RN30,33,35,4#	08/1978 - 10/1983	2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021	LN30,40,RN30,33,35,4#	08/1978 - 10/1983	2
37331 - COVER, SLIDING SHAFT DUST
37331-30010	LN30,40,RN30,33,35,4#	08/1978 - 09/1988	1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010	LN40,41,RN4#	08/1978 - 09/1988	2
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010	LN40,41,RN4#	08/1978 - 09/1988	2
37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37344-35020	LN40,RN4#	08/1978 - 10/1983	1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-27001	RN30,40 T=1.20	08/1978 - 08/1978	12
90521-27003	RN30,40 T=1.30	08/1978 - 08/1978	12
90521-29071	LN30,40,41,RN30,33,35,4# 厚さ=2.425−2.475,T=2.45	08/1978 - 09/1988	12
90521-27002	RN30,40 T=1.25	08/1978 - 08/1978	12
90521-29072	LN30,40,41,RN30,33,35,4# 厚さ=2.475−2.525,T=2.50	08/1978 - 09/1988	12
90521-27004	RN30,40 T=1.35	08/1978 - 08/1978	12
90521-29070	LN30,40,41,RN30,33,35,4# 厚さ=2.375−2.425,T=2.40	08/1978 - 09/1988	12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-35031	RN30,40	08/1978 - 08/1978	12
37402-25020	LN30,40,41,RN30,33,35,4#	08/1978 - 09/1988	12
37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING
37434-25010	LN30,40,41,RN30,33,35,4#	08/1978 - 09/1988	12
37343-25010	RN30,40	08/1978 - 08/1978	12
Common parts
91651-60820

RN40-JRSJ3 (1978)

(7808- )LN40,41,RN4#
