RN40-JRSJ3 (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8110) ; (8110-8508)RN3#,45

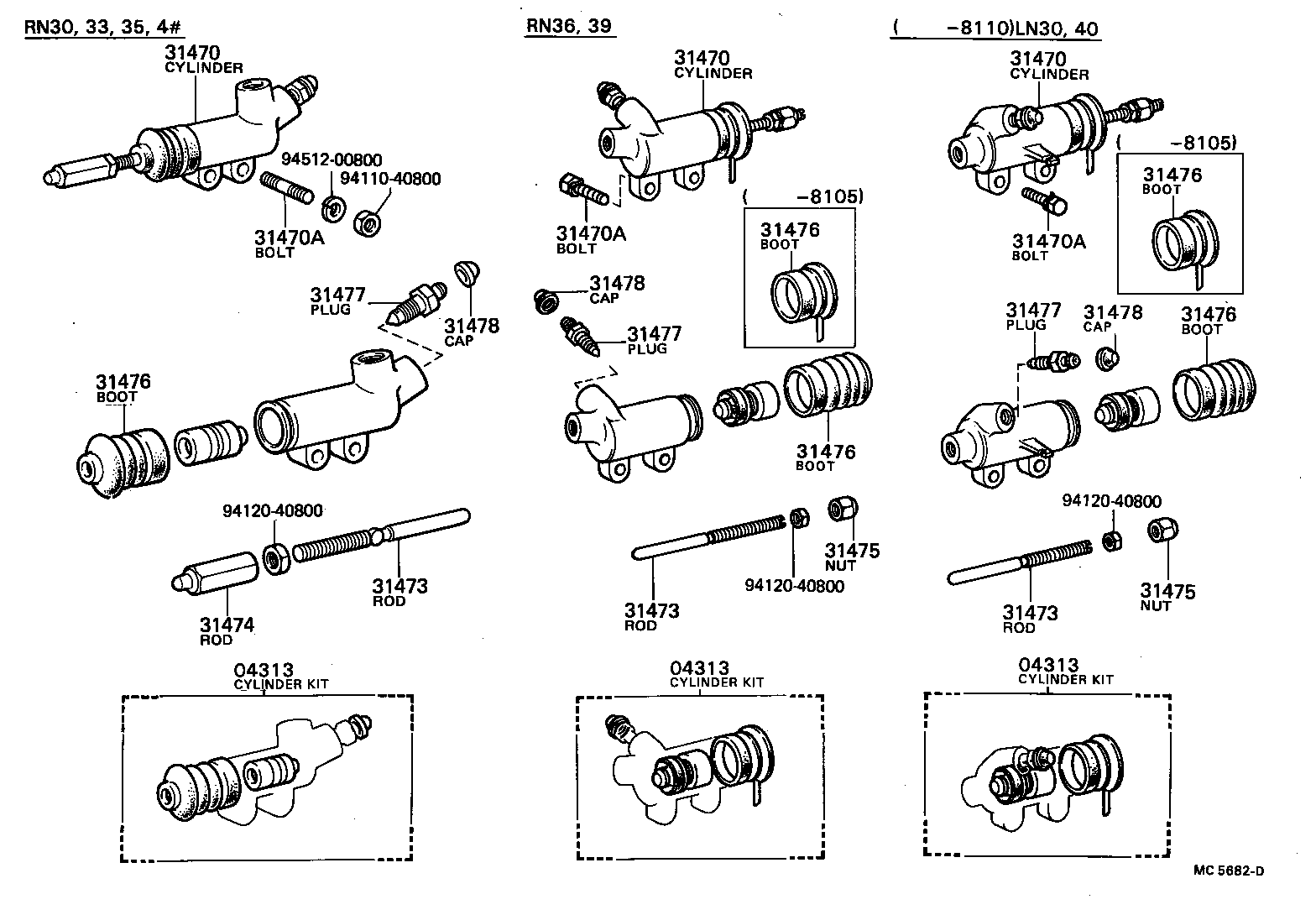

Click highlighted areas on diagram

diagram 04313 04313 04313 31470 31470 31470 31470A 31470A 31470A 31473 31473 31473 31474 31475 31475 31476 31476 31476 31476 31476 31477 31477 31477 31478 31478 31478 9411040800 9412040800 9412040800 9412040800 9451200800
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-35030

RN30,33,35,4#

 1
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-35030

RN30,33,35,4#

 1
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-35030

RN30,33,35,4#

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35030

RN30,33,35,4#

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35030

RN30,33,35,4#

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35030

RN30,33,35,4#

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08018

RN30,33,4#

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08018

RN30,33,4#

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08018

RN30,33,4#

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-35030

RN30,33,35,4#

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-35030

RN30,33,35,4#

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-35030

RN30,33,35,4#

 1
31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2
31475-35010

RN30,33,35,4#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-35020

RN30,33,35,4#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-35020

RN30,33,35,4#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-35020

RN30,33,35,4#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-35020

RN30,33,35,4#

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-35020

RN30,33,35,4#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
Common parts
94110-40800
94120-40800
94512-00800
