RN40-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

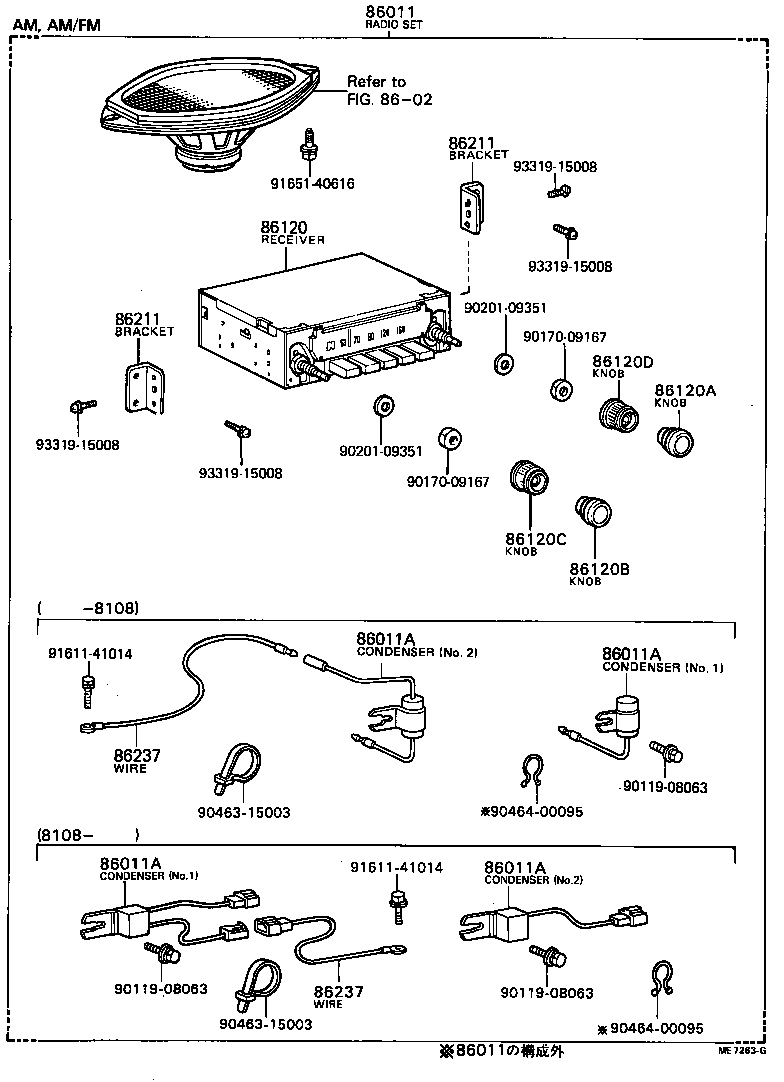

(7808- )

Click highlighted areas on diagram

diagram 86011 86011 86011A 86011A 86011A 86011A 8602 86120 86120A 86120B 86120C 86120D 86211 86211 86237 86237 9011908063 9011908063 9011908063 9017009167 9017009167 9020109351 9020109351 9046315003 9046315003 9046400095 9046400095 9161141014 9161141014 9165140616 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-39045

LN30,40,RN3#,4#

12V,AM/FM

 1
86011-39035

LN30,40,RN3#,4#

12V,AM

 1
86011 - RADIO & SETTING PARTS SET
86011-39045

LN30,40,RN3#,4#

12V,AM/FM

 1
86011-39035

LN30,40,RN3#,4#

12V,AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN30,40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN30,40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN30,40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN30,40,RN3#,4#

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-95A00

LN30,40,RN3#,4#

12V,AM

 1
86120-95A02

LN30,40,RN3#,4#

12V,AM/FM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-95A00

LN30,40,RN3#,4#

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-95A00

LN30,40,RN3#,4#

 1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-95A00

LN30,40,RN3#,4#

AM

 1
86120D - KNOB, RADIO RECEIVER TONE
86124-95A00

LN30,40,RN3#,4#

 1
86211 - BRACKET, RADIO, NO.1
86211-89104

LN30,40,RN3#,4#

 2
86211 - BRACKET, RADIO, NO.1
86211-89104

LN30,40,RN3#,4#

 2
86237 - WIRE, CONDENSER
86237-89101

RN3#,4#

 1
86237 - WIRE, CONDENSER
86237-89101

RN3#,4#

 1
Common parts
90119-08063
90170-09167
90201-09351
90463-15003
90464-00095
91611-41014
91651-40616
93319-15008
Linked diagrams
8602

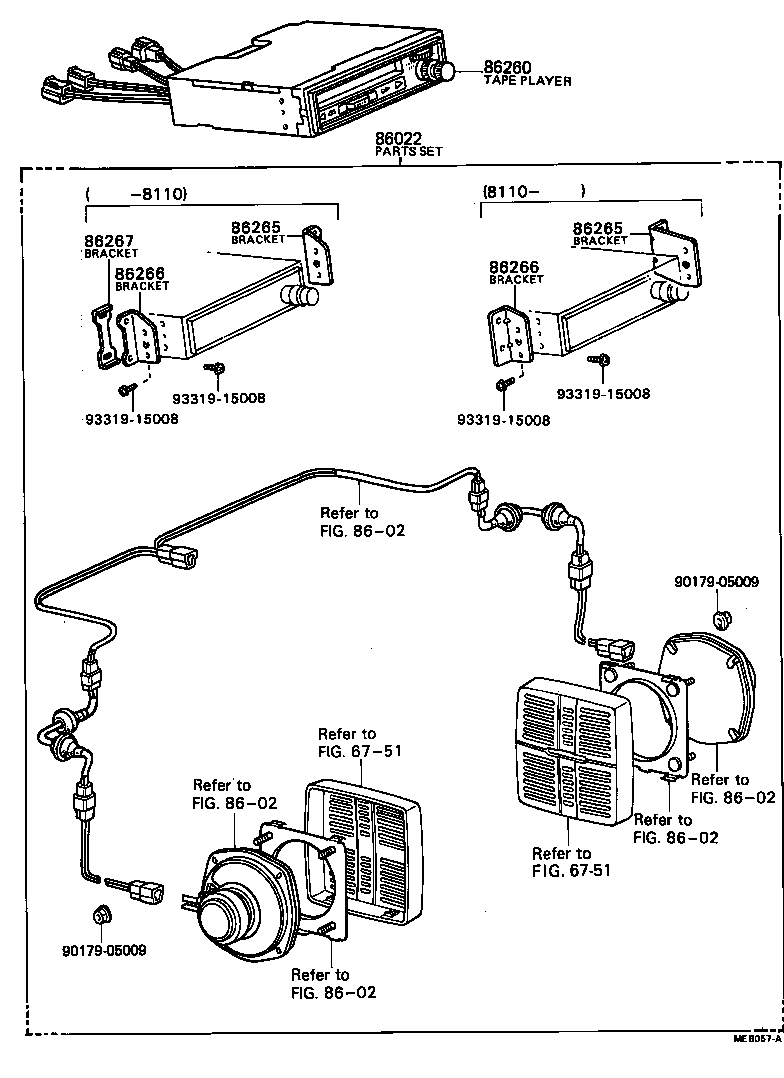

(7808- )

Click highlighted areas on diagram

diagram 6751 6751 8602 8602 8602 8602 8602 86022 86260 86265 86265 86266 86266 86267 9017905009 9017905009 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-39055

LN30,40,RN3#,4#

12V

 1
86260 - TAPE PLAYER ASSY
86260-14090

RN30,40

12V

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

LN30,40,RN3#,4#

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

LN30,40,RN3#,4#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

LN30,40,RN3#,4#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

LN30,40,RN3#,4#

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-89106

LN30,40,RN3#,4#

 1
Common parts
90179-05009
93319-15008
Linked diagrams
6751
8602
