RN40-JRSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8110)

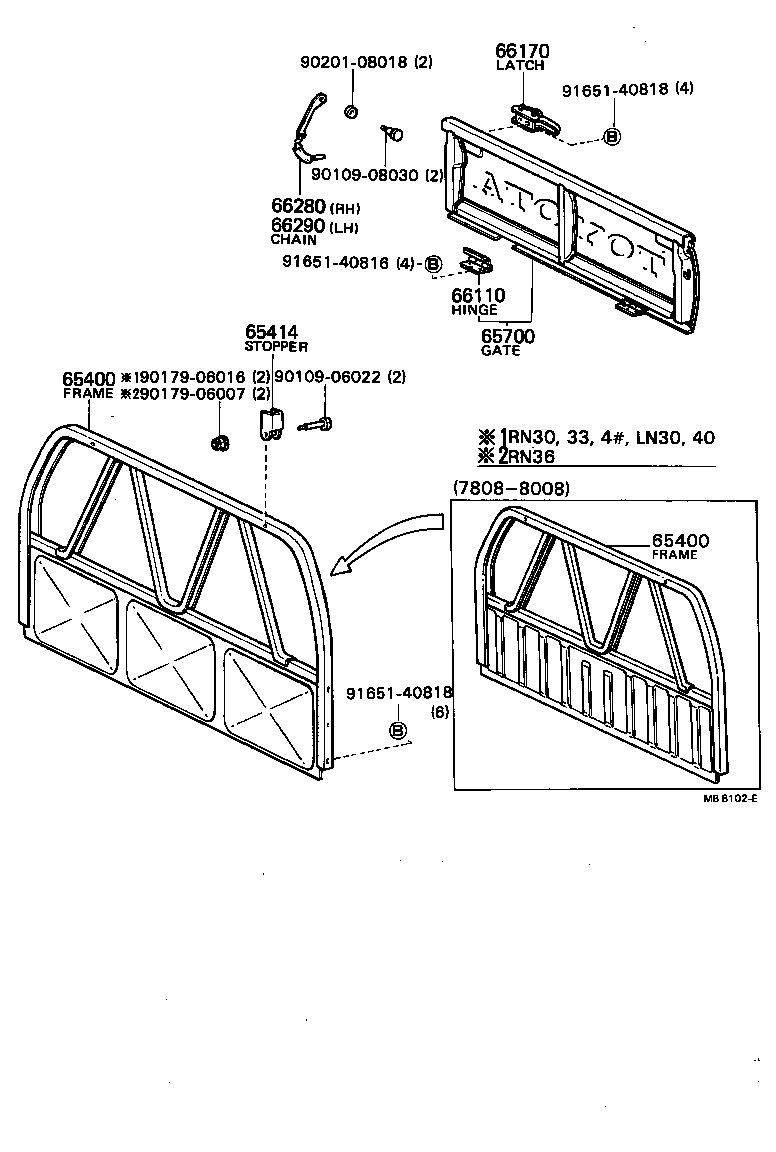

Click highlighted areas on diagram

diagram 65400 65400 65414 65700 66110 66170 66280 66290 9010906022 9010908030 9017906007 9017906016 9020108018 9165140816 9165140818 9165140818
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65470-89104

LN30,40,RN3#,4#

W/GUARD FRAME

 1
65400 - FRAME ASSY, REAR BODY GUARD
65470-89104

LN30,40,RN3#,4#

W/GUARD FRAME

 1
65414 - STOPPER, GUARD FRAME
65414-89102

LN3#,4#,RN3#,4#..CBU

W/GUARD FRAME

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-89115

LN30,40,RN3#,4#

 1
65700-89116

LN30,40,RN3#,4#

TOYOTA

 1
66110 - HINGE ASSY, TAIL GATE
66110-89102

LN30,40,RN3#,4#

 2
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-89104

LN30,40,RN3#,4#

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-89105

LN30,40,RN3#,4#

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-89105

LN30,40,RN3#,4#

 1
Common parts
90109-06022
90109-08030
90179-06007
90179-06016
90201-08018
91651-40816
91651-40818
