RN40-JFJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

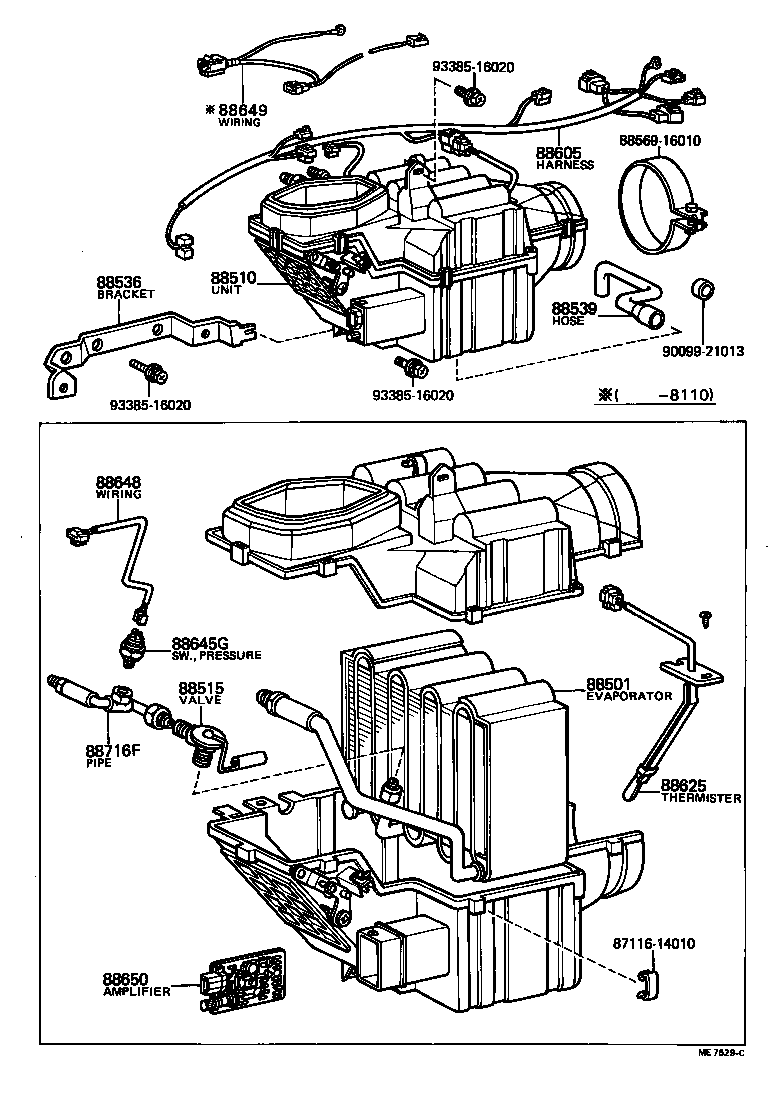

Click highlighted areas on diagram

diagram 8711614010 88501 88510 88515 88536 88539 8856916010 88605 88625 88645G 88648 88649 88650 88716F 9009921013 9338516020 9338516020 9338516020
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89101

LN30,40,RN3#,4#

 1
88510 - UNIT ASSY, COOLER
88510-89109

LN30,40,RN3#,4#

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

LN3#,4#,RN3#,4#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-89120

LN3#,4#,RN3#,4#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89101

LN3#,4#,RN3#,4#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89110

RN3#,4#

 1
88625 - THERMISTOR, COOLER, NO.1
88626-89101

LN3#,4#,RN3#,4#

 1
88645G - SWITCH, PRESSURE
88645-22010

LN3#,4#,RN30,33,36,40,43

 1
88648 - WIRING, COOLER, NO.1
88648-12110

LN30,40,RN3#,4#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20100

LN3#,4#,RN30,33,36,40,43

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89124

LN3#,4#,RN3#,4#

 1
Common parts
87116-14010
88569-16010
90099-21013
93385-16020
