RN40-JFJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

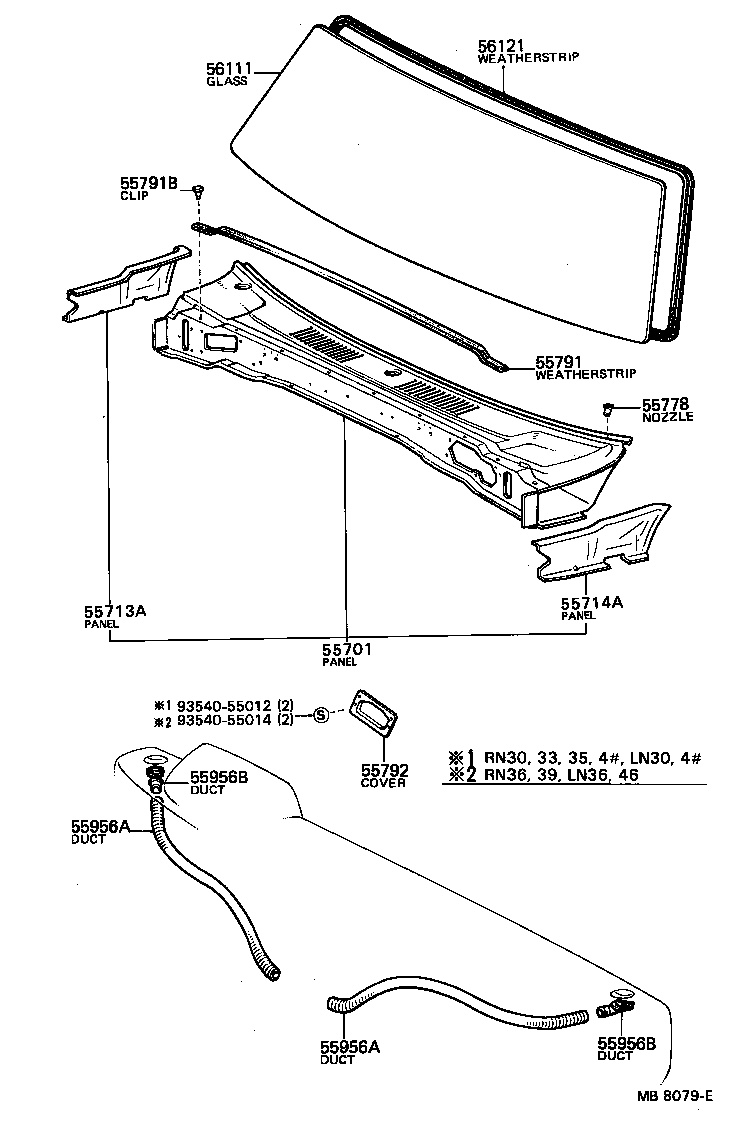

Click highlighted areas on diagram

diagram 55701 55713A 55714A 55778 55791 55791B 55792 55956A 55956A 55956B 55956B 56111 56121 9354055012 9354055014
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-89101

RN30,33,4#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89103

LN30,40,41,RN30,33,35,4#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89103

LN30,40,41,RN30,33,35,4#

 1
55778 - NOZZLE, COWL WATER EXTRACT
55798-89102

LN3#,4#,RN3#,4#

 2
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-89104

LN3#,4#,RN3#,4#

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-08008

LN3#,4#,RN3#,4#

 8
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-89105

LN3#,4#,RN3#,4#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-89101

LN30,40,RN3#,4#..DLX,SDX

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-89101

LN30,40,RN3#,4#..DLX,SDX

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55961-89101

LN30,40,RN3#,4#..DLX,SDX

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55961-89101

LN30,40,RN3#,4#..DLX,SDX

 2
56111 - GLASS, WINDSHIELD
56111-89115

LN3#,4#,RN3#,4#..DLX,SDX

*TT,T=5.0,*TT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-89112

LN3#,4#,RN3#,4#..DLX,SDX

 1
Common parts
93540-55012
93540-55014
