RN40-JDSJ3 (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

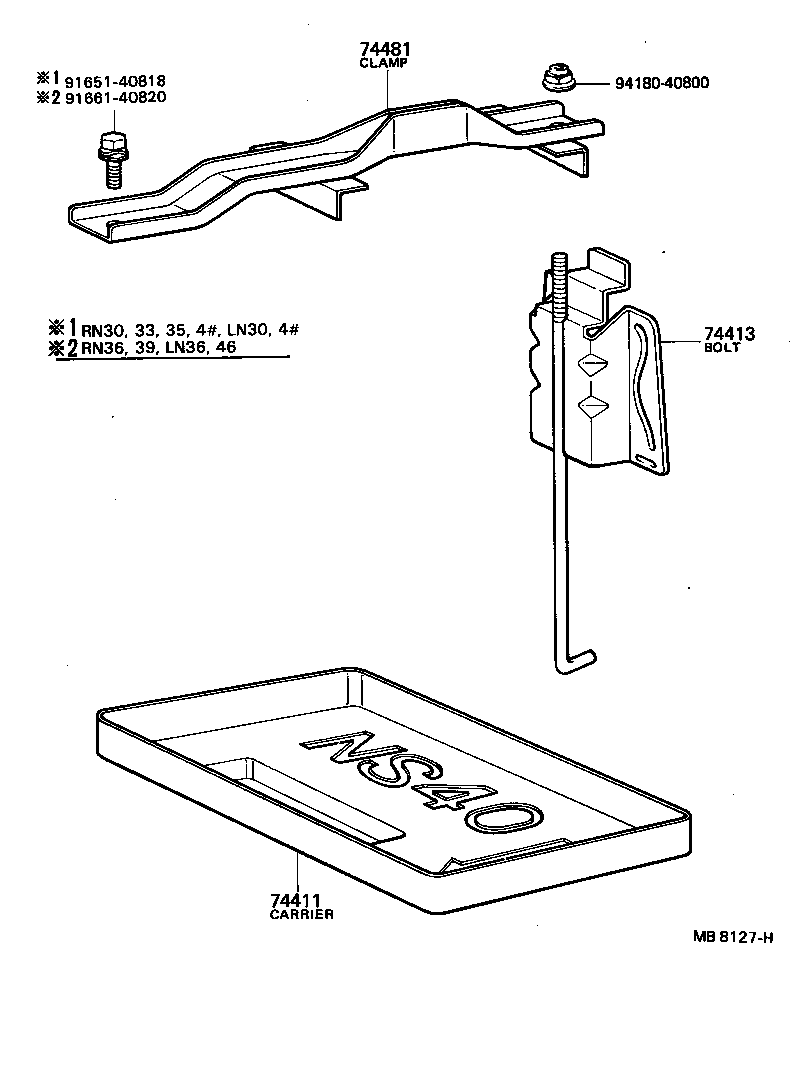

Click highlighted areas on diagram

diagram 74411 74413 74481 9165140818 9166140820 9418040800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-89102

RN3#,4#

34B19R(NS40ZA)

 1
74431-89103

RN3#,4#

COLD SPEC,48D26R(N50)

 1
74413 - BOLT, BATTERY CLAMP
74407-89105

RN3#,4#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-89104

RN3#,4#

34B19R(NS40ZA)

 1
74404-89105

RN3#,4#

COLD SPEC,48D26R(N50)

 1
Common parts
91651-40818
91661-40820
94180-40800
