RN40-JDSJ3 (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

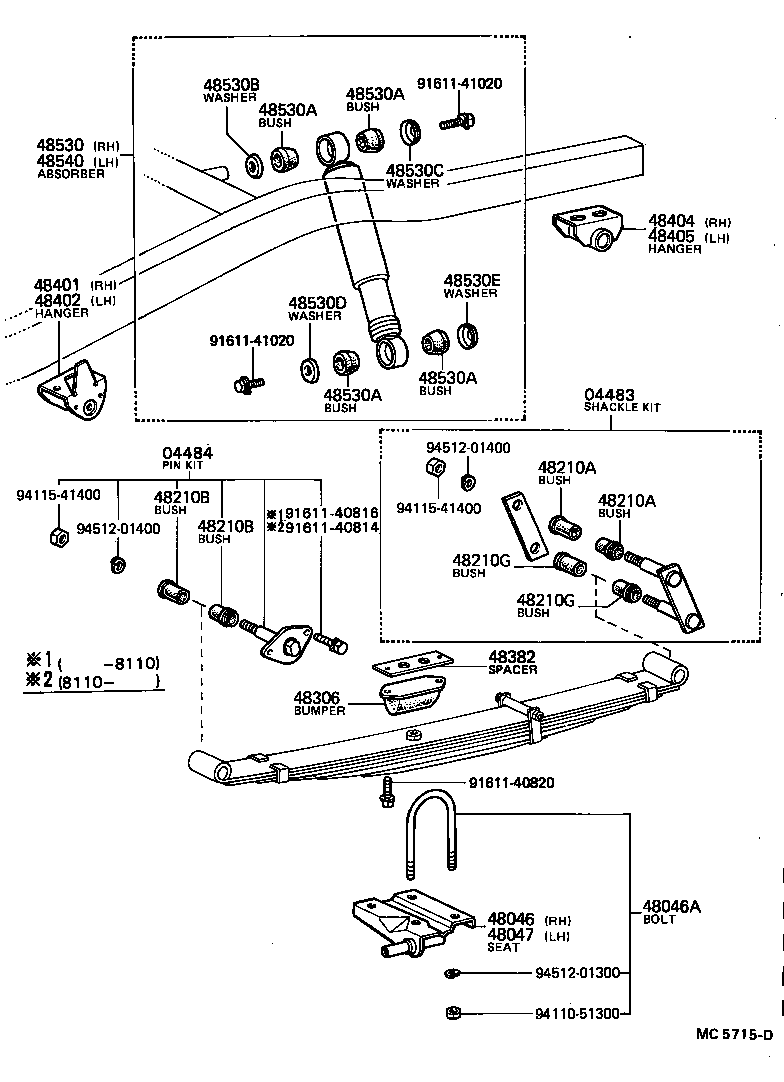

ILLUST NO. 1 OF 2(7808- )LN30,40,41,RN30,33,35,4#

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48306 48382 48401 48402 48404 48405 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9161140814 9161140816 9161140820 9161141020 9161141020 9411051300 9411541400 9411541400 9451201300 9451201400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26010

LN3#,4#,RN3#,4#

 2
04484 - PIN KIT, REAR SPRING
04484-27010

LN3#,4#,RN3#,4#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35050

LN30,40,41,RN30,33,35,4#

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-13091

LN30,40,41,RN30,33,35,4#

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-35050

LN30,40,41,RN30,33,35,4#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN3#,4#,RN3#,4#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN3#,4#,RN3#,4#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LN3#,4#,RN3#,4#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LN3#,4#,RN3#,4#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN3#,4#,RN3#,4#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN3#,4#,RN3#,4#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-35020

LN30,40,41,RN30,33,35,4#

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35050

LN3#,4#,RN3#,4#

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-35050

LN3#,4#,RN3#,4#

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35050

LN3#,4#,RN3#,4#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35050

LN3#,4#,RN3#,4#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39325

LN30,40,41,RN30,33,35,4#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

LN3#,4#,RN3#,4#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

LN3#,4#,RN3#,4#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LN3#,4#,RN3#,4#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LN3#,4#,RN3#,4#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39325

LN30,40,41,RN30,33,35,4#

 1
Common parts
91611-40814
91611-40816
91611-40820
91611-41020
94110-51300
94115-41400
94512-01300
94512-01400

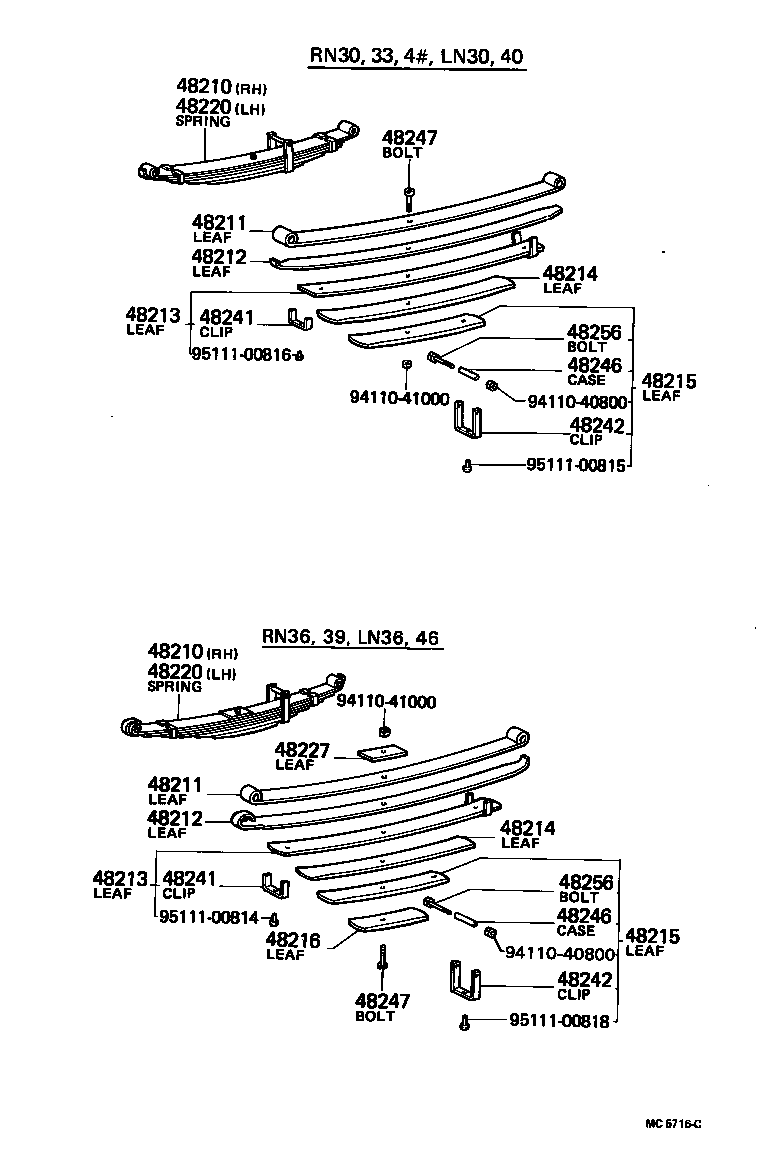

ILLUST NO. 2 OF 2(7808- )LN3#,4#,RN30,33,36,39,4#

Click highlighted areas on diagram

diagram 48210 48210 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48220 48220 48227 48241 48241 48242 48242 48246 48246 48247 48247 48256 48256 9411040800 9411040800 9411041000 9411041000 9511100814 9511100815 9511100816 9511100818
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35200

RN30,40

 1
48210 - SPRING ASSY, REAR RH
48210-35200

RN30,40

 1
48211 - LEAF, REAR SPRING, NO.1
48211-35200

RN30,40

 2
48211 - LEAF, REAR SPRING, NO.1
48211-35200

RN30,40

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35200

RN30,40

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35200

RN30,40

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35200

RN30,40

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35200

RN30,40

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35200

RN30,40

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35200

RN30,40

 2
48215 - LEAF, REAR SPRING, NO.5
48203-35200

RN30,40

 2
48215 - LEAF, REAR SPRING, NO.5
48203-35200

RN30,40

 2
48220 - SPRING ASSY, REAR LH
48210-35200

RN30,40

 1
48220 - SPRING ASSY, REAR LH
48210-35200

RN30,40

 1
48241 - CLIP, REAR SPRING, NO.1
48241-35120

LN30,40,RN30,33,35,4#

 4
48241 - CLIP, REAR SPRING, NO.1
48241-35120

LN30,40,RN30,33,35,4#

 4
48242 - CLIP, REAR SPRING, NO.2
48242-35120

LN30,40,RN30,33,35,4#

 2
48242 - CLIP, REAR SPRING, NO.2
48242-35120

LN30,40,RN30,33,35,4#

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN30,40,41,RN30,33,35,4#

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN30,40,41,RN30,33,35,4#

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35070

LN30,40,41,RN30,33,35,4#

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35070

LN30,40,41,RN30,33,35,4#

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN30,40,41,RN30,33,35,4#

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN30,40,41,RN30,33,35,4#

 2
Common parts
94110-40800
94110-41000
95111-00814
95111-00815
95111-00816
95111-00818
