RN40-JDSJ (1978)
Toyota Hilux
Production
Aug 1978
-
Dec 1979
Engine
12RJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

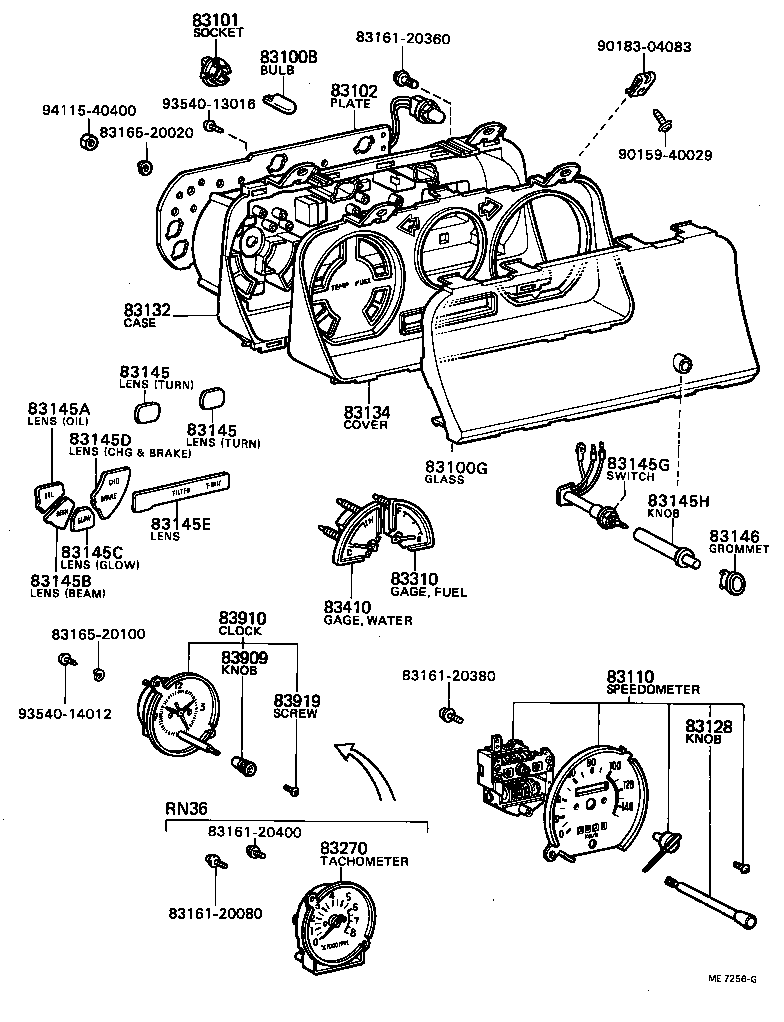

ILLUST NO. 1 OF 3(7808-8110)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN3#,4#,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89131 |
RN3#,4# W/CLOCK |
1 | ||
| 83138-89130 |
RN3#,4#..DLX,STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN3#,4#,RN3#,4# 12V,BULB=3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89130 |
RN3#,4# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89130 |
RN3#,4# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89130 |
LN3#,4#,RN3#,4# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89130 |
RN3#,4# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89131 |
RN3#,4# W/CLOCK OR TACHOMETER |
1 | ||
| 83134-89130 |
RN3#,4#..DLX,STD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN30,40,RN3#,4# |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN30,40,RN3#,4# |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89113 |
LN30,40,RN3#,4# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89112 |
LN30,40,RN3#,4# |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89111 |
LN30,40,RN3#,4# |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-89118 |
RN30,33,4# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN30,40,RN3#,4# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89130 |
RN3#,40 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
RN3#,4# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89102 |
RN3#,4# |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
LN36,46,RN30,33,36,39,40,43 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20360 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20020 | ||||
| 83165-20100 | ||||
| 90159-40029 | ||||
| 90183-04083 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
| 94115-40400 | ||||

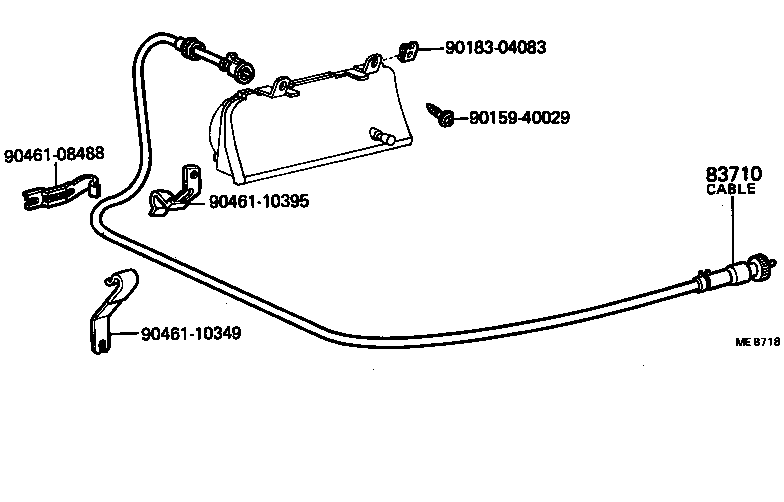

ILLUST NO. 3 OF 3(7808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89115 |
RN30,40 |
1 | ||
| Common parts | ||||
| 90159-40029 | ||||
| 90183-04083 | ||||
| 90461-08488 | ||||
| 90461-10349 | ||||
| 90461-10395 | ||||
