Toyota Hilux RN40 FRONT DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26010	LN30,40,RN30,33,35,4#..DLX,SDX	08/1978 - 12/1982	1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26020	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 02/1981	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12010	LN30,40,41,RN30,33,35,4#..DLX,SDX *12−1.25PX50−26	08/1978 - 09/1988	4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	LN3#,4#,RN3#,4#..DLX,SDX	08/1978 - 09/1988	2
47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT
47719-29015	LN30,40,RN30,33,4#..DLX,SDX LWR	08/1978 - 10/1981	2
47718-29015	LN30,40,RN30,33,4#..DLX,SDX UPR	08/1978 - 10/1981	2
47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT
47719-29015	LN30,40,RN30,33,4#..DLX,SDX LWR	08/1978 - 10/1981	2
47718-29015	LN30,40,RN30,33,4#..DLX,SDX UPR	08/1978 - 10/1981	2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26010	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 10/1981	1
47731 - PISTON, FRONT DISC BRAKE
47731-26010	LN30,40,RN30,33,35,4#..DLX,SDX	08/1978 - 12/1982	2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-26010	LN30,40,RN30,33,35,4#..DLX,SDX	08/1978 - 12/1982	2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26010	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 02/1981	2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26010	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 10/1981	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90102-12065	LN30,40,RN30,33,4#..DLX,SDX *12-1.25PX58.5-20	08/1978 - 08/1980	2
90114-12138	LN30,40,RN30,33,4#..DLX,SDX SERRATION	08/1978 - 08/1980	2
47781B - BOLT(FOR DUST COVER SETTING)
91611-40828	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	4
47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
94145-71200	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26010	LN30,40,41,RN30,33,35,4#..DLX,SDX	08/1978 - 09/1988	1
Common parts
90101-10019
93381-16008
94512-01200
94531-01000
94531-01200
95381-03025

RN40-JDSJ (1978)

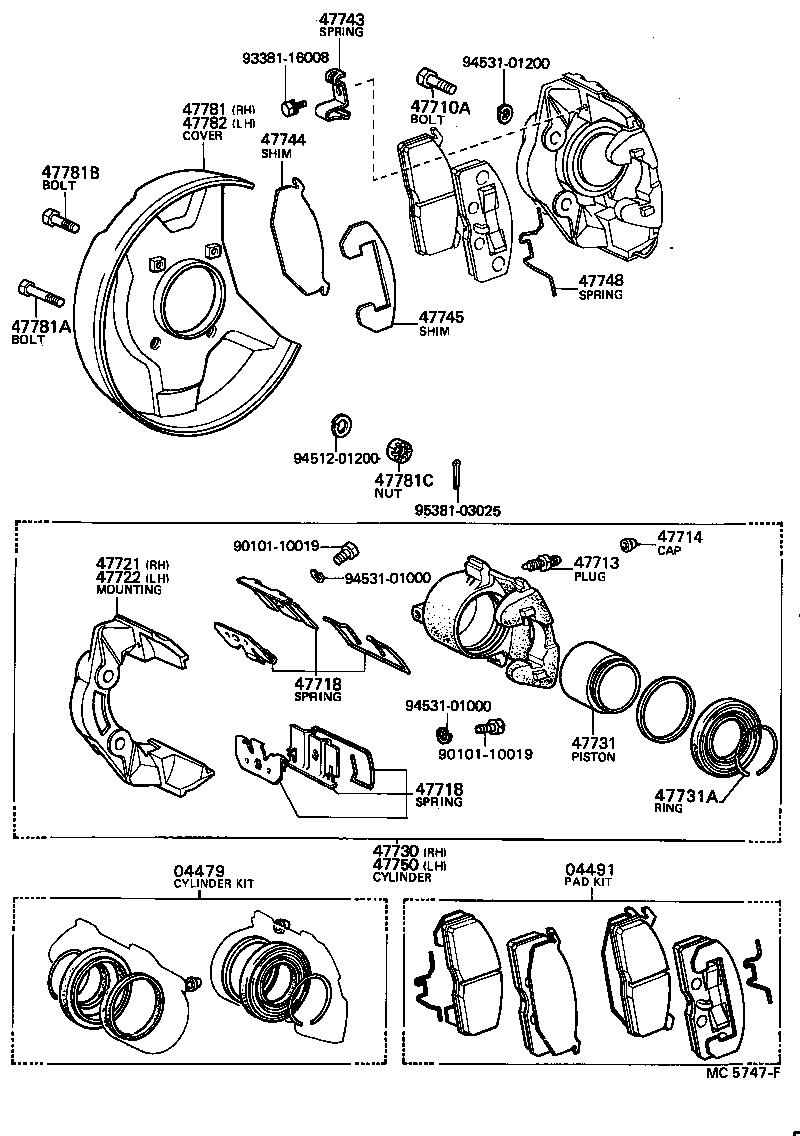

ILLUST NO. 1 OF 2(7808- )LN30,40,41,RN30,33,35,4#..DLX,SDX

ILLUST NO. 2 OF 2(7808- )LN30,40,41,RN30,33,35,4#..DLX,SDX ; (7910-8310)LN36,46,RN36,39

Part Price Details

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26190	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 02/1981	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26080	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 02/1981	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26070	LN30,40,RN30,33,4#..DLX,SDX	08/1978 - 02/1981	1
