RN40-JDSJ (1978)

Toyota Hilux

Production Aug 1978 - Dec 1979
Engine 12RJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12RJ,18RJ

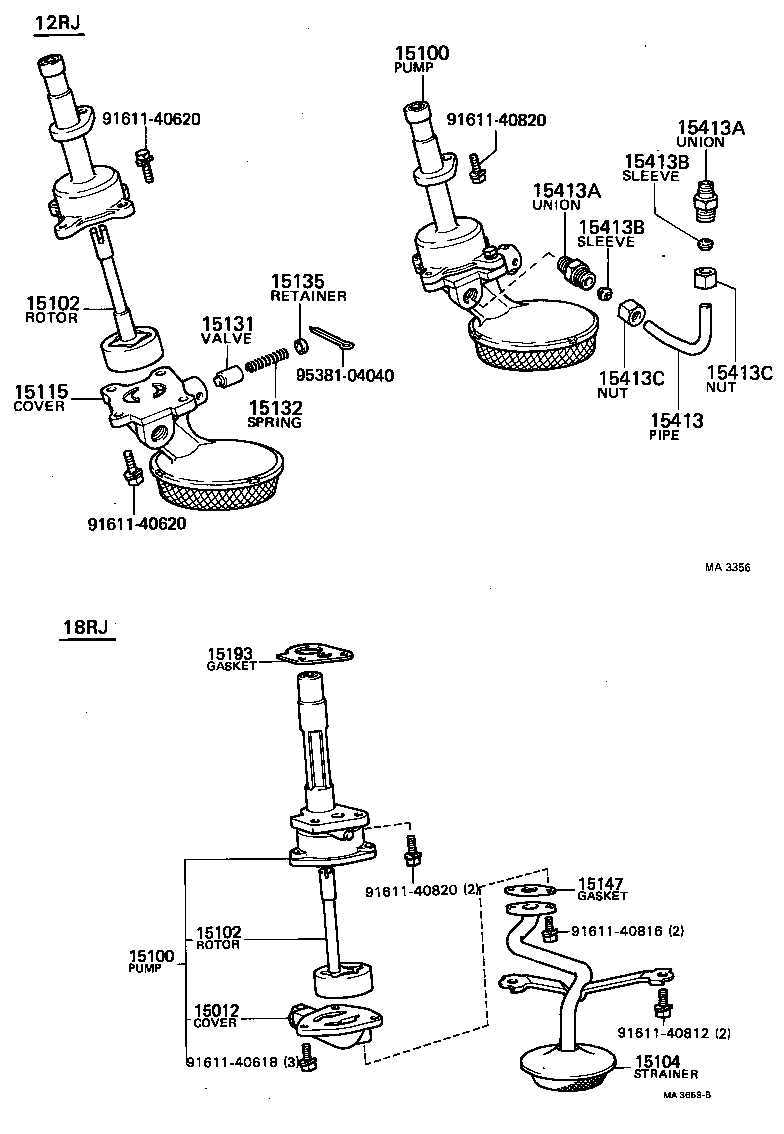

Click highlighted areas on diagram

MA3356,MA3659B

diagram 15012 15100 15100 15102 15102 15104 15115 15131 15132 15135 15147 15193 15413 15413A 15413A 15413B 15413B 15413C 15413C 9161140618 9161140620 9161140620 9161140812 9161140816 9161140820 9161140820 9538104040
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-31040

12RJ..RN30,33,35,4#

 1
15100 - PUMP ASSY, OIL
15100-31040

12RJ..RN30,33,35,4#

 1
15102 - ROTOR SET, OIL PUMP
15101-31010

12RJ..RN30,33,35,4#

 1
15102 - ROTOR SET, OIL PUMP
15101-31010

12RJ..RN30,33,35,4#

 1
15115 - COVER, OIL PUMP
15012-31040

12RJ..RN30,33,35,4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

12RJ..RN30,33,35,4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

12RJ..RN30,33,35,4#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-13010

12RJ..RN30,33,35,4#

 1
15413 - PIPE, OIL PUMP OUTLET
15413-31010

12RJ..RN30,33,35,4#

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

12RJ..RN30,33,35,4#

 2
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

12RJ..RN30,33,35,4#

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

12RJ..RN30,33,35,4#

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

12RJ..RN30,33,35,4#

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

12RJ..RN30,33,35,4#

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

12RJ..RN30,33,35,4#

 2
Common parts
91611-40618
91611-40620
91611-40812
91611-40816
91611-40820
95381-04040
