RN40-JDSJ (1978)
Toyota Hilux
Production
Aug 1978
-
Dec 1979
Engine
12RJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )

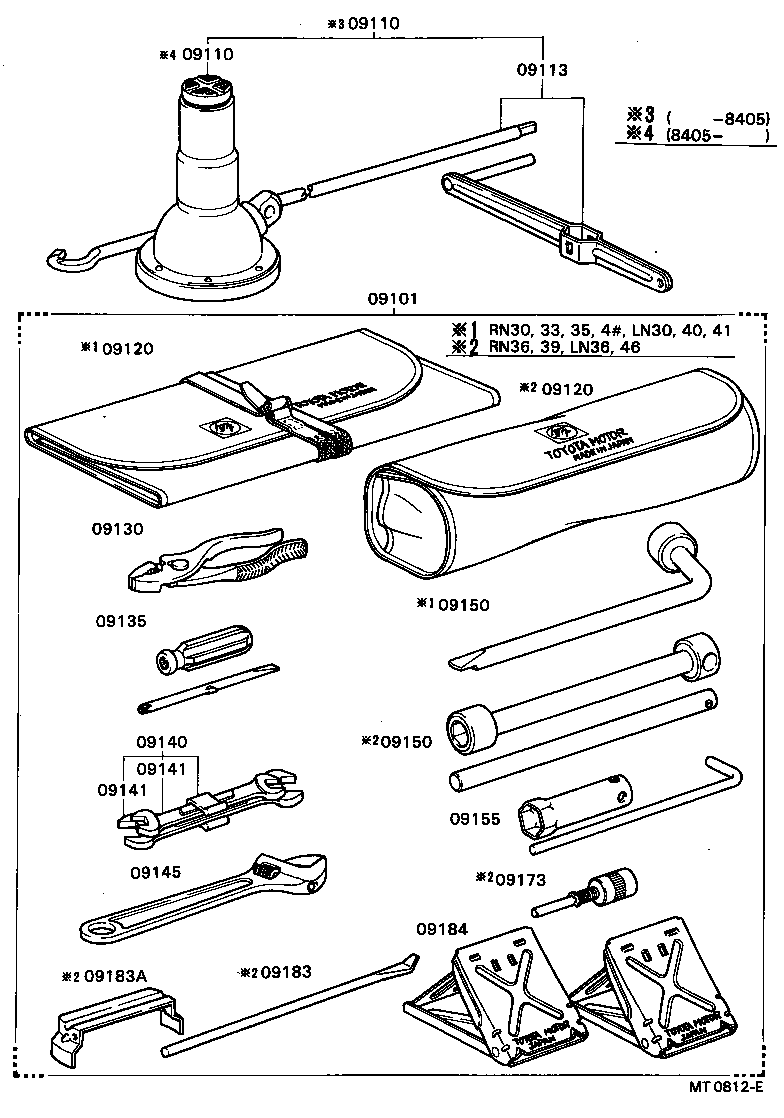

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09101-35090 |
RN30,40 |
1 | ||
| 09101-35070 |
RN30,40 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-35090 |
LN30,40,RN30,33,35,4#..T1 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-35090 |
LN30,40,RN30,33,35,4#..T1 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-35060 |
LN30,40,41,RN30,33,35,4#..T1 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-26021 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-26021 |
LN30,40,41,RN30,33,35,4# |
1 | ||
| 09130 - PLIERS | ||||
| 09130-00010 |
LN3#,4#,RN3#,4# |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
LN3#,40,46,RN3#,4# |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-27010 |
LN3#,40,46,RN3#,4# |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
LN3#,40,46,RN3#,4# 10 X 12,10X12 |
1 | ||
| 99914-11417 |
LN3#,40,46,RN3#,4# 14 X 17,14X17 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
LN3#,40,46,RN3#,4# 10 X 12,10X12 |
1 | ||
| 99914-11417 |
LN3#,40,46,RN3#,4# 14 X 17,14X17 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-10200 |
LN3#,40,46,RN3#,4# |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-30011 |
RN30,40 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-30011 |
RN30,40 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-36010 |
RN30,40 |
1 | ||
| 09155-44020 |
RN30,40 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
LN30,40,41,RN30,33,35,4# |
2 | ||
