RN39-KD (1981)

Toyota Hilux

Production Oct 1981 - Oct 1983
Engine 18RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8110-8310)LN36,46,RN39

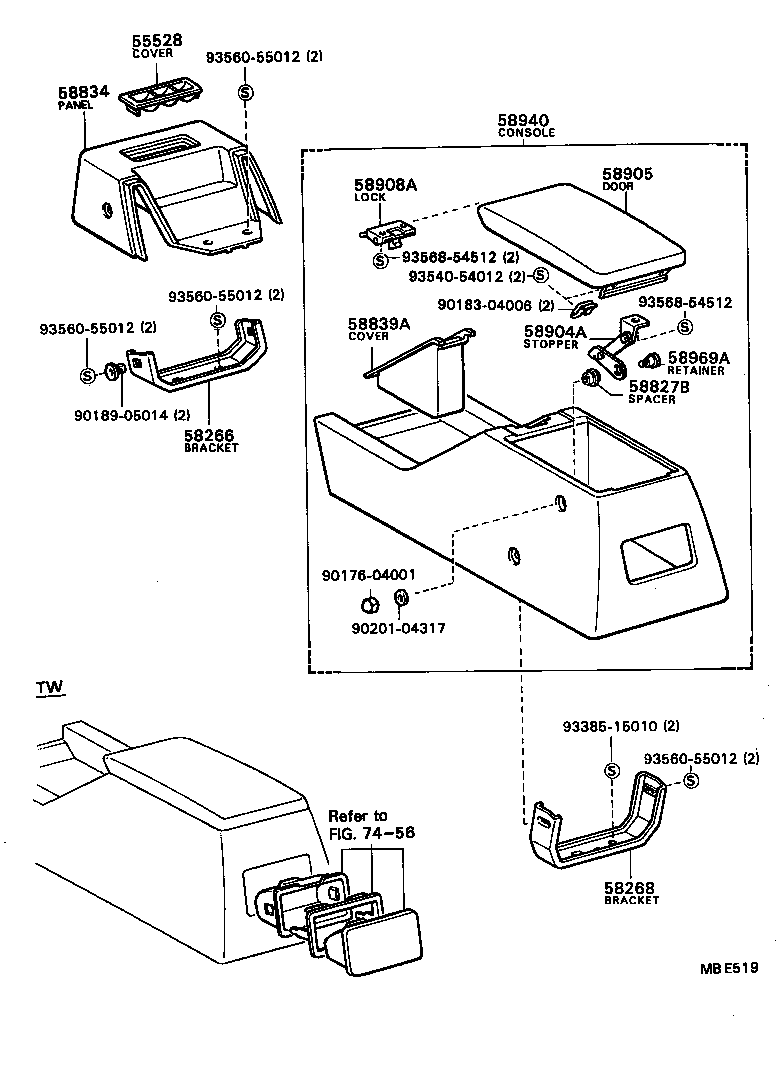

Click highlighted areas on diagram

diagram 55528 58266 58268 58827B 58834 58839A 58904A 58905 58908A 58940 58969A 7456 9017604001 9018304006 9018905014 9020104317 9338515010 9354054012 9356055012 9356055012 9356055012 9356055012 9356854512 9356854512
Part # Description Qty Price
55528 - COVER, AUTO DRIVE OPENING
55528-1403006

LN36,46,RN39

BROWN,BROWN,TRIM4#

 1
55528-1403001

LN36,46,RN39

BLACK,BLACK,TRIM2#

 1
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-95110

LN36,46,RN39

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58996-95111

LN36,46,RN39

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

LN36,46,RN39

 1
58834 - PANEL, CONSOLE END
58912-9511001

LN36,46,RN39

BLACK,BLACK,TRIM2#

 1
58912-9511006

LN36,46,RN39

BROWN,BROWN,TRIM4#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-9511001

LN36,46,RN39

BLACK,BLACK,TRIM2#

 1
58839-9511006

LN36,46,RN39

BROWN,BROWN,TRIM4#

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58904-22020

LN36,46,RN39

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1403001

LN36,46,RN39

BLACK,BLACK,TRIM2#

 1
58905-1403016

LN36,46,RN39

BROWN,BROWN,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

LN36,46,RN39

 1
58940 - CONSOLE ASSY, REAR
58801-9511206

LN36,46,RN39

BROWN,BROWN,TRIM4#

 1
58801-9511201

LN36,46,RN39

BLACK,BLACK,TRIM2#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

LN36,46,RN39

 1
Common parts
90176-04001
90183-04006
90189-05014
90201-04317
93385-15010
93540-54012
93560-55012
93568-54512
Linked diagrams
7456
