RN36-KDW (1979)
Toyota Hilux
Production
Oct 1979
-
Oct 1981
Engine
18RJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

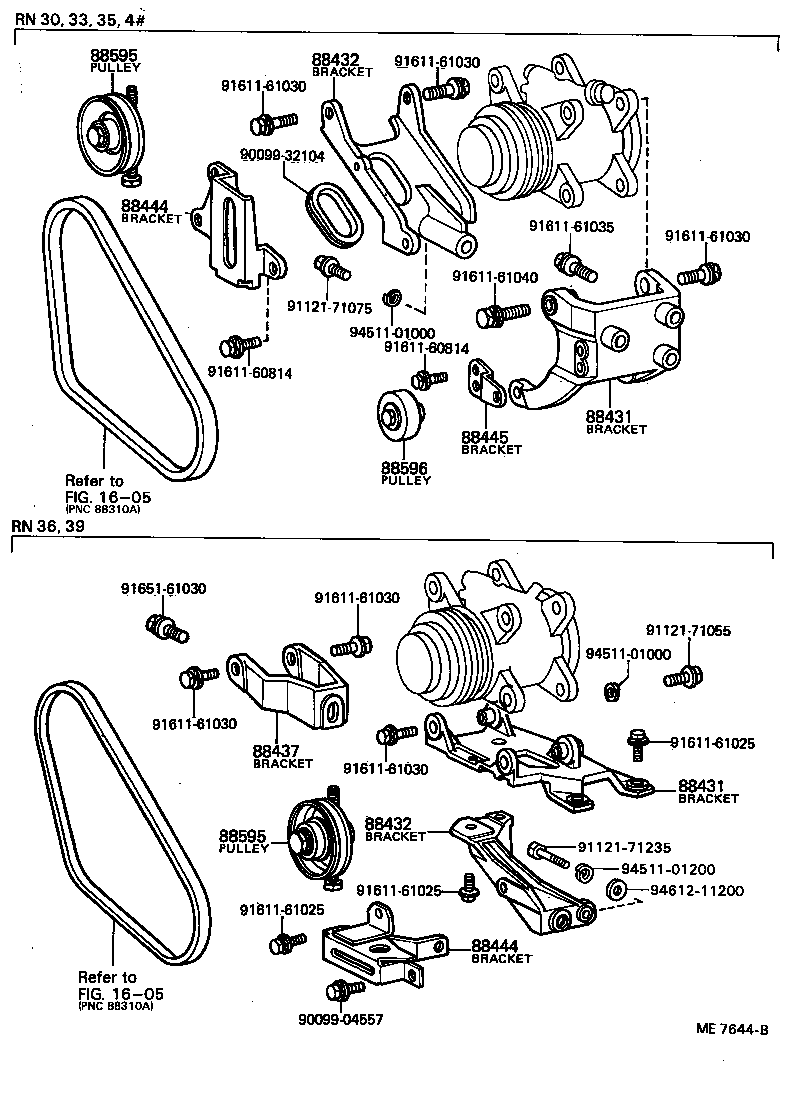

ILLUST NO. 2 OF 2(7910- )RN3#,4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35010 |
RN30,33,35,4# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35010 |
RN30,33,35,4# |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-35020 |
RN30,33,35,4# |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-35020 |
RN30,33,35,4# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35010 |
RN30,33,35,4# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35010 |
RN30,33,35,4# |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-35020 |
RN30,33,35,4# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN3#,4# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN3#,4# |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-20060 |
RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 90099-04557 | ||||
| 90099-32104 | ||||
| 91121-71055 | ||||
| 91121-71075 | ||||
| 91121-71235 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91651-61030 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
| 94612-11200 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 2(7912- )LN3#,4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35010 |
RN30,33,35,4# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35010 |
RN30,33,35,4# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35010 |
RN30,33,35,4# |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-35020 |
RN30,33,35,4# |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-35020 |
RN30,33,35,4# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN3#,4# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN3#,4# |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-20060 |
RN30,33,35,4# |
1 | ||
| Common parts | ||||
| 88469-25010 | ||||
| 88890-89105 | ||||
| 90099-04927 | ||||
| 90201-10108 | ||||
| 91121-60850 | ||||
| 91121-60880 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91611-61230 | ||||
| 91651-60840 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 1605 | ||||
