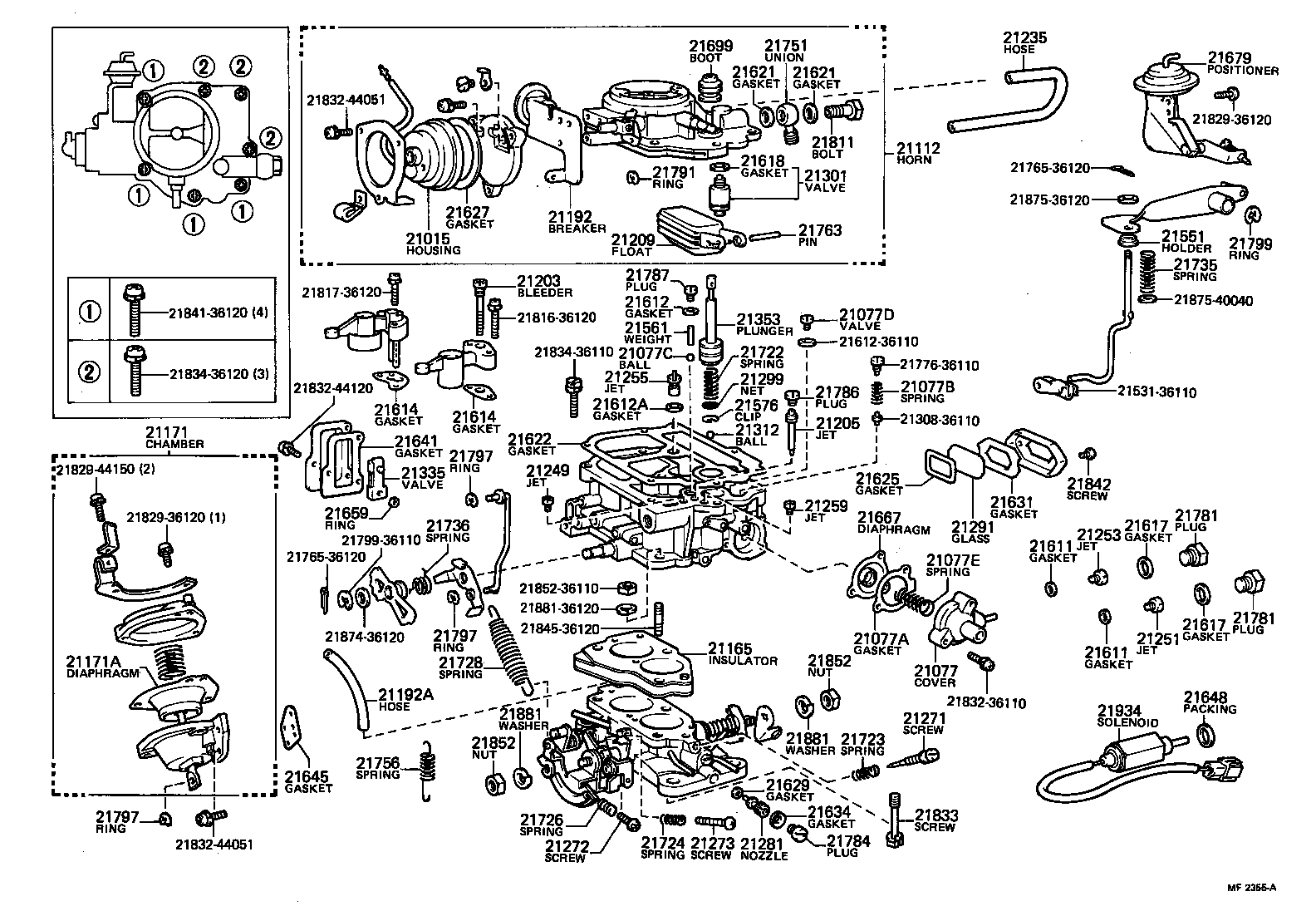

RN36-KDW (1979)
Toyota Hilux
(7910-8110)18RJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21141-34400 |
18RJ..RN36 |
1 | ||
| 21077 - COVER(FOR AUXILIARY ACCELERATION PUMP) | ||||
| 21399-34400 |
18RJ..RN36 |
1 | ||
| 21077A - GASKET(FOR AUXILIARY ACCELERATION PUMP) | ||||
| 21638-36110 |
18RJ..RN36 |
1 | ||
| 21077C - BALL, STEEL(FOR AUXILIARY ACCELERATION PUMP) | ||||
| 21312-40020 |
18RJ..RN36 |
1 | ||
| 21077D - VALVE, CHECK(FOR AUXILIARY ACCELERATION PUMP) | ||||
| 21308-34400 |
18RJ..RN36 |
1 | ||
| 21077E - SPRING(FOR AUXILIARY ACCELERATION PUMP COVER) | ||||
| 21747-36110 |
18RJ..RN36 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21012-34630 |
18RJ..RN36 |
1 | ||
| 21165 - INSULATOR | ||||
| 21106-34420 |
18RJ..RN36 |
1 | ||
| 21171 - CHAMBER, DIAPHRAGM | ||||
| 21171-34630 |
18RJ..RN36 |
1 | ||
| 21171A - DIAPHRAGM(FOR DIDPHRAGM CHAMBER) | ||||
| 21173-36120 |
18RJ..RN36 |
1 | ||
| 21192 - BREAKER | ||||
| 21502-36110 |
18RJ..RN36 |
1 | ||
| 21192A - HOSE, NO.1(FOR BREAKER) | ||||
| 95411-19930 |
18RJ..RN36 *H,L=120 |
1 | ||
| 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR | ||||
| 21203-34630 |
18RJ..RN36 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-34400 |
18RJ..RN36 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-36120 |
18RJ..RN36 |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 95411-19930 |
18RJ..RN36 *H,L=120 |
1 | ||
| 21249 - JET, AIR BLEED, NO.2 | ||||
| 21249-44280 |
18RJ..RN36 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-34630 |
18RJ..RN36 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-34400 |
18RJ..RN36 |
1 | ||
| 21255 - JET, POWER | ||||
| 21302-44122 |
18RJ..RN36 |
1 | ||
| 21259 - JET, AIR BLEED | ||||
| 21259-34400 |
18RJ..RN36 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-34400 |
18RJ..RN36 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21833-36110 |
18RJ..RN36 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-34401 |
18RJ..RN36 |
1 | ||
| 21281 - NOZZLE, IDLE | ||||
| 21281-36110 |
18RJ..RN36 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-36120 |
18RJ..RN36 |
1 | ||
| 21299 - NET, PUMP FILTER | ||||
| 21299-36120 |
18RJ..RN36 |
1 | ||
| 21312 - BALL, STEEL | ||||
| 21312-40020 |
18RJ..RN36 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21038-34630 |
18RJ..RN36 |
1 | ||
| 21551 - HOLDER, BACK SPRING | ||||
| 21551-36120 |
18RJ..RN36 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-36120 |
18RJ..RN36 |
1 | ||
| 21576 - CLIP, PUMP STRAINER | ||||
| 21576-36120 |
18RJ..RN36 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21611-40021 |
18RJ..RN36 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21611-40021 |
18RJ..RN36 |
2 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-36120 |
18RJ..RN36 |
1 | ||
| 21612A - GASKET, POWER JET | ||||
| 21612-31100 |
18RJ..RN36 |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-36120 |
18RJ..RN36 1ST |
1 | ||
| 21639-36120 |
18RJ..RN36 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-36120 |
18RJ..RN36 1ST |
1 | ||
| 21639-36120 |
18RJ..RN36 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21633-44150 |
18RJ..RN36 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21633-44150 |
18RJ..RN36 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21643-36110 |
18RJ..RN36 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21637-36120 |
18RJ..RN36 |
2 | ||
| 21633-24030 |
12RJ,18RJ..RN30,33,35,39,4# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21637-36120 |
18RJ..RN36 |
2 | ||
| 21633-24030 |
12RJ,18RJ..RN30,33,35,39,4# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-36120 |
18RJ..RN36 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
12RJ,18RJ..RN30,33,35,39,4# |
1 | ||
| 21625-36120 |
18RJ..RN36 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21642-36110 |
18RJ..RN36 |
1 | ||
| 21629 - GASKET, IDLE NOZZLE | ||||
| 21626-36110 |
18RJ..RN36 |
1 | ||
| 21631 - GASKET, MAIN GUIDE | ||||
| 21631-36120 |
18RJ..RN36 |
1 | ||
| 21634 - GASKET, SLOW PASSAGE PLUG | ||||
| 21634-36120 |
18RJ..RN36 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21626-36120 |
18RJ..RN36 |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21638-36120 |
18RJ..RN36 |
1 | ||
| 21645-33080 |
12RJ,18RJ..RN30,33,35,39,4# |
1 | ||
| 21648 - PACKING(FOR SLOW VALVE COVER) | ||||
| 21637-36120 |
18RJ..RN36 |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21655-31100 |
18RJ..RN36 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21173-36110 |
18RJ..RN36 |
1 | ||
| 21679 - POSITIONER | ||||
| 21099-36110 |
18RJ..RN36 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21656-36110 |
18RJ..RN36 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21735-36120 |
18RJ..RN36 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-30030 |
18RJ..RN36 |
1 | ||
| 21723-21030 |
12RJ,18RJ..RN30,33,35,39,4# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21724-30030 |
18RJ..RN36 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-30030 |
18RJ..RN36 |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21728-34630 |
18RJ..RN36 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21722-36120 |
18RJ..RN36 |
1 | ||
| 21736 - SPRING, 1ST IDLE CAM | ||||
| 21748-36110 |
18RJ..RN36 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-36200 |
18RJ..RN36 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21727-36120 |
18RJ..RN36 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21768-36110 |
18RJ..RN36 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
18RJ..RN36 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
18RJ..RN36 |
2 | ||
| 21784 - PLUG, SLOW PASSAGE | ||||
| 21787-36110 |
18RJ..RN36 |
1 | ||
| 21786 - PLUG, PUMP PASSAGE | ||||
| 21787-36120 |
18RJ..RN36 |
1 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21787-31030 |
18RJ..RN36 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12RJ,18RJ..RN30,33,35,39,4# |
10 | ||
| 21797-44050 |
18RJ..RN36 |
1 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
18RJ..RN36 |
3 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
18RJ..RN36 |
3 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
18RJ..RN36 |
3 | ||
| 21799 - RING, E, TOP | ||||
| 21799-40020 |
18RJ..RN36 |
1 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-36110 |
18RJ..RN36 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21804-36120 |
18RJ..RN36 |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21832-36120 |
18RJ..RN36 |
2 | ||
| 21842-33010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-36120 |
18RJ..RN36 |
2 | ||
| 21852-30010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-36120 |
18RJ..RN36 |
2 | ||
| 21852-30010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
18RJ..RN36 |
2 | ||
| 21881-60010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
18RJ..RN36 |
2 | ||
| 21881-60010 |
12RJ,18RJ..RN30,33,35,39,4# |
2 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21391-36110 |
18RJ..RN36 |
1 | ||
| Common parts | ||||
| 21308-36110 | ||||
| 21531-36110 | ||||
| 21612-36110 | ||||
| 21765-36120 | ||||
| 21776-36110 | ||||
| 21799-36110 | ||||
| 21816-36120 | ||||
| 21817-36120 | ||||
| 21829-36120 | ||||
| 21829-44150 | ||||
| 21832-36110 | ||||
| 21832-44051 | ||||
| 21832-44120 | ||||
| 21834-36110 | ||||
| 21834-36120 | ||||
| 21841-36120 | ||||
| 21845-36120 | ||||
| 21852-36110 | ||||
| 21874-36120 | ||||
| 21875-36120 | ||||
| 21875-40040 | ||||
| 21881-36120 | ||||
