RN36-KDW (1979)

Toyota Hilux

Production Oct 1979 - Oct 1981
Engine 18RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8110)18RJ

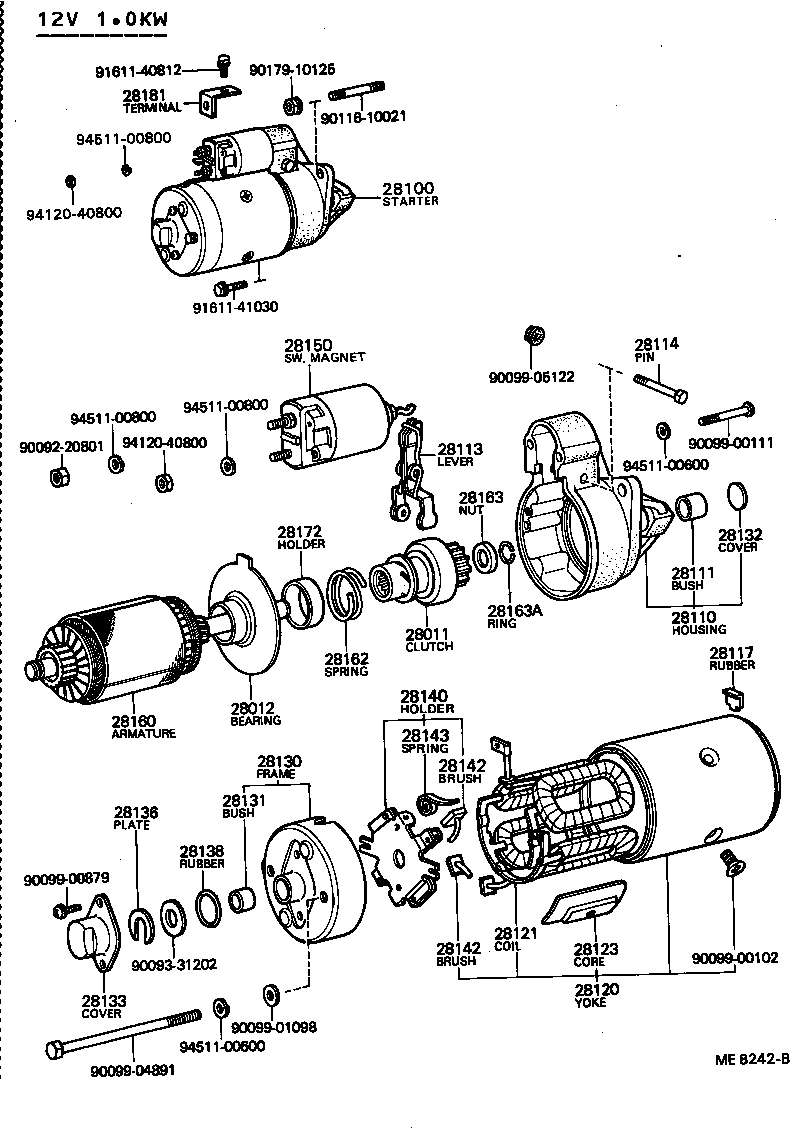

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28172 28181 9009220801 9009331202 9009900102 9009900111 9009900879 9009901098 9009904891 9009905122 9011610021 9017910125 9161140812 9161141030 9412040800 9412040800 9451100600 9451100600 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

18RJ..RN36

12V 1.0KW

 1
28012 - BEARING SUB-ASSY, CENTER
28126-33021

18RJ..RN36

12V 1.0KW

 1
28100 - STARTER ASSY
28100-34070

18RJ..RN36

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40061

18RJ..RN36

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28111-51011

18RJ..RN36

12V 1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

18RJ..RN36

12V 1.0KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

18RJ..RN36

12V 1.0KW

 1
28114-41011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41020

18RJ..RN36

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

18RJ..RN36

12V 1.0KW

 1
28121 - COIL, STARTER FIELD
28121-42020

18RJ..RN36

12V 1.0KW

 1
28121-34070

18RJ..RN36

12V 1.0KW

 1
28123 - CORE, STARTER POLE
28123-41020

18RJ..RN36

12V 1.0KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-41020

18RJ..RN36

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10040

18RJ..RN36

12V 1.0KW,U/S 0.5

 1
90099-10039

18RJ..RN36

12V 1.0KW,U/S 0.3

 1
28131-20010

18RJ..RN36

12V 1.0KW

 1
28131-20010

18RJ..RN36

12V 1.0KW,STD

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

18RJ..RN36

12V 1.0KW

 1
28136 - PLATE, STARTER LOCK
28136-40010

18RJ..RN36

12V 1.0KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

18RJ..RN36

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

18RJ..RN36

12V 1.0KW

 1
28142 - BRUSH, STARTER
28142-25020

18RJ..RN36

12V 1.0KW,YOKE

 2
28142-25021

18RJ..RN36

12V 1.0KW,HOLDER

 2
28142 - BRUSH, STARTER
28142-25020

18RJ..RN36

12V 1.0KW,YOKE

 2
28142-25021

18RJ..RN36

12V 1.0KW,HOLDER

 2
28143 - SPRING, STARTER BRUSH
28143-40010

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34070

18RJ..RN36

12V 1.0KW

 1
28150-33021

18RJ..RN36

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

18RJ..RN36

12V 1.0KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

12RJ,18RJ..RN3#,4#

12V 0.8KW,1.0KW

 1
28172 - HOLDER, STARTER SPRING
28172-41021

18RJ..RN36

12V 1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

18RJ..RN36

12V 0.8KW,1.0KW

 1
Common parts
90092-20801
90093-31202
90099-00102
90099-00111
90099-00879
90099-01098
90099-04891
90099-05122
90116-10021
90179-10125
91611-40812
91611-41030
94120-40800
94511-00600
94511-00800

(7912- )L,2L

Click highlighted areas on diagram

12V 2.5KW,24V 4.5KW

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28155 28160 28160A 28160A 28165 28191 28222 28228 28229 28252 9009221001 9009221001 9009900138 9009901436 9009902325 9009904297 9009912009 9011912019 9011912019 9017908026 9331915008 9411551200 9451100600 9451100600 9451101000 9461210800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

18RJ..RN36

12V 1.0KW

 1
28100 - STARTER ASSY
28100-34070

18RJ..RN36

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40061

18RJ..RN36

12V 1.0KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

L,12RJ,18RJ..LN30,40,RN33,36,43

12V 0.8KW,2.5KW,24V 4.5KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

18RJ..RN36

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-41020

18RJ..RN36

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

18RJ..RN36

12V 1.0KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-34070

18RJ..RN36

12V 1.0KW

 1
28150-33021

18RJ..RN36

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

18RJ..RN36

12V 1.0KW

 1
Common parts
90092-21001
90099-00138
90099-01436
90099-02325
90099-04297
90099-12009
90119-12019
90179-08026
93319-15008
94115-51200
94511-00600
94511-01000
94612-10800
