RN36-KDW (1979)
Toyota Hilux
Production
Oct 1979
-
Oct 1981
Engine
18RJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8002)18RJ

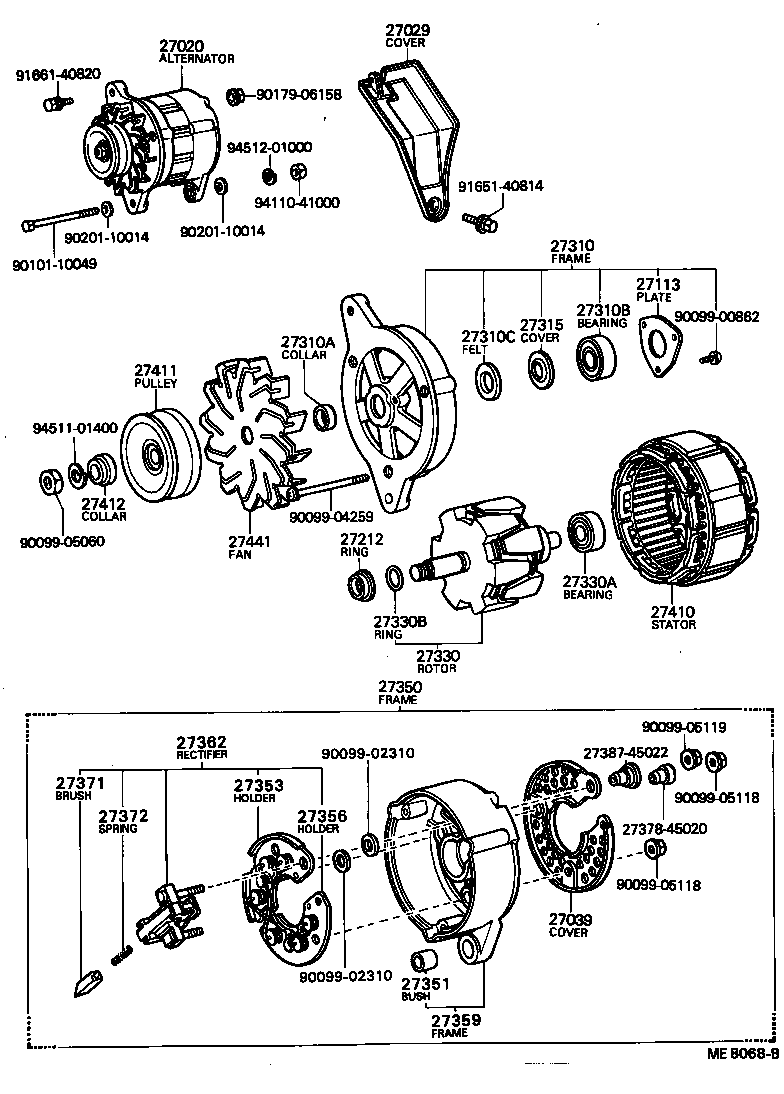

Click highlighted areas on diagram
12V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-36071 |
18RJ..RN36 12V 40A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-36010 |
18RJ..RN36 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-36070 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
18RJ..RN36 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-25010 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-26030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27362-15030 |
12RJ,18RJ..RN3#,43 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12RJ,18RJ..RN3#,4# 12V 30A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12RJ,18RJ..RN3#,4# 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90179-06158 | ||||
| 90201-10014 | ||||
| 91651-40814 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
(8311-8508)L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
