RN36-KDW (1979)

Toyota Hilux

Production Oct 1979 - Oct 1981
Engine 18RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8110)18RJ

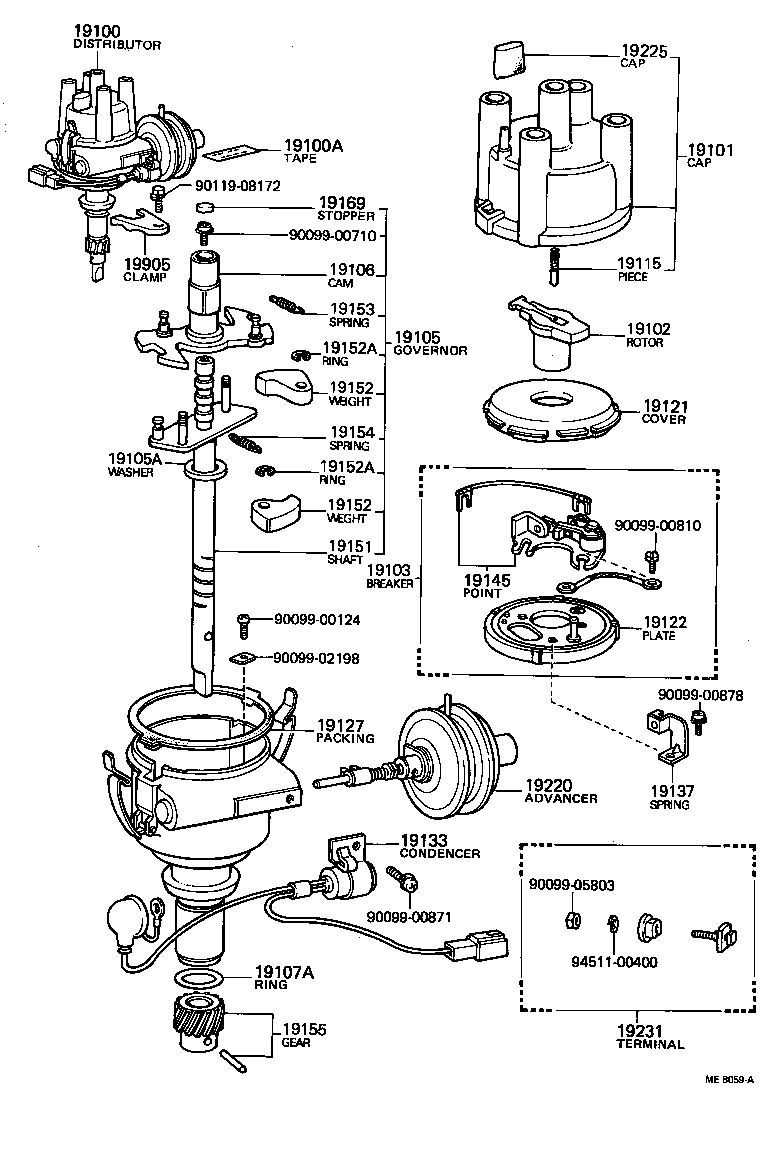

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19103 19105 19105A 19106 19107A 19115 19121 19122 19127 19133 19137 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19225 19231 19905 9009900124 9009900710 9009900810 9009900871 9009900878 9009902198 9009905803 9011908172 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-34280

18RJ..RN36

 1
19100A - TAPE, SEALING
90919-24004

12RJ,18RJ..RN3#,4#

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-33013

18RJ..RN36

 1
19105 - GOVERNOR SUB-ASSY
19105-34190

18RJ..RN36

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-34120

18RJ..RN36

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

12RJ,18RJ..RN3#,4#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

12RJ,18RJ..RN3#,4#

 1
19121 - COVER, DUST PROOF
19121-38030

18RJ..RN36

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-33013

18RJ..RN36

 1
19127 - PACKING, DUST PROOF
19127-88251

12RJ,18RJ..RN33,36,43

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52062

18RJ..RN36

 1
19137 - SPRING SUB-ASSY, DAMPER
19137-33012

18RJ..RN36

 1
19145 - POINT, DISTRIBUTOR
19145-26060

12RJ,18RJ..RN3#,4#

 1
19151 - SHAFT, GOVERNOR
19151-33011

18RJ..RN36

 1
19152 - WEIGHT, GOVERNOR
19152-45060

12RJ,18RJ..RN33,36,43

 2
19152 - WEIGHT, GOVERNOR
19152-45060

12RJ,18RJ..RN33,36,43

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

18RJ..RN36

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

18RJ..RN36

 2
19153 - SPRING, GOVERNOR, A
19153-34190

18RJ..RN36

 1
19154 - SPRING, GOVERNOR, B
19154-34190

18RJ..RN36

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-34280

18RJ..RN36

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

18RJ..RN36

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-02198
90099-05803
90119-08172
94511-00400
