RN36-KDW (1979)
Toyota Hilux
Production
Oct 1979
-
Oct 1981
Engine
18RJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8110)18RJ

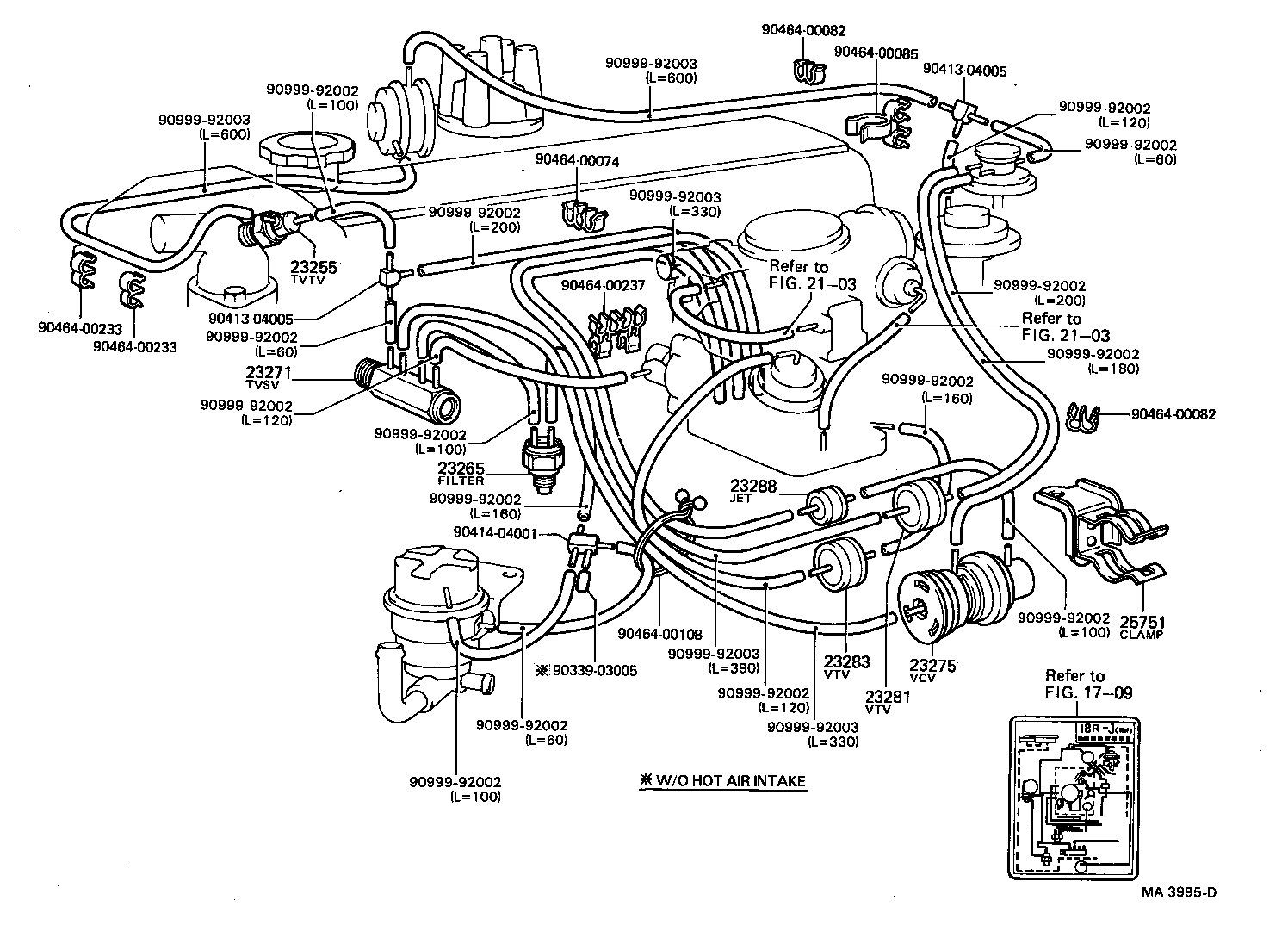

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01069 |
18RJ..RN36 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02059 |
18RJ..RN36 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01053 |
18RJ..RN36 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00085 | ||||
| 90464-00108 | ||||
| 90464-00233 | ||||
| 90464-00237 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
