RN36-KDW (1979)

Toyota Hilux

Production Oct 1979 - Oct 1981
Engine 18RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8110)18RJ

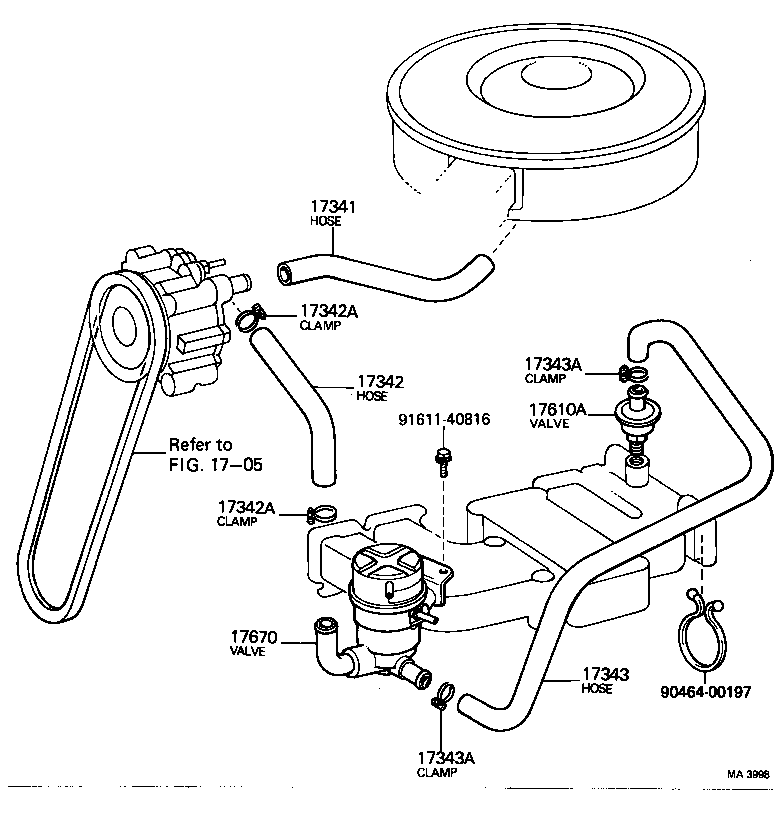

Click highlighted areas on diagram

diagram 1705 17341 17342 17342A 17342A 17343 17343A 17343A 17610A 17670 9046400197 9161140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-34030

18RJ..RN36

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-34020

18RJ..RN36

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18RJ..RN36

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18RJ..RN36

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-34021

18RJ..RN36

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18RJ..RN36

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18RJ..RN36

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10039

18RJ..RN36

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-34030

18RJ..RN36

 1
Common parts
90464-00197
91611-40816
Linked diagrams
1705
