RN36-KDW (1979)

Toyota Hilux

Production Oct 1979 - Oct 1981
Engine 18RJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8110)18RJ

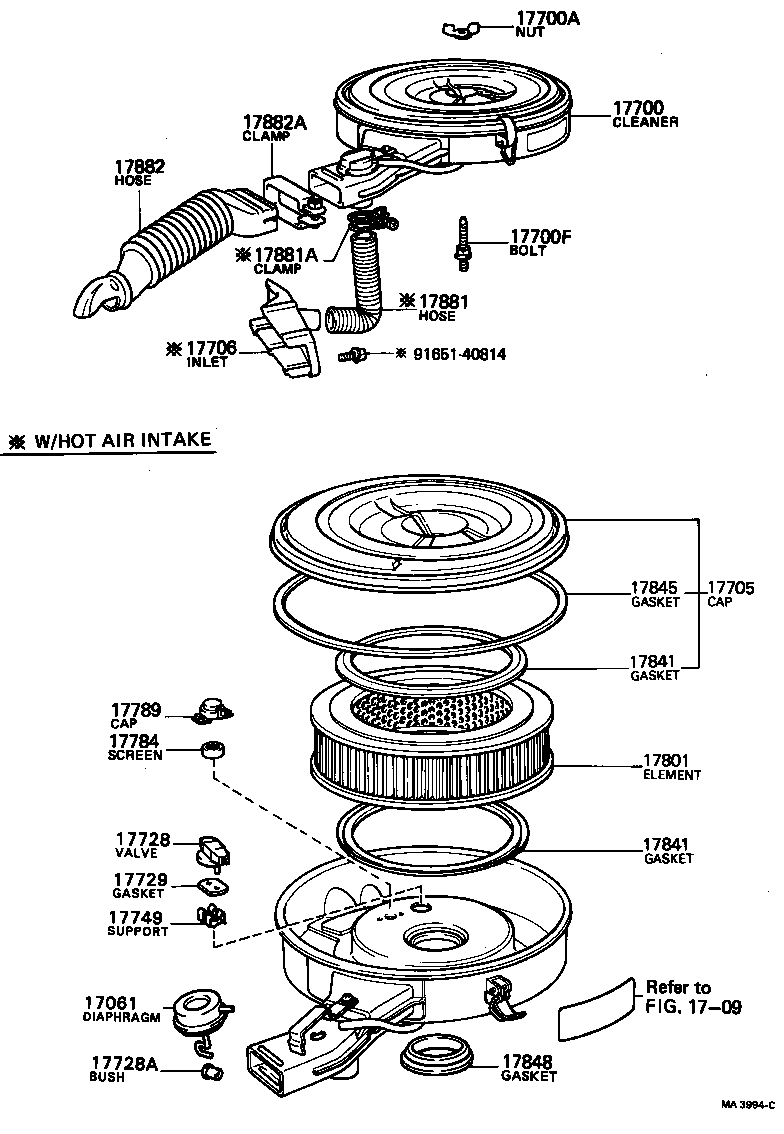

Click highlighted areas on diagram

diagram 17061 1709 17700 17700A 17700F 17705 17706 17728 17728A 17729 17749 17784 17789 17801 17841 17841 17845 17848 17881 17881A 17882 17882A 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-34620

18RJ..RN36

W/HOT AIR INTAKE

 1
17700-34610

18RJ..RN36

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

12RJ,18RJ..RN3#,4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34230

18RJ..RN36

 1
17784 - SCREEN, AIR CLEANER
17784-31010

12RJ,18RJ..RN3#,4#

 1
17789 - CAP, AIR CLEANER SCREEN
17789-31020

12RJ,18RJ..RN3#,4#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-95110

12RJ,18RJ..RN33,36,43

 1
Common parts
91651-40814
Linked diagrams
1709

(7912- )L,2L

Click highlighted areas on diagram

diagram 1709 17700 17705 17764 17801 17805 17841 17841 17845 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17897 9011908171 9017908143 9165140616 9165640616 9165640816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-34620

18RJ..RN36

W/HOT AIR INTAKE

 1
17700-34610

18RJ..RN36

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34230

18RJ..RN36

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-95110

12RJ,18RJ..RN33,36,43

 1
Common parts
90119-08171
90179-08143
91651-40616
91656-40616
91656-40816
Linked diagrams
1709
